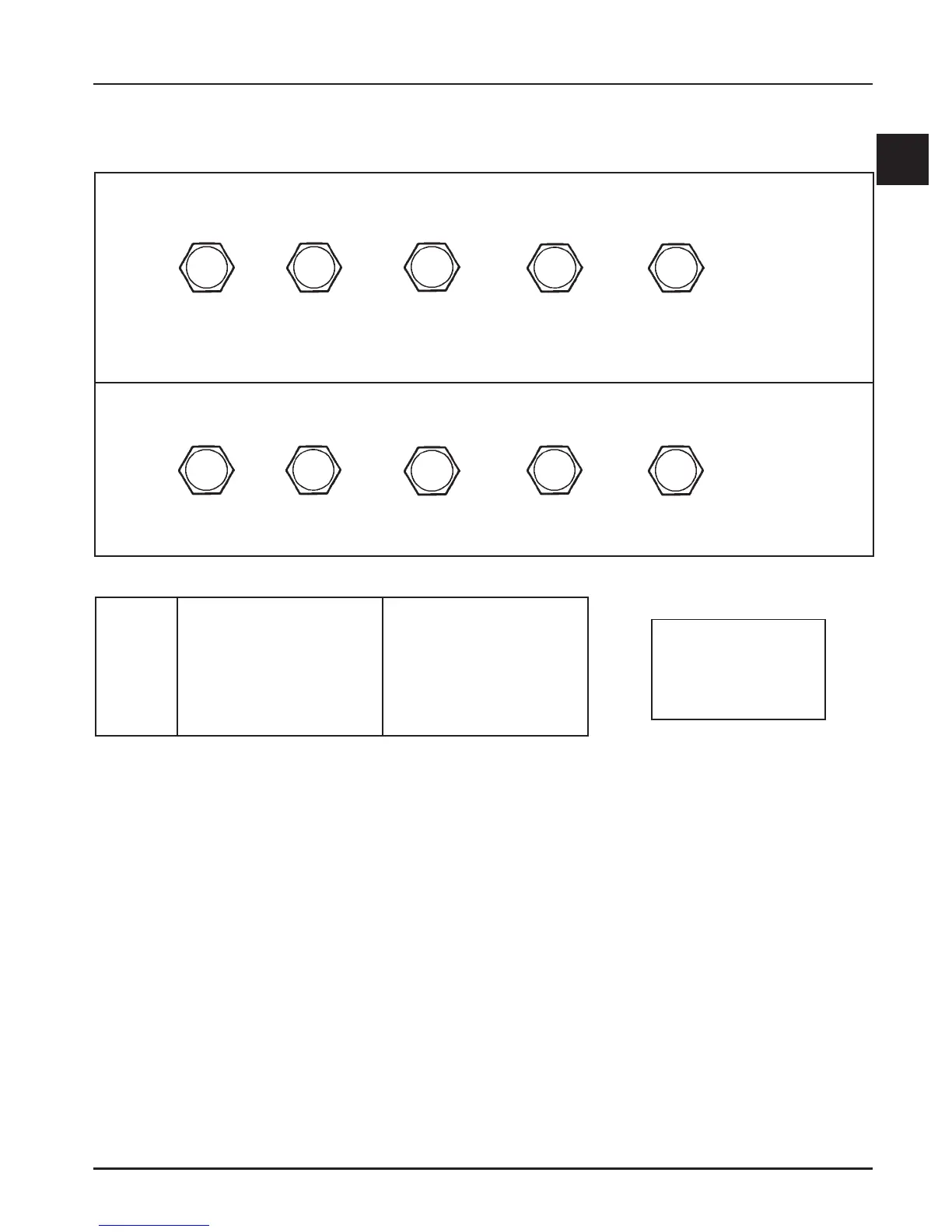

General Torque Values
Metric Fastener Torque Recommendations for Standard Applications
Size
M4 1.2 (11) 1.7 (15) 2.9 (26) 4.1 (36) 5.0 (44) 2.0 (18)
M5 2.5 (22) 3.2 (28) 5.8 (51) 8.1 (72) 9.7 (86) 4.0 (35)
M6 4.3 (38) 5.7 (50) 9.9 (88) 14.0 (124) 16.5 (146) 6.8 (60)
M8 10.5 (93) 13.6 (120) 24.4 (216) 33.9 (300) 40.7 (360) 17.0 (150)
Tightening Torque: N·m (ft. lb.) + or - 10%
Property Class
M10 21.7 (16) 27.1 (20) 47.5 (35) 66.4 (49) 81.4 (60) 33.9 (25)
M12 36.6 (27) 47.5 (35) 82.7 (61) 116.6 (86) 139.7 (103) 61.0 (45)
M14 58.3 (43) 76.4 (55) 131.5 (97) 184.4 (136) 219.7 (162) 94.9 (70)
Noncritical
Fasteners
Into Aluminum
Noncritical
Fasteners
Into Aluminum
Tightening Torque: N·m (in. lb.) + or - 10%
Property Class
N·m = in. lb. x 0.113
N·m = ft. lb. x 1.356
in. lb. = N·m x 8.85
ft. lb. = N·m x 0.737
Torque
Conversions
4.8
5.8 8.8 10.9 12.9
4.8
5.8 8.8 10.9 12.9
Oil Drain Plugs Tightening Torque: N·m (English Equiv.)
Size
1/8" NPT
1/4"
3/8"
1/2"
3/4"
X-708-1
Into Cast Iron
–
17.0 (150 in. lb.)
20.3 (180 in. lb.)
27.1 (20 ft. lb.)
33.9 (25 ft. lb.)
27.1/33.9 (20/25 ft. lb.)
Into Aluminum
4.5 (40 in. lb.)
11.3 (100 in. lb.)
13.6 (120 in. lb.)
17.6 (13 ft. lb.)
21.7 (16 ft. lb.)
27.1/33.9 (20/25 ft. lb.)
