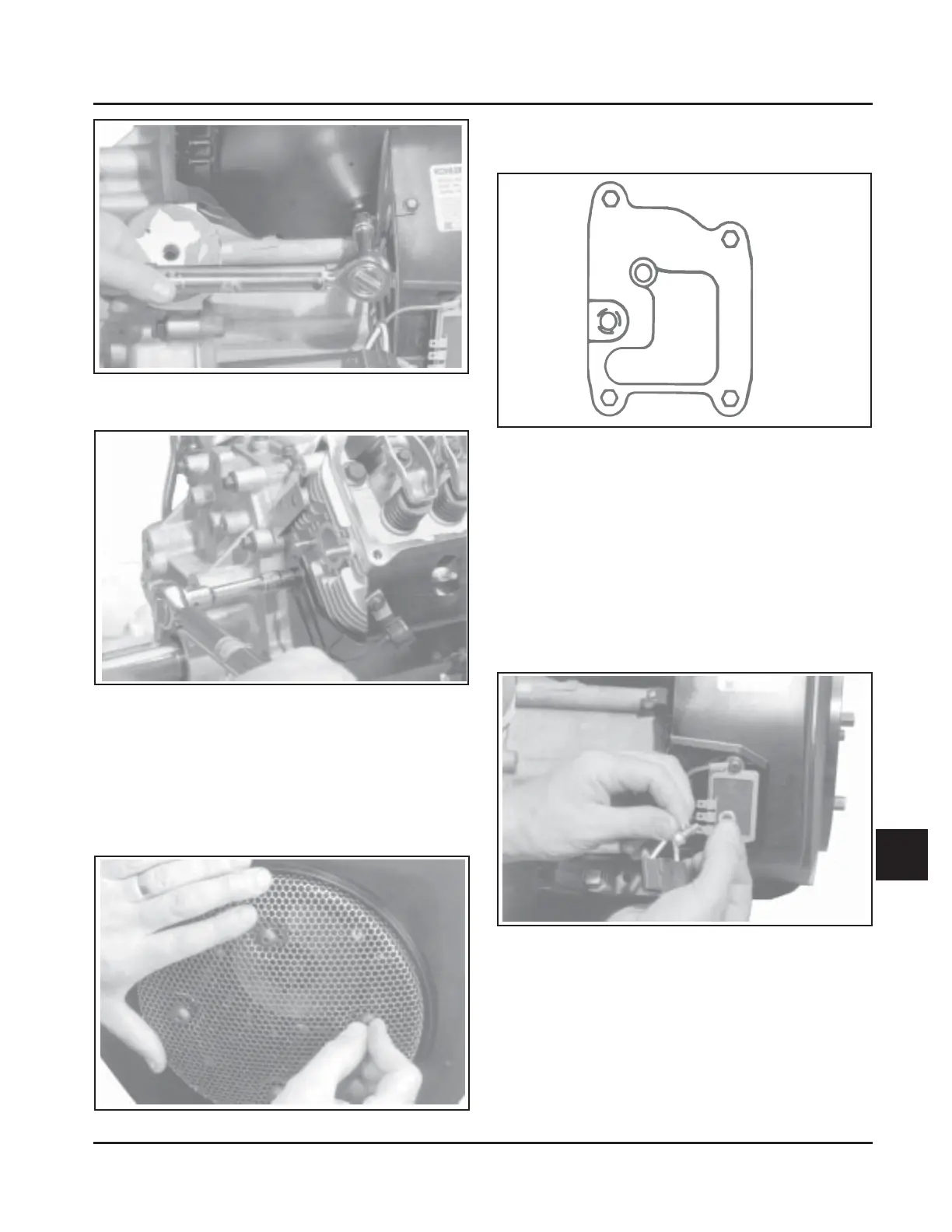

11.19
Section 11
Reassembly
11
Figure 11-66. Tighten Baffle Mounting Screws.
6. If an overlapping style flywheel screen is used,
attach it to the supports or flywheel. For a metal
flywheel screen, apply Loctite
®
No. 242 to the
screw threads (M6) and torque to 9.9 N·m
(88 in. lb.). Torque the plastic screen mounting
screws (M4) to 2.2 N·m (20 in. lb.).
Figure 11-65. Tighten Short Screws to Torque
Specified.
Figure 11-68. Breather Cover Fastener Torque
Sequence.
Reconnect Rectifier-Regulator
1. Install the rectifier-regulator in the blower
housing, if removed previously, then connect the
rectifier-regulator ground lead with the washer
and silver screw through the eyelet as shown in
Figure 11-69. If a grounding bracket is used,
secure with the lower mounting screw and
washer, against the outer side of the rectifier-
regulator. See Figure 11-71.
1
2
3
4
Figure 11-67. Installing Metal Type Grass Screen.
7. Torque the four breather cover screws to 7.3 N·m
(65 in. lb.) in the sequence shown in Figure 11-68.
Figure 11-69. Connecting Ground Lead.
2. Install the B+ terminal/lead into the center
position of the rectifier-regulator plug and
connect the plug to the rectifier-regulator. See
Figures 11-70 and 11-71.
