11.20
Section 11
Reassembly

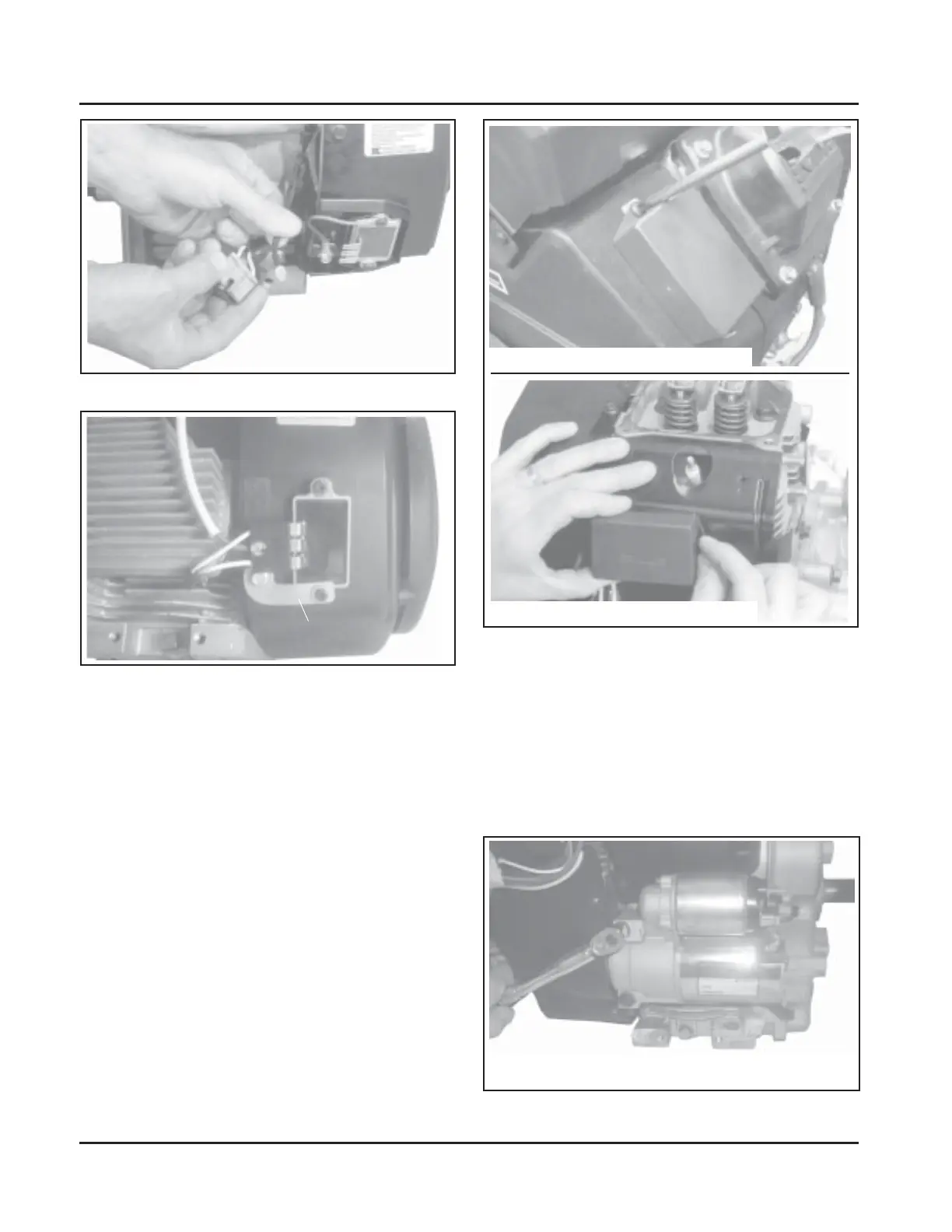

Figure 11-72. Reinstalling SAM Module.
Install Electric Starter Motor
1. Install the starter motor using the two hex flange
screws. See Figure 11-73. Some inertia-drive
starters have a pinion cover and spacers on the
starter bolts.
2. Torque the two hex flange screws to 15.3 N·m
(135 in. lb.).
Figure 11-73. Installing Electric Starter Motor.
Cylinder Baffle Mounting Location
Blower Housing Mounting Location
Figure 11-71. Grounding Bracket and Attached
Connector.
SMART-SPARK
™
Module
1. On engines with SMART-SPARK
™
, reinstall the
SAM module to the blower housing or cylinder
baffle. Do not overtighten the retaining screws.
See Figure 11-72.
Figure 11-70. Installing B+ Lead into Plug.
Grounding
Bracket
To Next Page
