4.1
Section 4
Air Cleaner and Air Intake System
4
Section 4
Air Cleaner and Air Intake System
Air Cleaner
These engines are equipped with a replaceable, high
density paper air cleaner element and most also have
the optional oiled, foam precleaner which surrounds
the paper element.
Two basic types of air cleaners are used. The original
confi guration is shown in Figure 4-1 and the later
confi guration in Figure 4-2. On the original style, air
is drawn through a duct from the blower housing and
from the outside slot. The later type uses a fl at base
plate with the enclosure provided by the cover.

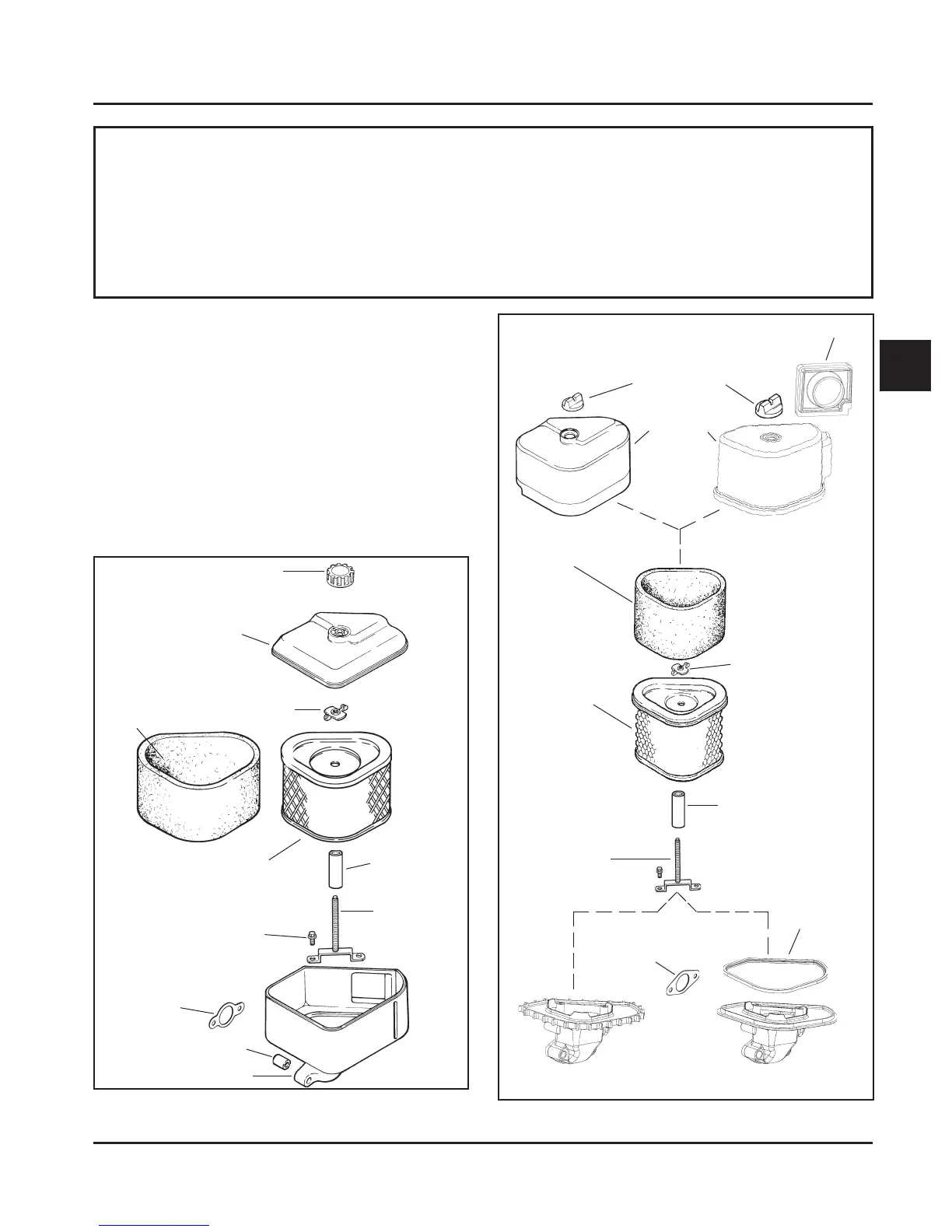

Figure 4-1. Original Air Cleaner Assembly -
Exploded View.
Figure 4-2. Later Style Air Cleaner Assemblies -
Exploded View.
Rubber Seal
(Sleeve)
Air Cleaner Cover Knob
Air Cleaner Cover
Optional
Foam
Precleaner
Covered Air
Cleaner Element
Hex. Flange Screw (2)
Gasket
Bushing
Base
Stud
Wing nut
Air Duct
Knob (Part
of Cover)
Closed BaseOpen Base
Inner Air
Cleaner Seal
Air Cleaner
Base Seal
Air Cleaner
Cover
Wing Nut
Optional Foam
Precleaner
Paper Element
(Extra Capacity
Shown)
Stud
Gasket
CV11-16
CV460-465, CV490-495
