8.31
Section 8
Electrical System and Components
8

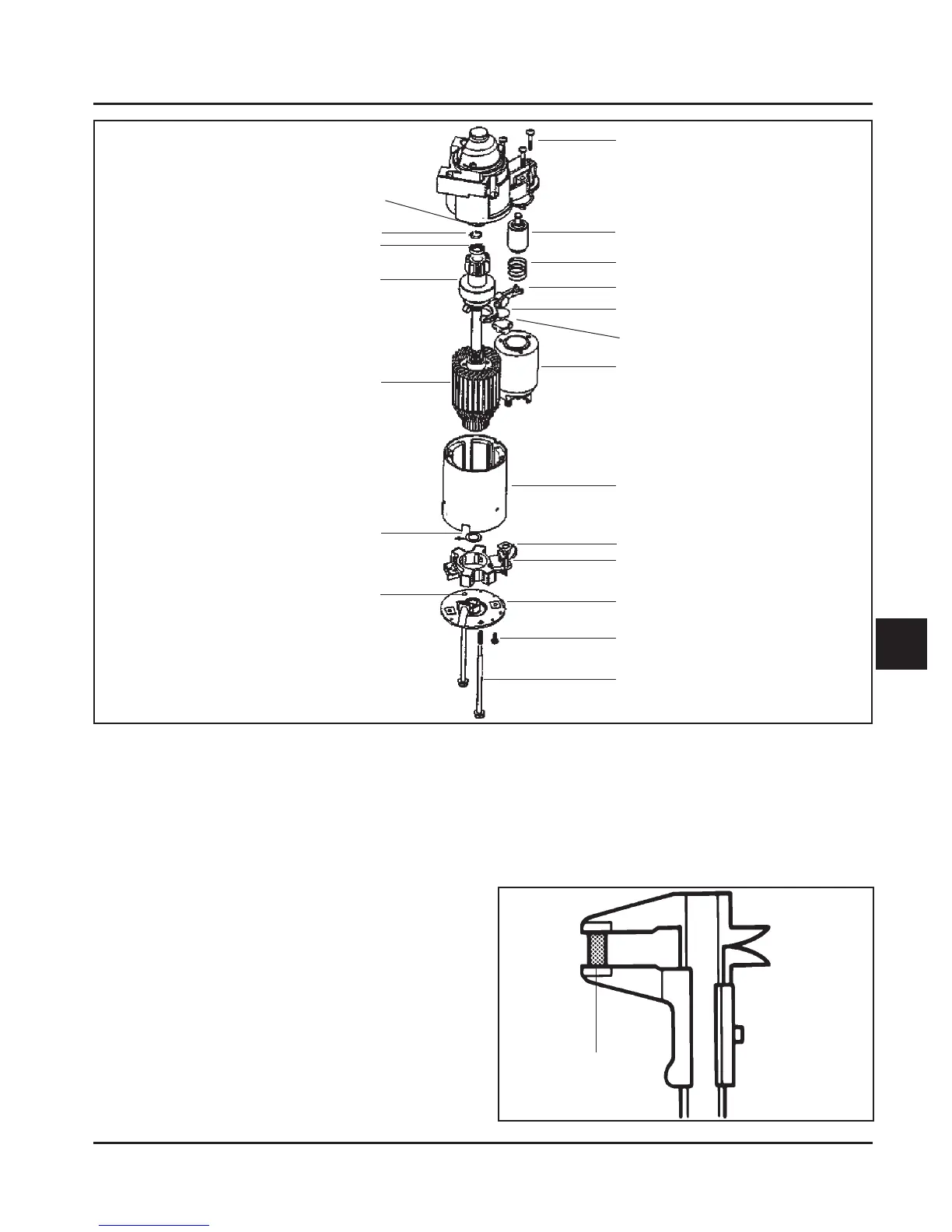

Figure 8-48. Delco-Remy Solenoid Shift Starter.
Inspection
Drive Pinion
Check and inspect the following areas:
a. The pinion teeth for abnormal wear or
damage.
b. The O.D. surface between the pinion and the
clutch mechanism for nicks or burrs which
could cause seal damage.
c. Check the drive clutch by holding the clutch
housing and rotating the pinion. Pinion should
rotate in one direction only.
Solenoid
Drive
Armature
Plug
Lever
Ring
Stop
Frame & Field
Screw
Plunger
Spring
Plate
Collar
Brush Holder
Nut
CE Frame ASM
Screw
Bolt
Washer
Tube
Brushes and Springs
Inspect both the springs and brushes for wear, fatigue,
or damage. Measure the length of each brush. The
minimum length for each brush is 7.6 mm (.300 in.).
See Figure 8-49. Replace the brushes if they are
worn undersize, or their condition is questionable.
Wear limit length:
7.6 mm (.300 in.)
Figure 8-49. Checking Brushes.
