Kohler Command PRO CH395 Service Manual

1.6
Section 1
Safety and General Information
Dimensions in millimeters.
Inch equivalents shown in ( ).

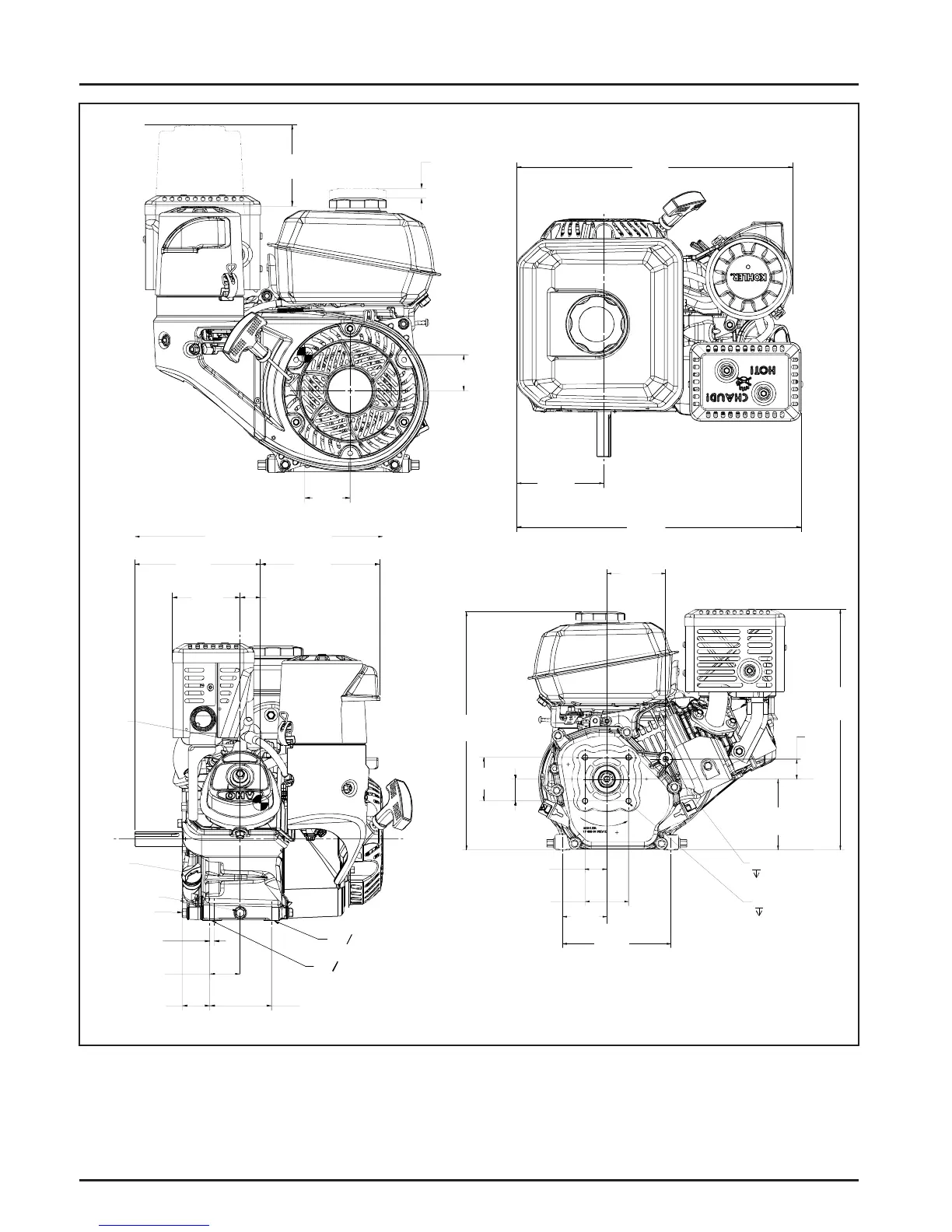

Figure 1-5. Typical Engine Dimensions-CH270.
373.53
(14.706)
SPARK
PLUG
118.03
(4.647)
384.87
(15.153)
47.11
(1.855)
12.50
(0.492)
GAS CAP
REMOVAL
AIR CLEANER
COVER REMOVAL
106.00
(4.173)
58.75
(2.313)
322.25
(12.687)
STRAIGHT PTO
163.28
(6.428)
155.03
(6.104)
26.48
(1.043)
88.23
(3.474)
OIL
FILL
OIL
DRAIN PLUG
MOUNTING
FACE
2X 0 10.00
(0.394)
2X 0 10.00 x 15.50 SLOT
(0.394 x 0.610)
79.99
(3.149)
35.70
(1.406)
39.33
(1.548)
5.50
(0.217)
162.00
(6.378)
66.00
(2.598)
65.08
(2.562)
32.55
(1.281)
88.00
(3.465)
360.57
(14.196)
30.00
(1.181)
106.00
(4.173)
M8 x 1.25-6H
THRU
4X M8 x 1.25-6H
15.00 (0.591)
356.46
(14.034)
65.10
(2.563)
32.55
(1.281)

Kohler Command PRO CH395 Specifications

General

Compression Ratio	8.5:1
Fuel Type	Gasoline
Cooling System	Air-cooled
Engine Type	4-cycle OHV
Displacement	277 cc
Starting Type	Electric or Recoil
Ignition System	Electronic
Power	9.5 HP
