Disassembly/Inspection and Service
KohlerEngines.com 24 690 34 Rev. D

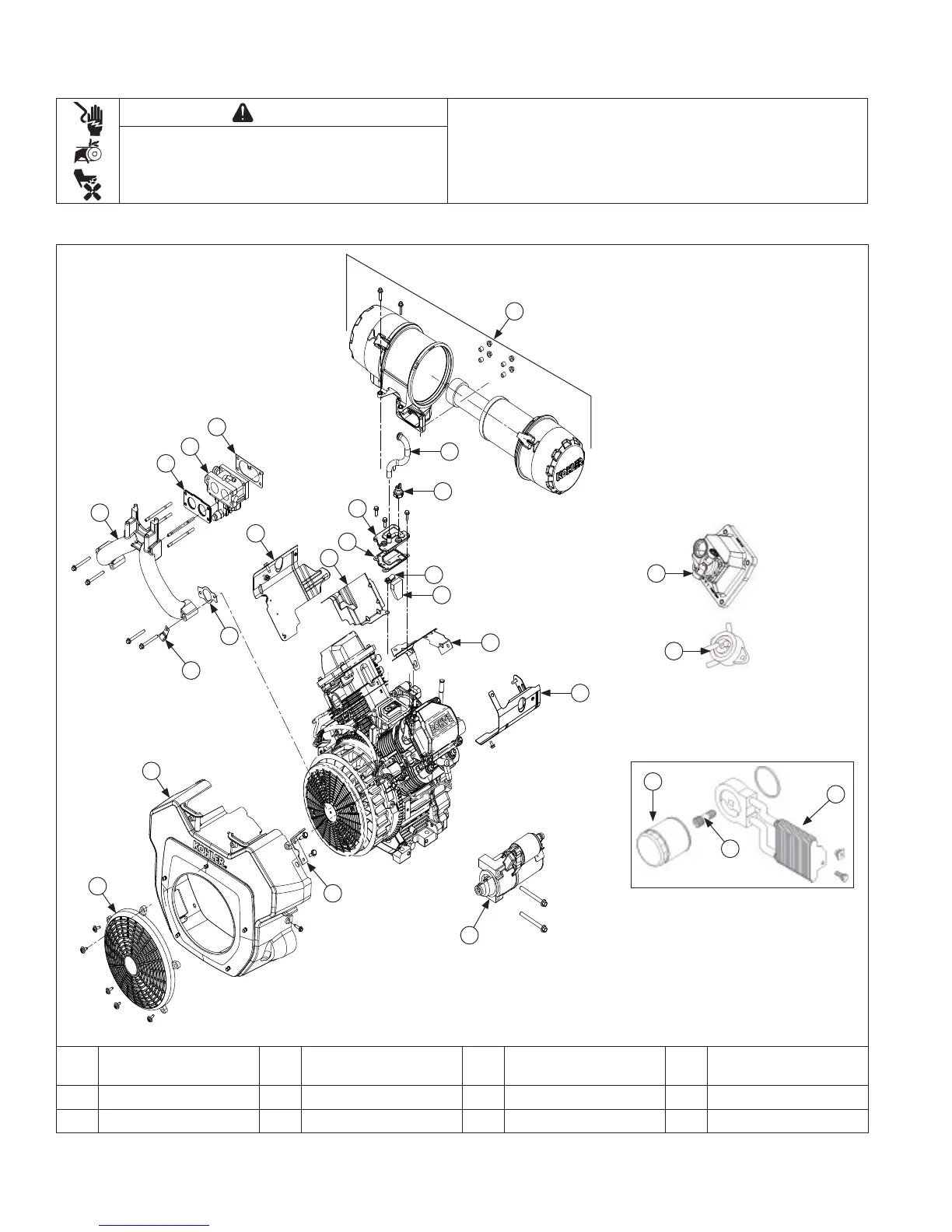

External Engine Components
V
W
A
P
Q
C
D
E
F
I
K
J
H
G
L
F
O
R
B
N
T
U
S
X
M
K
A Intake Manifold B
Intake Manifold
Gasket
C Carburetor Gasket D Carburetor
E Air Cleaner Gasket F Outer Baffl e G Breather Tube H Oil Sentry
™
I Breather Cover J Breather Gasket K Inner Baffl e L Breather Reed
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.
