Kohler Command PRO ECH749 Service Manual

1.6
Section 1
Safety and General Information

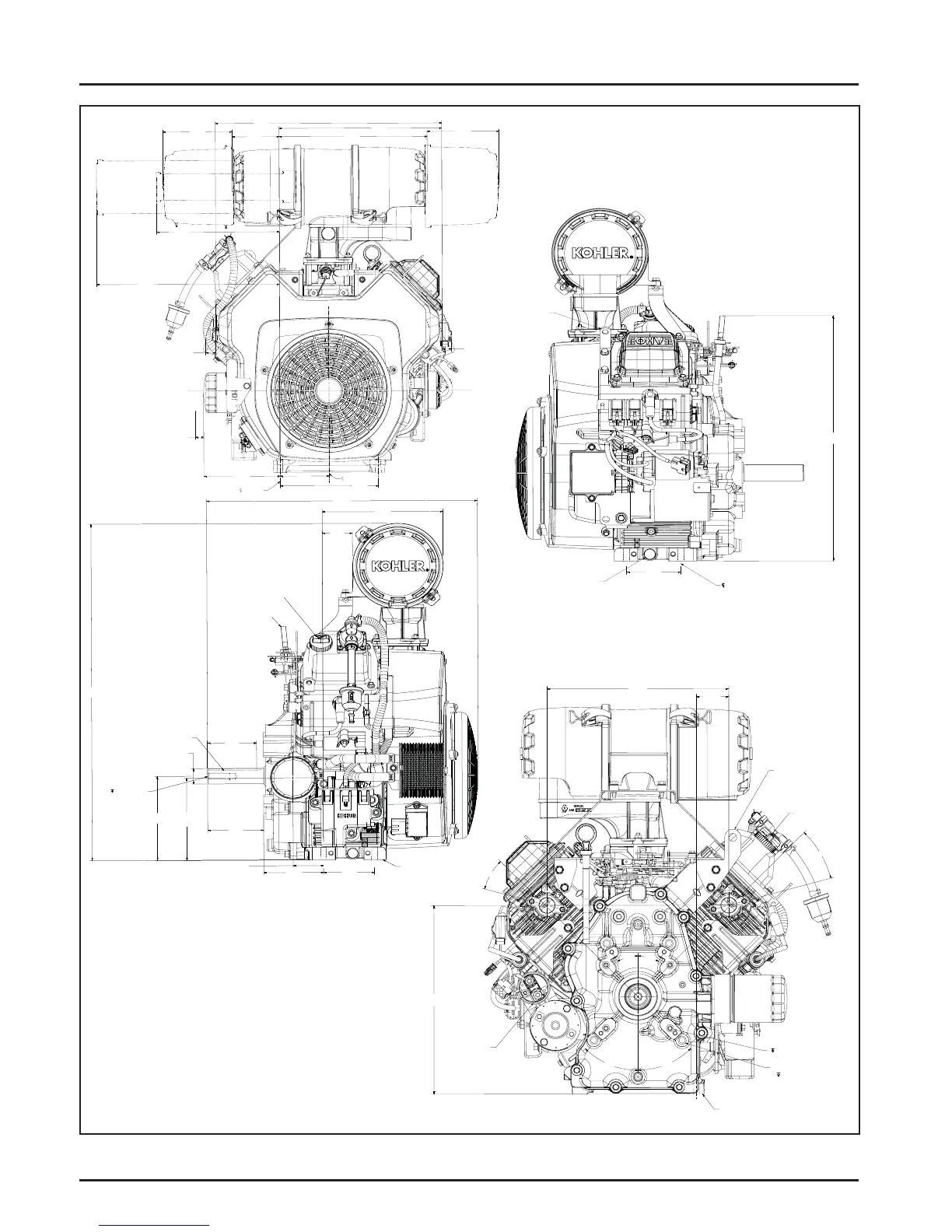

Figure 1-4. Typical Engine Dimensions with Heavy-Duty Air Cleaner.
Dimensions in millimeters. Inch
equivalents shown in [ ].
424.29
(16.704)
304.72
(11.997)
277.30
(10.917)
135.00
(5.315)
Air Filter Rain
Cap Removal
88.20
(3.473)
130.00
(5.118)
Air Filter Cover
Assembly Removal
230.20
(9.063)
Safety Air Filter
Element Removal
342.52
(13.485)
Primary Air Filter
Element Removal
19.22
(0.757)
Spark Plug
15.70
(0.618)
142.89
(5.626)
92.10
(3.626)
184.20
(7.252)
17.53
(0.690)
Spark Plug
Mounting
Hole “A”
Engine
LIFT STRAP
2X OIL DRAIN PLUG
3/8 NPT (IN.)
89.00
(3.504)
MOUNTING
HOLE “A”
432.61
(17.032)
471.44
(18.560)
210.40
(8.284)
52.40
(20.063)
OIL FILL LOCATION
OIL DIPSTICK
622.63
(24.513)
1/4 IN. SQ.
KEYWAY
85.50
(3.366)
28.56
Ø(1.125)
7/16-20 UNF 2B (IN.)
38.10 (1.500)
155.58
(6.125)
152.08
(5.987)
OIL FILTER
97.38
(3.834)
52.75
(2.077)
OIL FILTER
104.00
(4.094)
89.00
(3.504)
ENGINE MOUNTING
SURFACE
301.59
(11.874)
SOLENOID
SHIFT
STARTER
45˚ 45˚
ENGINE
MOUNTING
SURFACE
7/16-14 UNC 2B (IN.)
21.0 (0.827)
Ø196.85 (7.75) B.C.
3/8-16 UNC 2B (IN.)
17.0 (0.669)
Ø142.88 (5.625) B.C.
30˚
OIL FILL LOCATION
LIFT
STRAP
51.20
(2.016)
286.49
(11.279)
30˚ 30˚
30˚
