Kohler Command PRO ECH749 Service Manual

8.11
Section 8
Disassembly
8

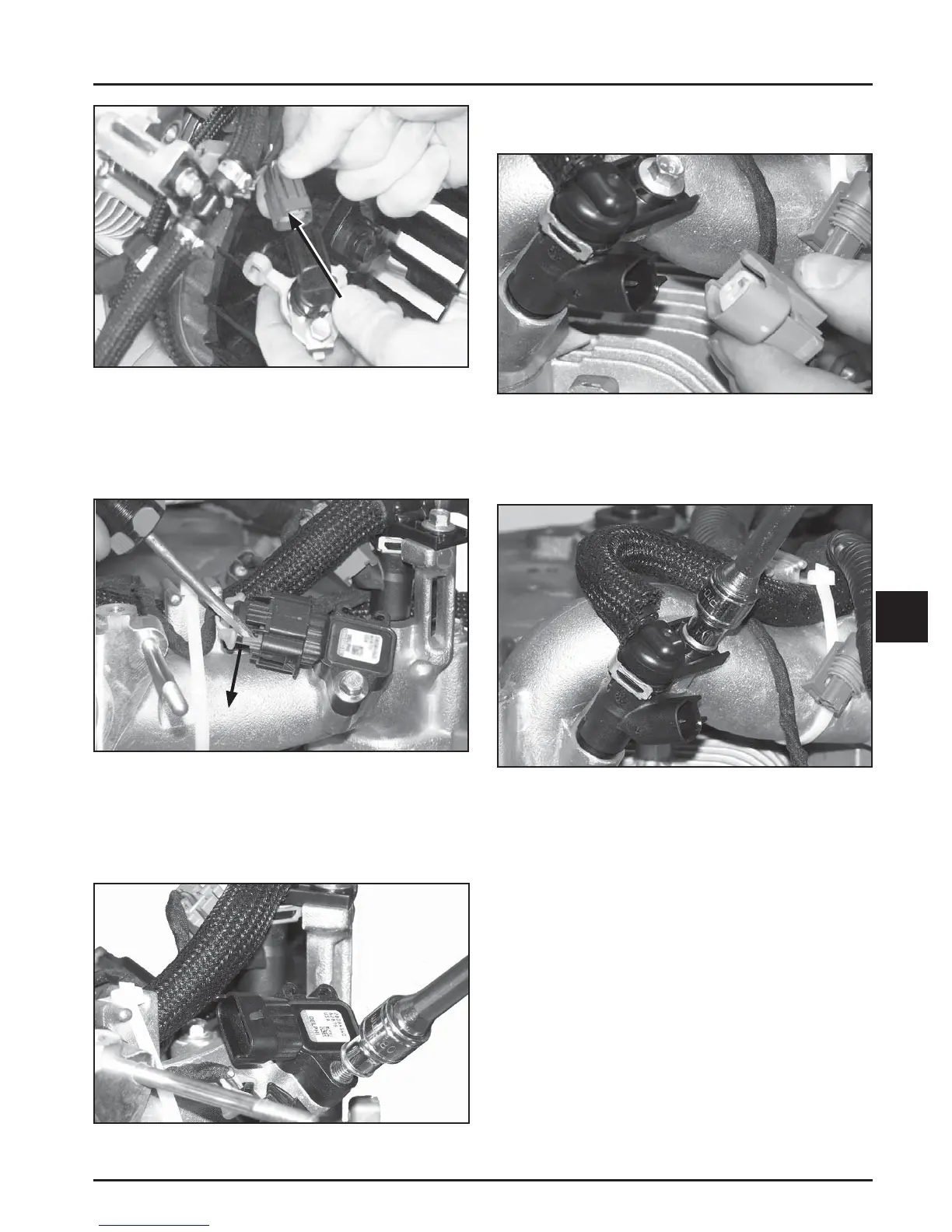

Figure 8-47. Disconnecting Electrical Connector.
2. Remove the hex fl ange screw and pull the injector
out of the intake manifold for each injector. See
Figure 8-48.
Figure 8-44. Disconnecting Electrical Connector.
Remove the Manifold Absolute Pressure
(MAP) Sensor
1. With a screwdriver, slide the locking tab on the
electrical connector. See Figure 8-45.
Figure 8-46. Removing MAP Screw.
Electrical
Electrical
Connector
Connector
Remove Fuel Injectors
1. Disconnect the electrical connector. See Figure 8-47.
Slide
Slide
Locking
Locking
Tab
Tab
Figure 8-45. Slide Locking Tab on Connector.
2. Detach the connector.
3. Remove the hex fl ange screw and pull the MAP
sensor out of the intake manifold. See Figure 8-46.
Figure 8-48. Removing Fuel Injectors.
3. When removed, pull the metal retaining clip
connecting the fuel injector to the fuel injector
cap. See Figure 8-49. There may be some fuel le
in the line. Any spilled fuel must be cleaned up
immediately.

Kohler Command PRO ECH749 Specifications

General

Fuel System	Carburetor
Starter	Electric
Governor Type	Mechanical
Lubrication System	Full Pressure
Fuel Type	Gasoline
Crankshaft Orientation	Horizontal
Bore	3.27 in (83 mm)
Cooling System	Air
Oil Type	SAE 10W-30
Spark Plug Gap	0.030 in (0.76 mm)
Valve Clearance - Intake	0.004 - 0.006 in (0.10 - 0.15 mm)
Crankshaft Type	Varies by model
Crankshaft Thread Size	Varies by model
Crankshaft Length	Varies by model
Crankshaft Diameter	Varies by model
Type	Overhead Valve (OHV)
