8.16
Section 8
Disassembly

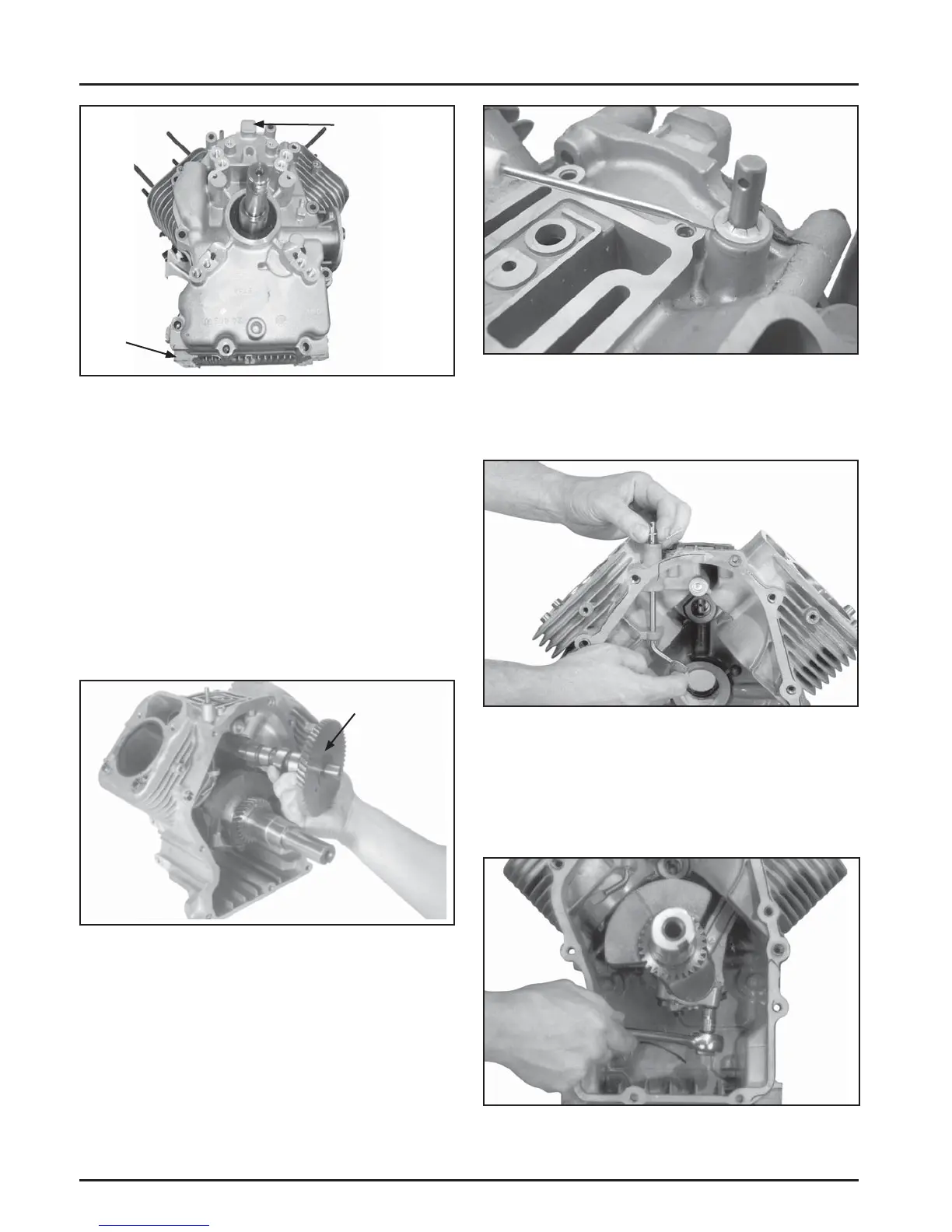

Figure 8-67. Splitting Tab Locations.
Governor Gear Assembly
The governor gear assembly is located inside the
closure plate. If service is required, refer to the service
procedures under Governor Gear Assembly in
Section 9.
Oil Pump Assembly
The oil pump is mounted inside the closure plate. If
service is required, refer to the service procedures
under Oil Pump Assembly in Section 9.
Remove Camshaft
1. Remove the camsha . See Figure 8-68.
Figure 8-68. Removing Camshaft.
Remove Governor Cross Shaft
1. Remove the retainer and nylon washer, from the
governor cross sha . See Figure 8-68.
Figure 8-69. Removing Governor Cross Shaft
Retainer.
2. Remove the cross sha through the inside of the
crankcase. See Figure 8-70.
Camshaft
Figure 8-70. Removing Governor Cross Shaft.
Remove Connecting Rods with Pistons
and Rings
1. Remove the two hex fl ange screws securing the
closest connecting rod end cap. Remove the end
cap. See Figure 8-71.
Figure 8-71. Removing Connecting Rod End Cap.
Splitting Tab
Splitting
Tab
To Next Page
