Kohler Command PRO ECH749 Service Manual

10.6
Section 10
Reassembly

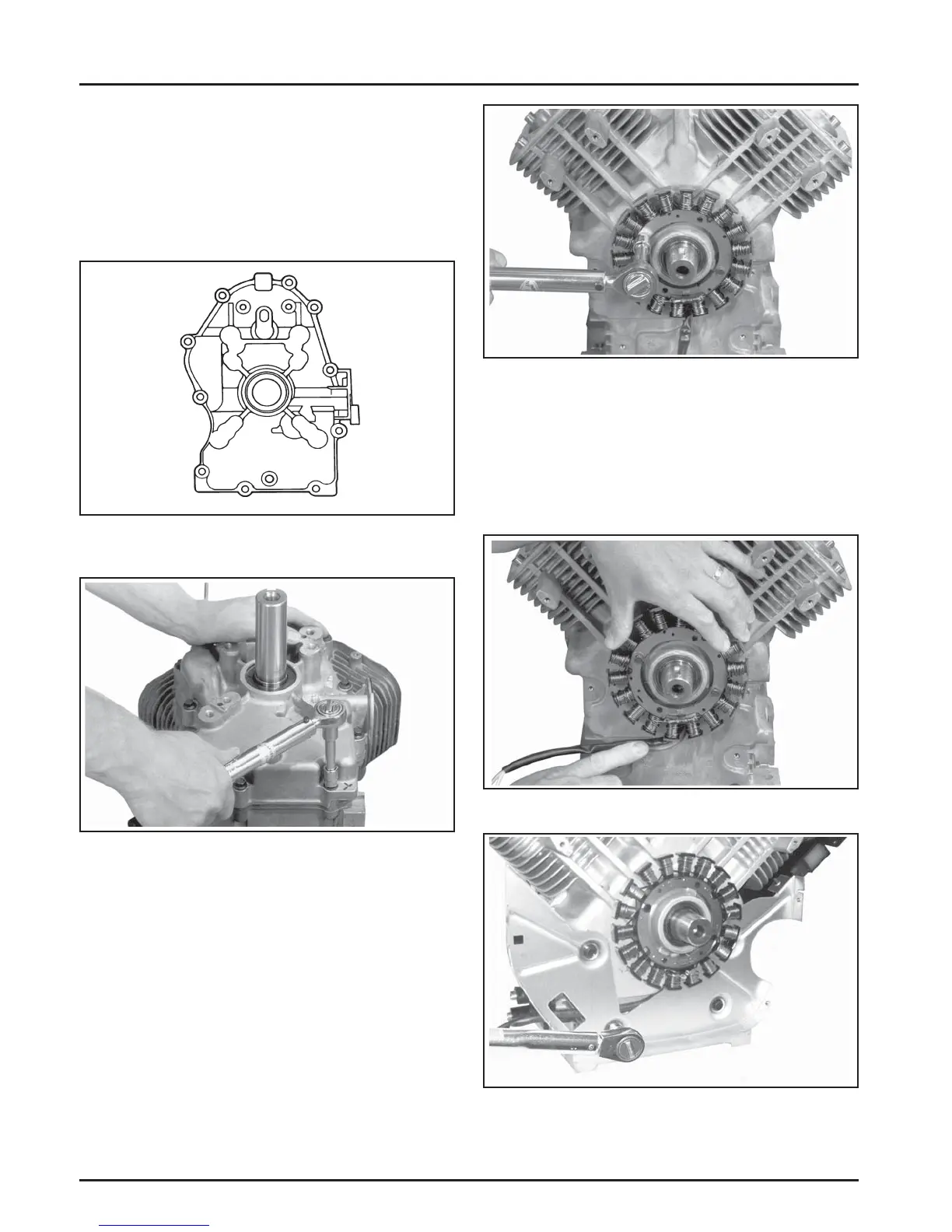

Figure 10-18. Torquing Stator Screws.
4. Route the stator leads in the crankcase channel,
then install the backing plate. Secure using the
four hex fl ange screws. See Figures 10-19 and
10-20. Torque the screws to 10.7 N·m (95 in. lb.)
into new holes or 7.3 N·m (65 in. lb.) into used
holes.
Figure 10-20. Installing Backing Plate.
Figure 10-19. Route Stator Leads in Groove.
Figure 10-16. Closure Plate Fastener Torque
Sequence.
10
6
2
9
7
3
1
8
4
5
6. Install the ten hex fl ange screws securing the
closure plate to the crankcase. Torque fasteners in
the sequence shown in Figure 10-16 to 25.6 N·m
(227 in. lb.). One of the ten mounting screws has
a thread sealant patch. This screw is typically
installed in the #10 hole shown in Figure 10-16.
Reapply pipe sealant with Tefl on
®
(Loctite
®
592
™
PST
®
Thread Sealant or equivalent).
Figure 10-17. Torquing Closure Plate Fasteners.
Install Stator and Backing Plate
1. Apply pipe sealant with Tefl on
®
(Loctite
®
592
™
PST
®
Thread Sealant or equivalent) to the stator
mounting holes.
2. Position the stator aligning the mounting holes
so that the leads are at the bo om, towards the
crankcase.
3. Install and torque the two hex fl ange screws to
6.2 N·m (55 in. lb.) into new holes or 4.0 N·m
(35 in. lb.) into used holes. See Figure 10-18.

Kohler Command PRO ECH749 Specifications

General

Fuel System	Carburetor
Starter	Electric
Governor Type	Mechanical
Lubrication System	Full Pressure
Fuel Type	Gasoline
Crankshaft Orientation	Horizontal
Bore	3.27 in (83 mm)
Cooling System	Air
Oil Type	SAE 10W-30
Spark Plug Gap	0.030 in (0.76 mm)
Valve Clearance - Intake	0.004 - 0.006 in (0.10 - 0.15 mm)
Crankshaft Type	Varies by model
Crankshaft Thread Size	Varies by model
Crankshaft Length	Varies by model
Crankshaft Diameter	Varies by model
Type	Overhead Valve (OHV)
