Kohler Command PRO ECH749 Service Manual

10
10.15
Section 10
Reassembly

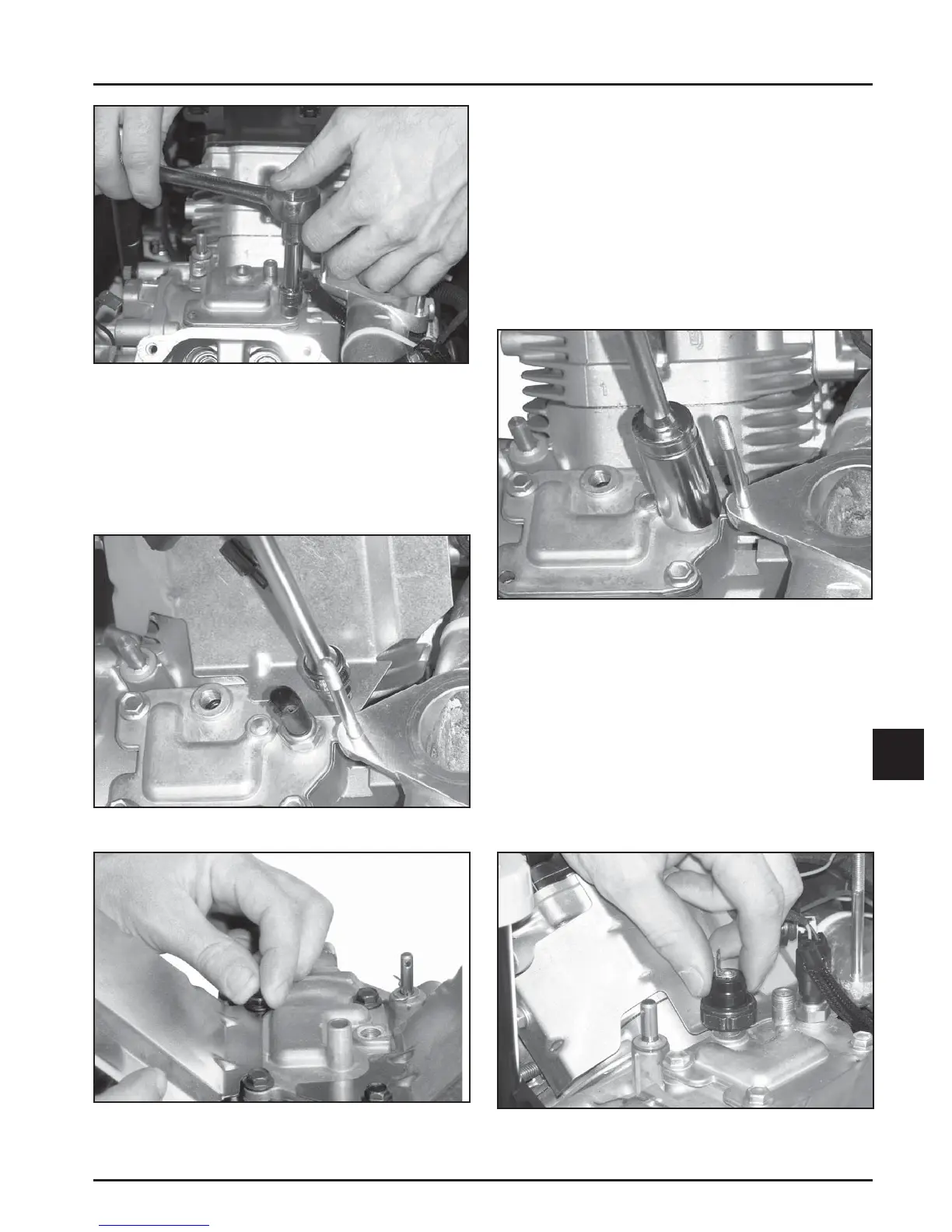

Figure 10-51. Installing Screws (Locations 3 and
4).
7. Install the inner baffl es using the two remaining
hex fl ange screws (see Figures 10-52 and 10-53)
and fi nger tighten. Do not torque the screws at
this time; they will be tightened a er the blower
housing and outer baffl es are installed.
Figure 10-53. Finger Tightening Remaining Cover
Screws.
Install Oil Temperature Sensor
NOTE: Ensure part is clean, undamaged and free of
debris and make sure the electrical connector
has the seal in place.
1. Lightly oil the oil temperature sensor O-ring
and install the oil temperature sensor into the
breather cover.
2. Torque the sensor to 7.3 N·m (65 in. lb.). See
Figure 10-54.
Figure 10-54. Torque Oil Temperature Sensor.
3. Push the electrical connector on the oil
temperature sensor making sure a good
connection is made.
Install Oil Sentry™ (If So Equipped)
1. Apply pipe sealant with Tefl on
®
(Loctite
®
592
™
PST
®
Thread Sealant or equivalent) to the threads
of the Oil Sentry
™
switch and install it into the
breather cover. See Figure 10-55. Torque to
4.5 N·m (40 in. lb.).
Figure 10-52. Installing Inner Baffl es.
Figure 10-55. Oil Sentry
TM
Switch (If So Equipped).

Kohler Command PRO ECH749 Specifications

General

Fuel System	Carburetor
Starter	Electric
Governor Type	Mechanical
Lubrication System	Full Pressure
Fuel Type	Gasoline
Crankshaft Orientation	Horizontal
Bore	3.27 in (83 mm)
Cooling System	Air
Oil Type	SAE 10W-30
Spark Plug Gap	0.030 in (0.76 mm)
Valve Clearance - Intake	0.004 - 0.006 in (0.10 - 0.15 mm)
Crankshaft Type	Varies by model
Crankshaft Thread Size	Varies by model
Crankshaft Length	Varies by model
Crankshaft Diameter	Varies by model
Type	Overhead Valve (OHV)
