Kohler Command PRO ECH749 Service Manual

5.6
Section 5
EFI Fuel System
Grey Connector
Pin # Description
1 Not Used
2 Not Used
3 Malfunction Indicator Light (MIL) Ground
4 Not Used
5 Not Used
6 Not Used
7 Not Used
8 Not Used
9Ba ery Ground
10 Ignition Coil #2 Ground
11 Not Used
12 Not Used
13 Not Used
14 Safety Switch Ground
15 Not Used
16 ECU
17 Fuel Pump Control (+12V)
18 Not Used
Black Connector
Pin # Function
1 Ignition Coil #1 Ground
2Ba ery Ground
3 Diagnostic Communication Line
4 Speed Sensor input
5 Fuel Injector Output #1 Ground
6 Fuel Injector Output #2 Ground
7 Oxygen Sensor Heater
8 Intake Air Temperature (IAT) sensor input
9 Fuel Pump Ground
10 Ground for IAT, TPS, MAP, O2 and Oil Sensors
11 Manifold Absolute Pressure (MAP) sensor input
12 Thro le Position Sensor (TPS) input
13 Speed Sensor Ground
14 Oil Temperature Sensor input
15 Ignition Switch (Switched +12V)
16 Power for TPS and MAP Sensors (+5V)
17 Oxygen Sensor (O2) input
18 Ba ery Power (Permanent +12V)

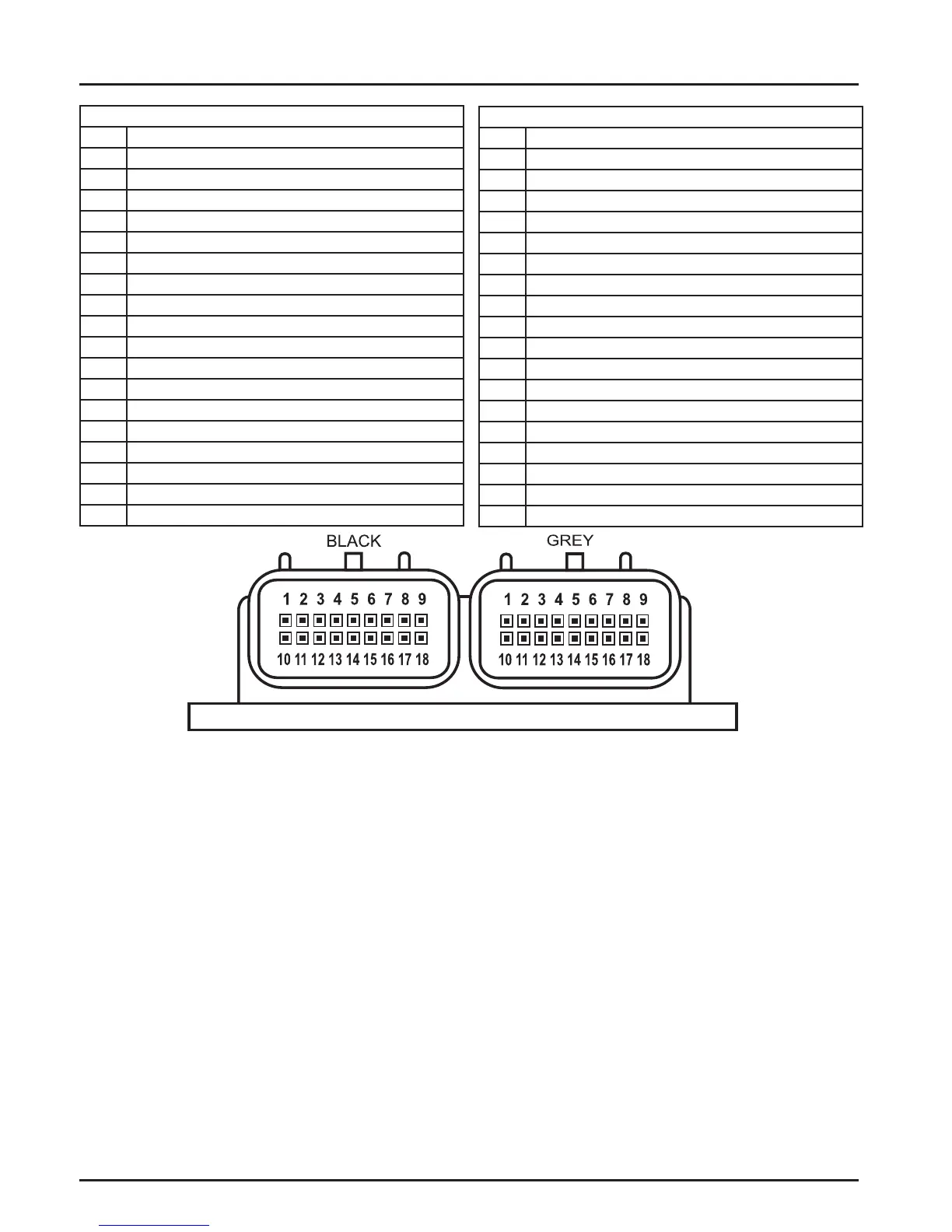

Pinout of the ECU

Kohler Command PRO ECH749 Specifications

General

Fuel System	Carburetor
Starter	Electric
Governor Type	Mechanical
Lubrication System	Full Pressure
Fuel Type	Gasoline
Crankshaft Orientation	Horizontal
Bore	3.27 in (83 mm)
Cooling System	Air
Oil Type	SAE 10W-30
Spark Plug Gap	0.030 in (0.76 mm)
Valve Clearance - Intake	0.004 - 0.006 in (0.10 - 0.15 mm)
Crankshaft Type	Varies by model
Crankshaft Thread Size	Varies by model
Crankshaft Length	Varies by model
Crankshaft Diameter	Varies by model
Type	Overhead Valve (OHV)
