Install Vaporizer/Regulator/Lock-Off
WARNING
Propane is extremely fl ammable and is heavier than air and
tends to settle in low areas where a spark or fl ame could
ignite gas. Do not start or operate this engine in a poorly
ventilated area where leaking gas could accumulate and
endanger safety of persons in area.
To ensure personal safety, installation and repair of propane
fuel supply systems must be performed only by qualifi ed
propane system technicians. Improperly installed and
maintained propane equipment could cause fuel supply
system or other components to malfunction, causing gas
leaks.
Observe federal, state and local laws governing propane
fuel, storage, and systems.
Explosive Fuel can cause fi res and severe
burns.
If a gaseous odor is detected, ventilate area
and contact an authorized service technician.

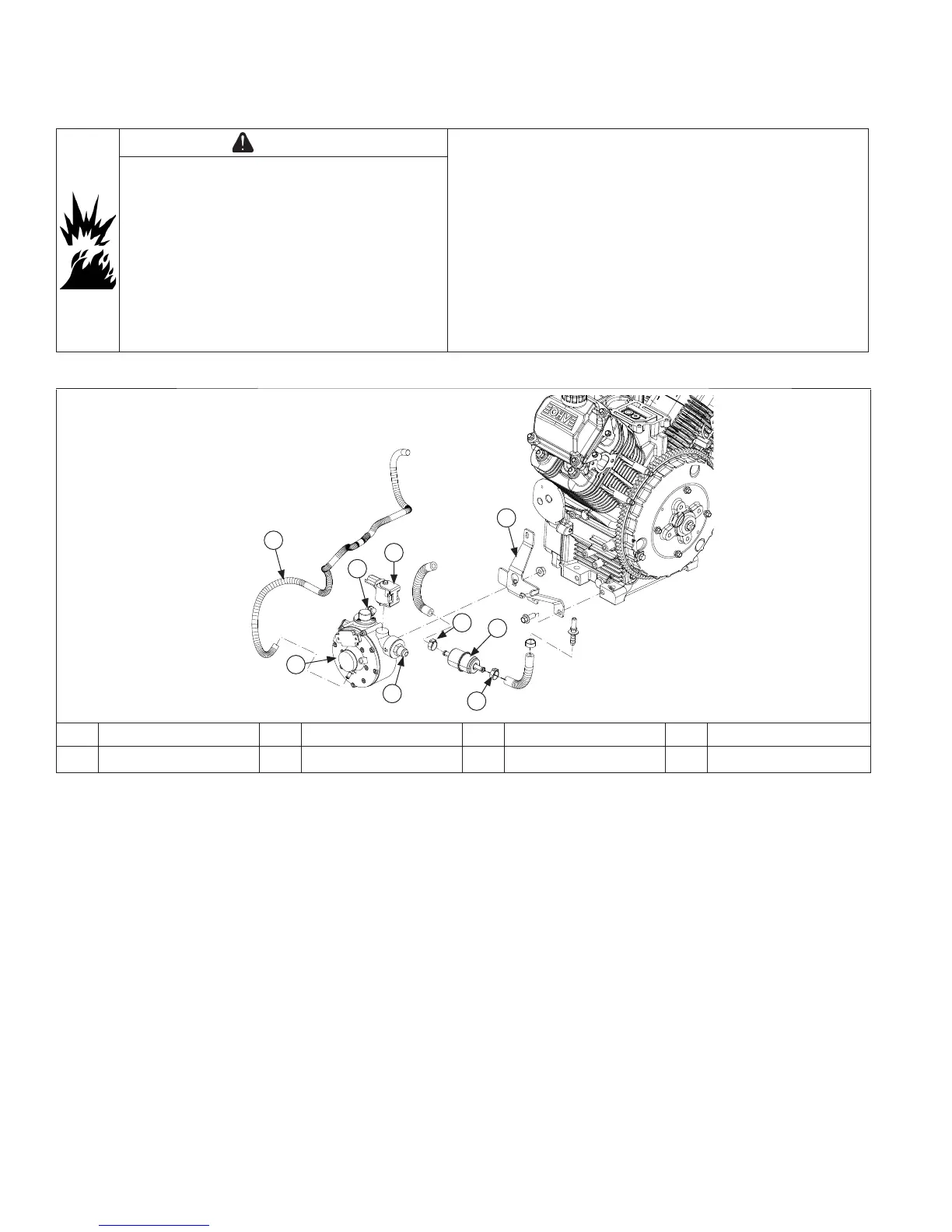

Vaporizer/Regulator/Lock-Off Assembly
G
C
F
D
E
A
B
F
H
A Vacuum Line B Vaporizer/Regulator C Inlet Fitting D Lock-Off Assembly
E Outlet Fitting F Oetiker Clamp G Propane Fuel Filter H Bracket
1. Connect fuel line quick connect (on high pressure fuel line assembly) to straight fi tting (in fuel line after propane
fuel fi lter).
2. Apply pipe sealant with Tefl on
®
(Loctite
®
592
™
PST
®
Thread Sealant or equivalent) to regulator bracket screws,
after fi rst 3-4 lead-in threads. Install screws and secure regulator bracket to crankcase. Torque screws to 11.9
N·m (105 in. lb.). With nut installed on center back of vaporizer/regulator, position regulator so nut comes through
key hole slot in bracket, installing vaporizer/regulator (keeping fuel lines, propane fuel fi lter assembled) to bracket.
Torque nut to 19.8 N·m (175 in. lb.).
3. Connect vacuum line to barb on front of vaporizer/regulator.
4. Reconnect electrical plug to lock-off assembly.
5. If any Oetiker clamps were cut during disassembly, slide a new Oetiker clamp onto fuel line and connect fuel line.
Only use an Oetiker clamp pliers to crimp Oetiker clamps. Oetiker clamp crimp must point up, away from top of
vaporizer/regulator or propane fuel fi lter and abrasion sleeve must be positioned over Oetiker clamp.
