Reassembly
24 690 32 Rev. A KohlerEngines.com

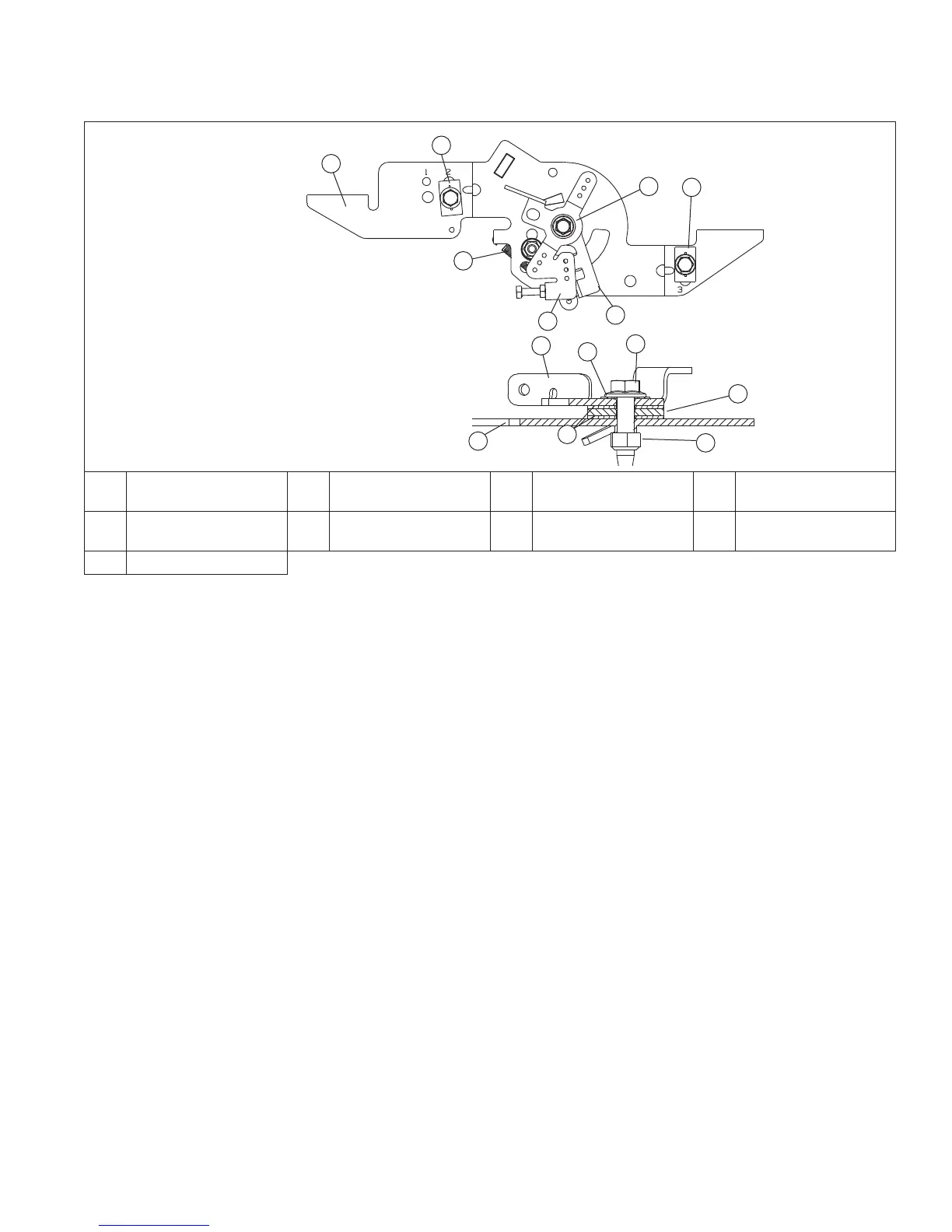

Install External Governor Controls
D
A
B
C
B
I
F
F
D
E
C
A
G
H
A
Speed Control
Bracket
B Cable Clamp C Screw D
Throttle Actuator
Lever (bottom)
E Spring Washer F
Throttle Control Lever
(top)
G Flat Washer H Nut
I Return Spring
1. Install governor lever onto governor cross shaft.
2. Make sure throttle linkage, linkage spring, black linkage bushing are connected to governor lever and to throttle
lever on throttle body.
Assemble Top Mount Control Panel
1. Install lower support control bracket with throttle control shaft.
2. Install top mount control panel over throttle control shaft. Secure control panel to blower housing with screws.
3. Assemble throttle control lever and applicable hardware to throttle control shaft.
4. Attach governor spring to previously marked hole on governor lever.
