2. Surface mounting the cabinet on a wall.
NOTE:
A. Install Mounting Bar.
Installing the cabinet on a wall without the door attached can
make installing easier for one person. Do not mount the doors
until the boxes is in or on the wall.
(Step one varies on type of cabinet
you have, see below.)

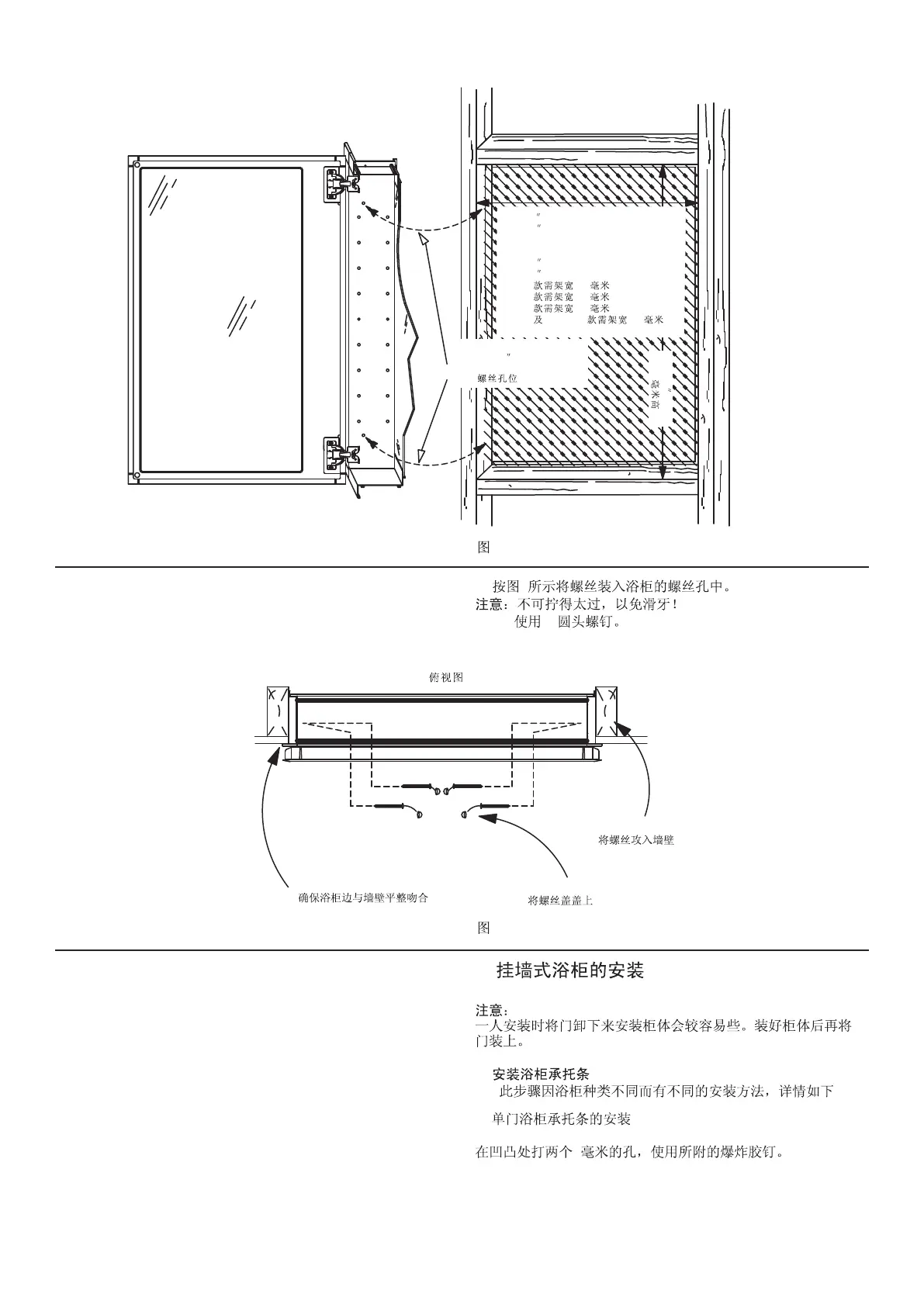

Fig. 1 1
14 1/4 W for K-15030T-NA Models
19 1/4 W for K-15031T-NA,
K-15034T-NA,
K-15035T-NA Models
24 1/4 W for K-15032T-NA Models
29 1/4 W for K-15033T-NA
CL15 362 ;
CL20 489 ;
CL25 616 ;
CL30 CL3026-3 743 ;
Mounting location for
#8 x 1 1/2 philips
head screws
#8
B. 1
#8
B. Install screws through holes in cabinet as shown in Fig.1
DO NOT OVER- TIGHTEN!
Use #8 x 1 1/2 Phillips head.
Note:
Top View
Stud and wall surface
Install dome caps over screws
Cabinet flange fits flush against wall
Fig. 2 2
-4-
642
1) For Single Door
Drill two 3/16 holes in bottom mounting bar at indent location.
Use the supplied anchors or locate studs if possible.
1)
5
1056564-T01-A
To Next Page
