2. Install the Click Drain
CAUTION: Risk of product damage. Never pull on the drain
cap to open the drain. Press and release the drain cap once to
close it. Press and release it again to open it.
Remove the seal from the body.
Apply a 1/2″ (1.3 cm) diameter ring of plumbers putty or other
sealant around the underside of the body according to the putty
manufacturer’s instructions.
Insert the body into the fixture drain hole.
Attach the rubber washer (tapered side up) to the body.
Install the flat washer over the threads of the body.
Partially thread the nut onto the body. Do not tighten at this time.
Orient the ″KOHLER″ logo as desired. Adjustment is not possible
after final assembly.
Wrench-tighten the nut.
Apply sealant tape to the top of the tailpiece threads before
screwing it into the body.
Connect the tailpiece to the body.
Remove any excess putty or sealant.

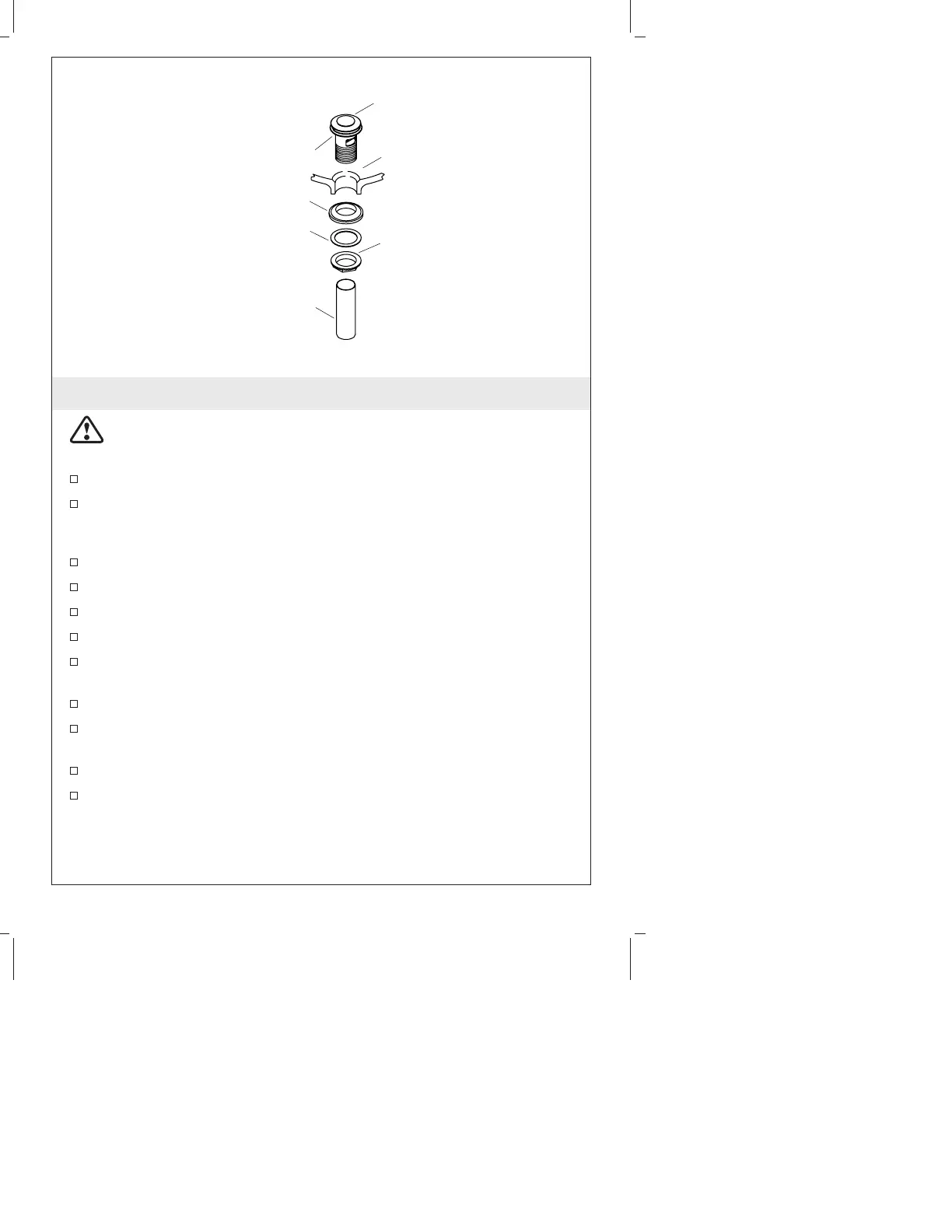

Rubber Washer
Lavatory
Tailpiece
Nut
Body
Flat Washer
Apply plumbers
putty.
1056603-2-A 4 Kohler Co.
