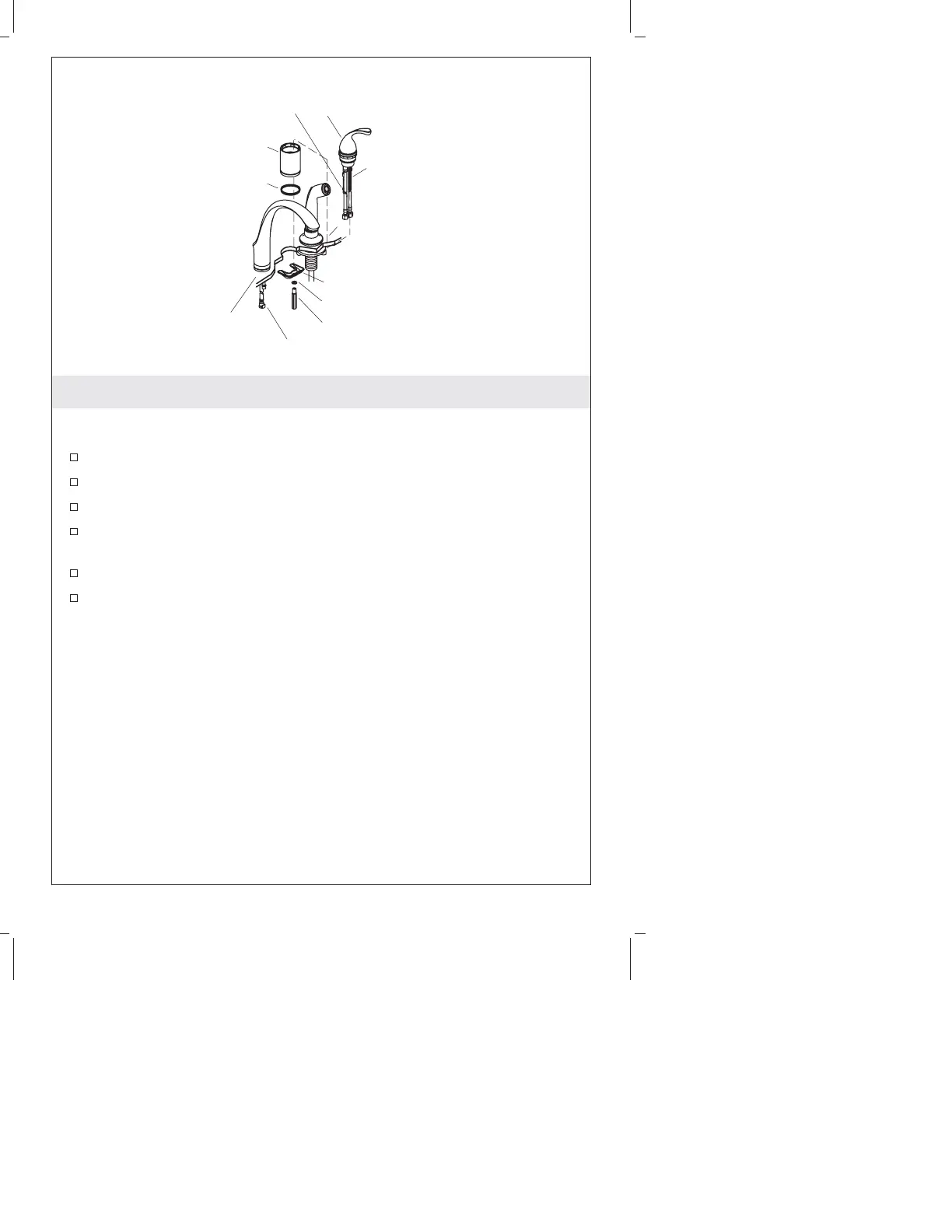

3. Install the Remote Valve
NOTE: The remote valve must be located within 8″ (20.3 cm) of the
spout.
Slide the hub over the supply hoses and onto the remote valve.
Slide the gasket over the supply hoses onto the hub.
Position the remote valve in the desired location.
Assemble the bracket, washer, and nut to the stud from
underneath the sink.
Align the handle and securely tighten the nut.
Connect the inlet hose to the spout connection. Make sure the
O-ring (not shown) in the spout connection is in place.
Sink
Stud
Bracket
Washer
Nut
Gasket
Inlet Hose
Remote
Valve
Hub
Spout
Connection
Kohler Co. 5 1036178-2-F
