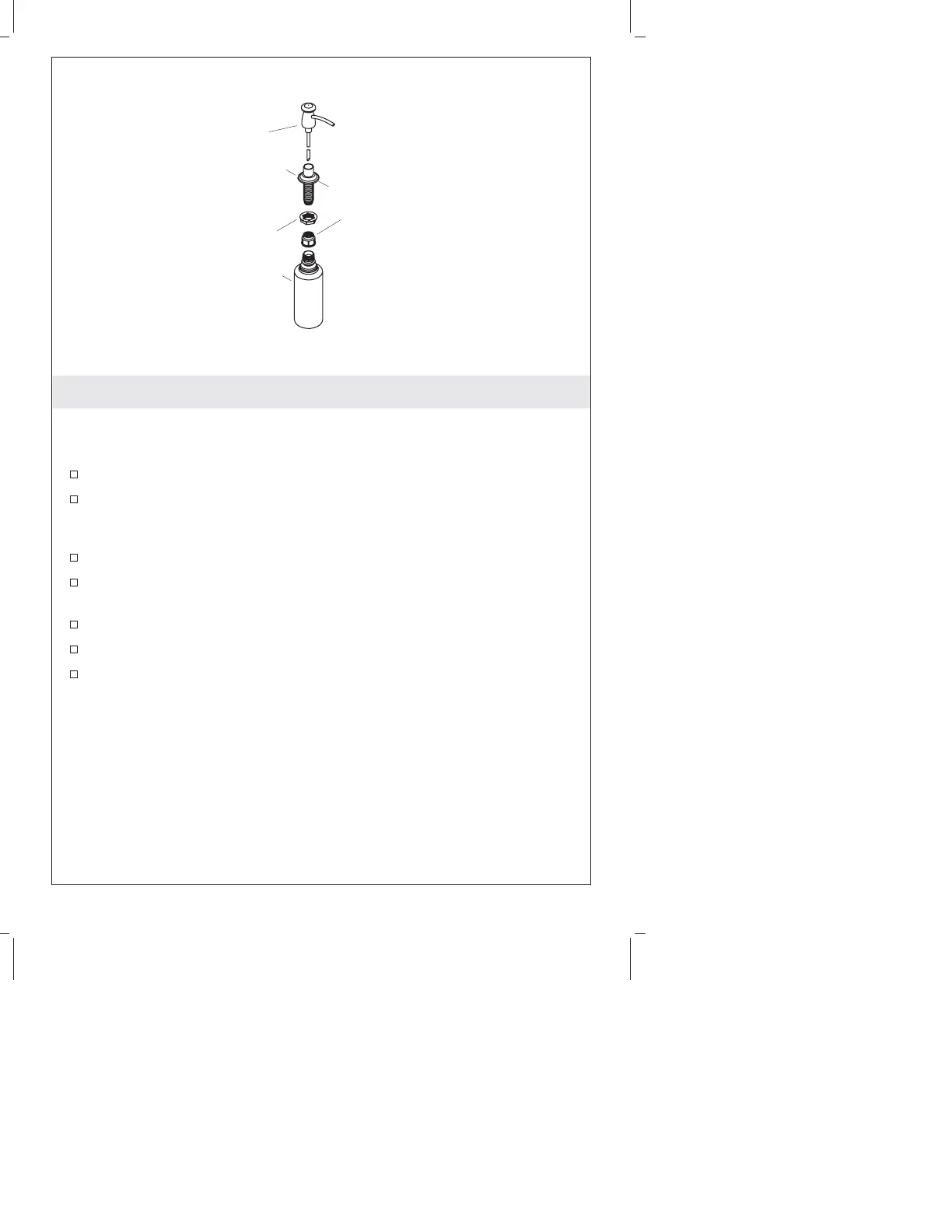

4. Install the Soap Dispenser - Style A
NOTE: If your soap dispenser components do not match the above
illustration, proceed to the next ″Install the Soap Dispenser - Style B″
section.
Remove the nut from the escutcheon.
Apply plumbers putty or other sealant in the groove on the
underside of the escutcheon according to the manufacturer’s
instructions.
Position the escutcheon in the desired mounting hole.
From underneath the sink thread the nut onto the escutcheon.
Tighten the nut until the escutcheon is firmly held in place.
Thread the dispenser bottle onto the escutcheon from below.
Fill the dispenser bottle with soap from above the sink.
Insert the pump assembly into the escutcheon.
Escutcheon
Bottle
Nut
Cap
Apply Plumbers
Putty Here.
Pump
Assembly
1036178-2-F 6 Kohler Co.
