Kohler K-18647 - Page 3

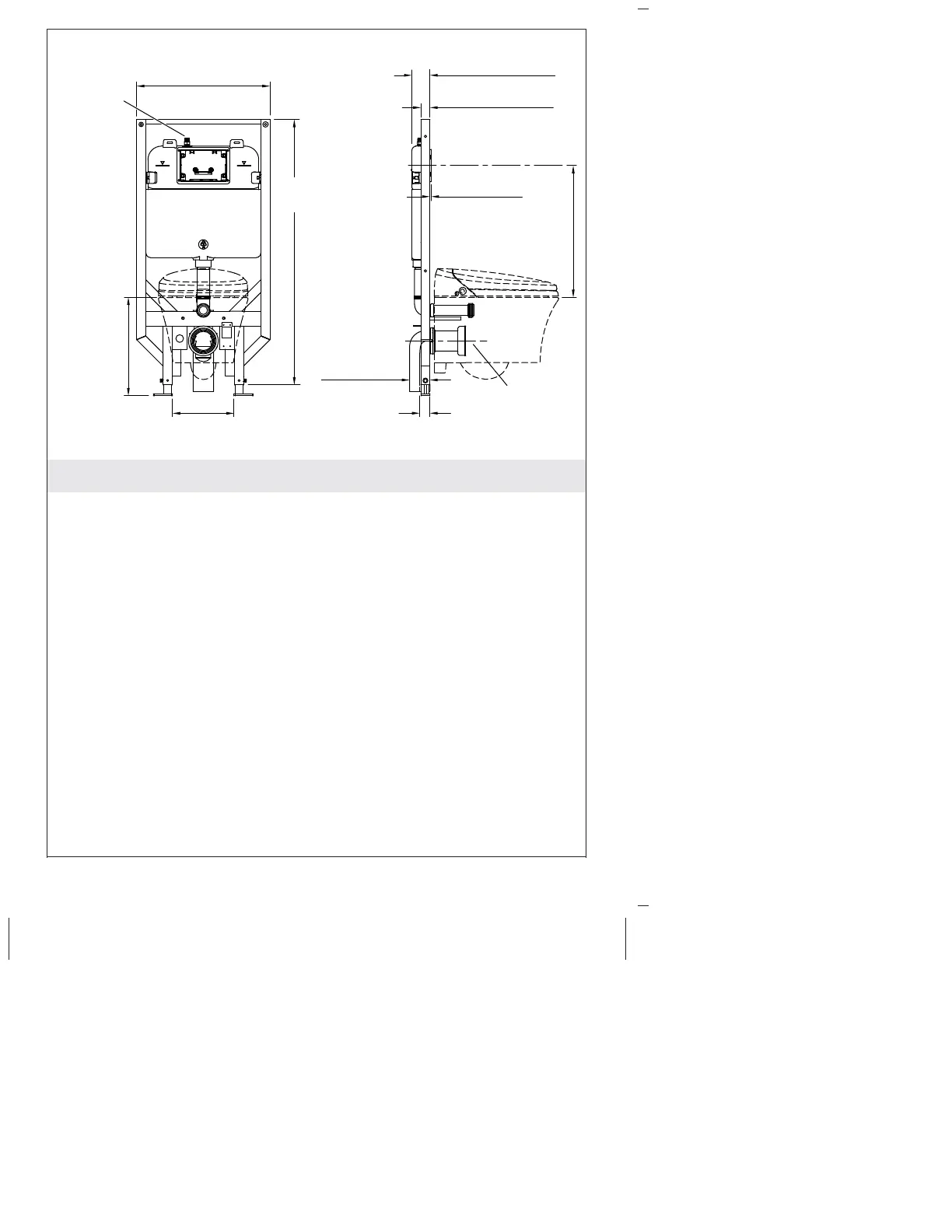

Roughing-In
23-1/4" (590 mm)
50-15/16"
(1294 mm)
1/2" NPT
3-3/16" (80 mm)
1-9/16" (40 mm)
Centerline
of Outlet
2x4 Studs
3-3/4"
(95 mm)
2x6 Studs
5-3/16"
(132 mm)
1-3/4 (44 mm)
1/4" (6 mm)
10-7/8" (276 mm)
15-1/4"
(387 mm)
Min
23"
(584 mm)
Max
28"
(711 mm)
