1. Install the Framing
IMPORTANT! The waste outlet location is critical. Use the correct
dimension (shown above) from the front edge of the framing to the
center of the waste outlet for your installation.
NOTE: The waste outlet pipe may need to be relocated for this
installation.
NOTE: A PVC elbow is supplied with this product. A cast iron
elbow may be required by codes in some areas. The height of the
toilet drain pipe may need to be adjusted if the cast iron elbow is
used.
NOTE: Double studs must be used on either side of the stud
pocket.

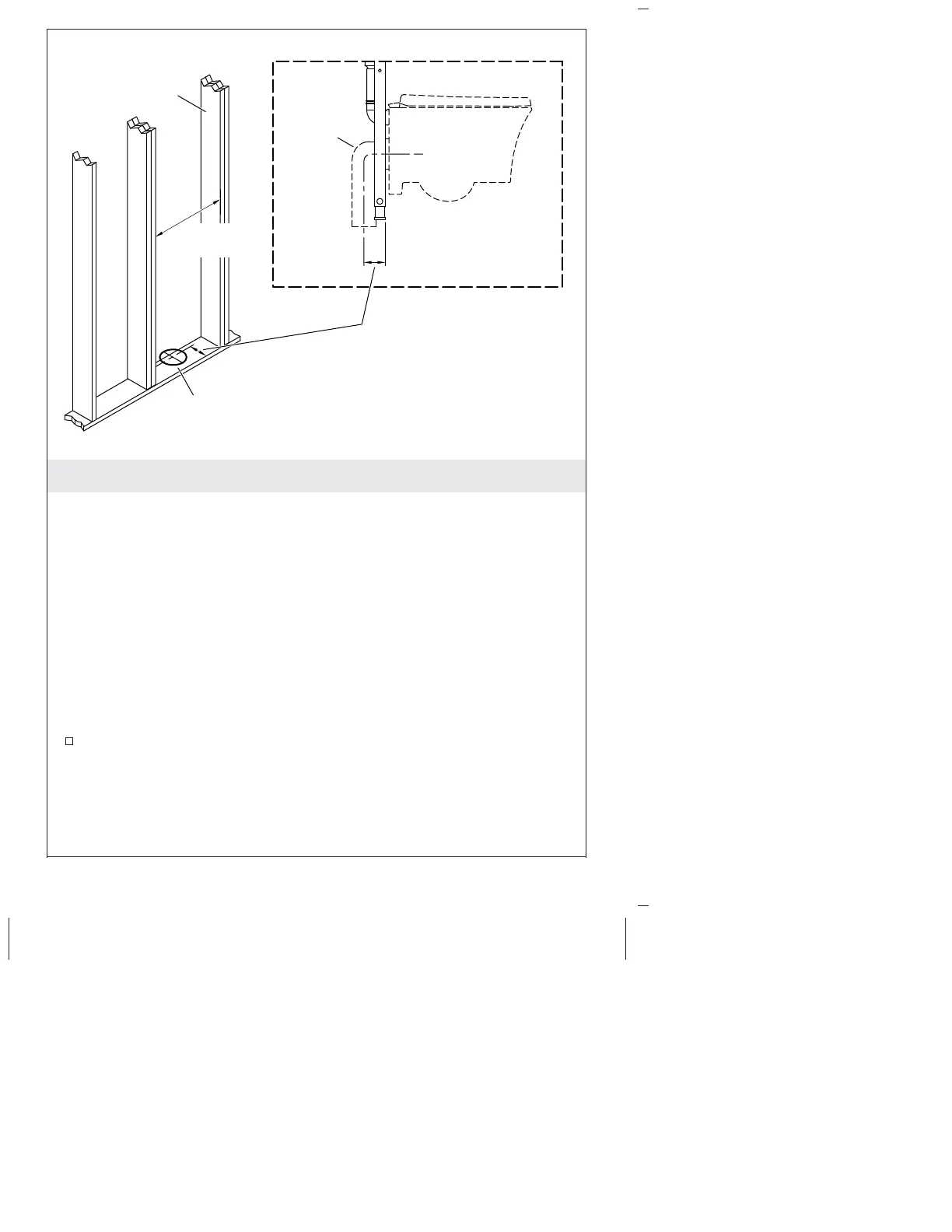

Construct the stud pocket according to the dimensions shown.
2x4 Studs
or 2x6 Studs
23-1/4"
(591 mm)
PVC
Elbow
PVC Waste Outlet
1-3/4" (44 mm) [2x4 Studs]
3-1/4" (83 mm) [2x6 Studs]
Waste Outlet
Cast Iron Outlet
2-7/8" (73 mm) [2x6 Studs]
1247365-2-B 4 Kohler Co.
