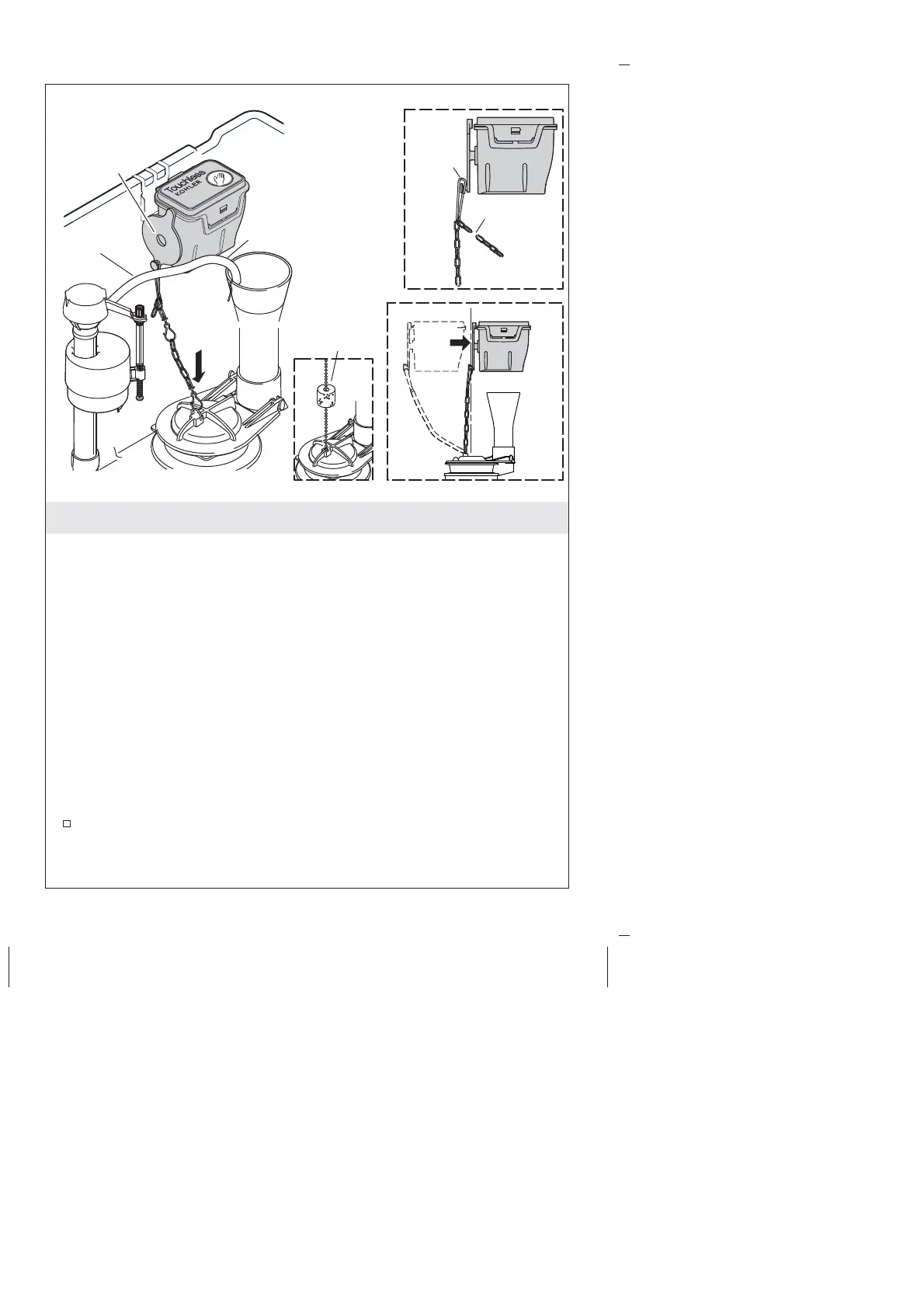

5. Connect the Module - Flapper Style
IMPORTANT! For optimal flushing performance, in models where
a float is integrated in the existing handle chain, the float must not
be removed. Use the chain with the float attached. Extend the chain
using the provided chain if needed.
Connect the Module
IMPORTANT! Risk of product damage. Never position the module
with the chain angled from the wheel to a point under the module.
The chain will wrap onto the wheel axel, resulting in continuously
running water and damage to the module.
IMPORTANT! For optimal flushing performance, there must be less
than 1/4″ (6 mm) of slack in the chain. The chain must run
vertically or at a slight angle away from the flapper. Flushing
performance will decrease if the chain has too much slack or is at an
extreme angle.
Remove the large clip from the chain supplied with the touchless
kit.
Clip
Large
Cut here.
Hose
Adjust location
as needed.
Wheel
Incorrect
Correct
Float
Center
of
Flapper
1216369-2-D 10 Kohler Co.
