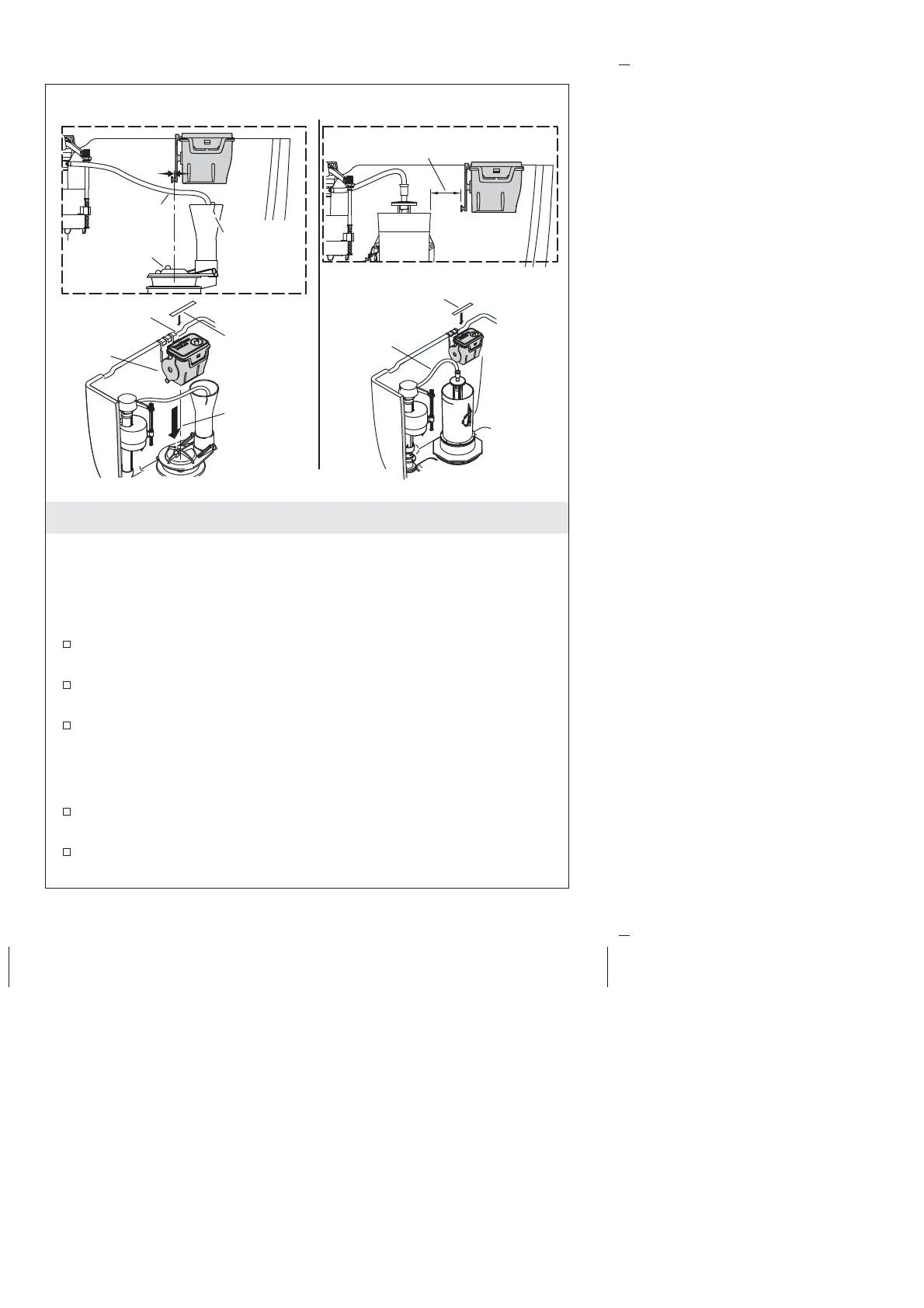

3. Position the Module
Flapper Style
NOTE: For most flapper installations, install the module above the
flapper, with the center of the flapper located directly below the
wheel. On some models of toilets, it may be necessary to relocate
the hose to avoid interference with the module.
If the bracket location is on a vent, install the supplied bridge
over the vent.
Position the module with the wheel directly above the center of
the flapper.
Confirm the hose does not interfere with the rotation of the wheel
(manually rotate the wheel). Adjust the position of the hose as
needed.
Canister Style
If the bracket location is over a vent, install the supplied bridge
over the vent to keep the module level.
Locate the module 1″ (25 mm) to the side of the canister away
from the fill valve.
Flapper
Center
of Flapper
Canister StyleFlapper Style
1" (25 mm)
Hose
Hose
Overflow
Vent
Bridge
Bridge
Wheel
1216369-2-D 8 Kohler Co.
