2. Install the Tubing (Recommended)
NOTE: PVC ings and tubes (not provided) can be aached to the mounting
bracket to route the spout cables and tubes to the control box. Consult the
specication sheet to determine the control box location.

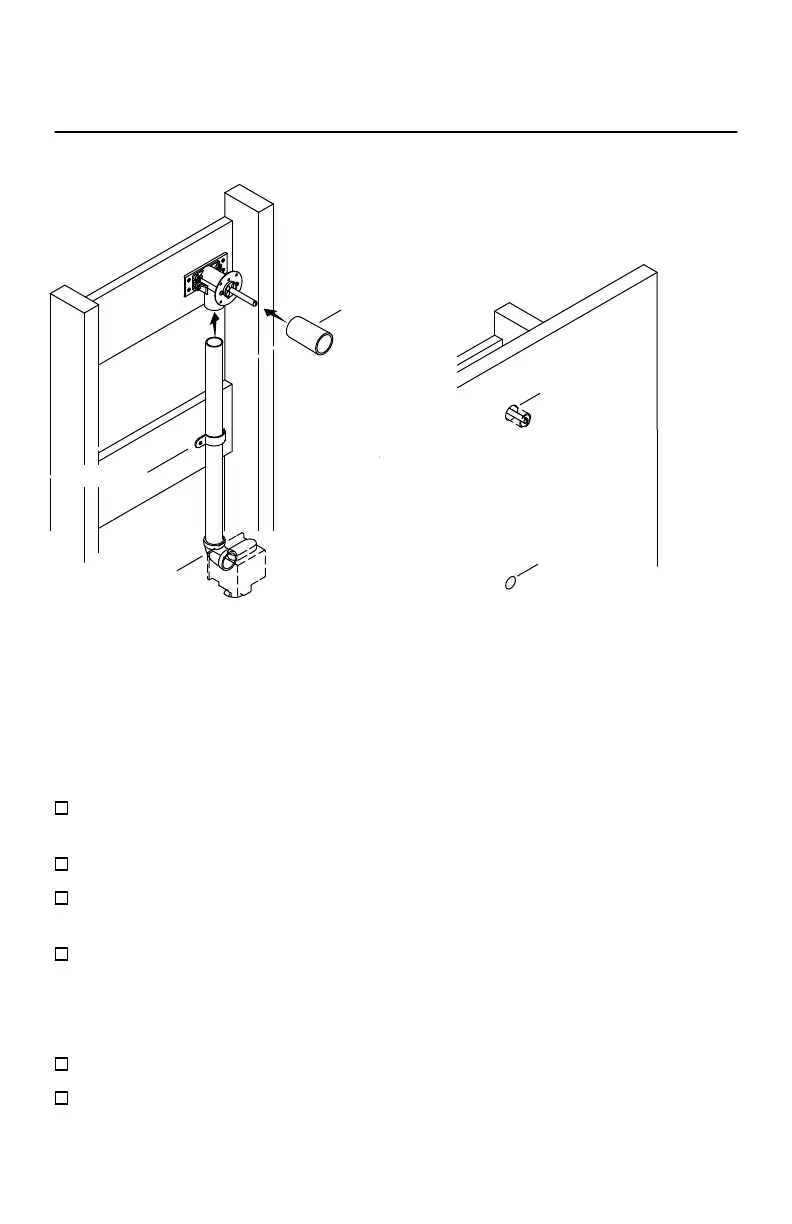

Glue and connect a straight PVC tube to the mounting bracket as shown. Verify
that the tube is long enough to reach the control box.
Secure the PVC tube onto the mounting bracket with u-clamps (not provided).
Glue a 90 degree PVC elbow at the end of the PVC tube at the control box
installation location.
Reinstall the plaster guard over the mounting pin.
NOTE: The inished wall thickness must be 1/4" (6 mm) minimum to 1-3/8" (35 mm)
maximum.
Finish the wall with a 1-1/4" (32 mm) hole for the spout.
Finish the wall with a 1-1/4" (32 mm) hole for the cables and tubing.
Kohler Co. 7
1419080-2-A
Plaster
Guard
U-Clamp
90° Elbow
1-1-1/
(32 mm)
1-1-1/
(32 mm)
