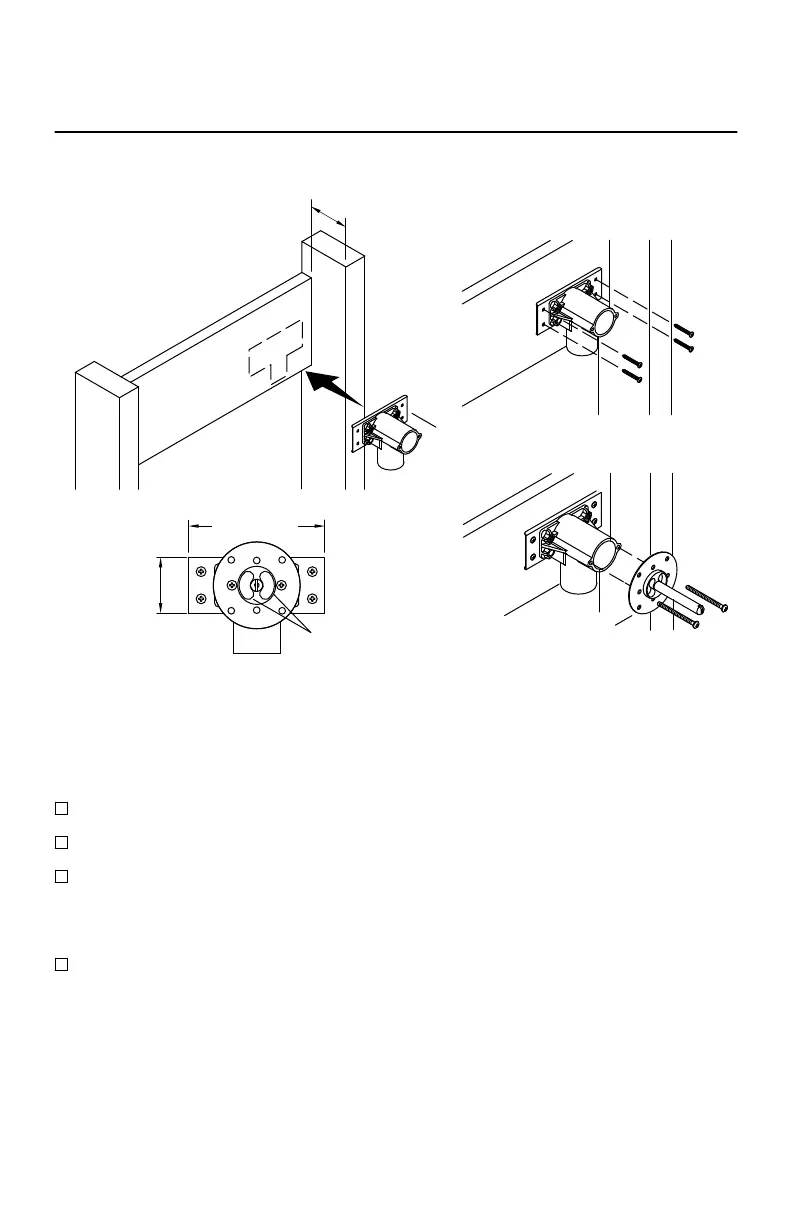

1. Install the Mounting Bracket
4-3/4"
(121 mm)
1-3/4"
(44 mm)
2-3/4" (70 mm) Min
3" (76 mm) Max
Mounting
Bracket
Slots
Mounting Pin
IMPORTANT! Your product may appear dierent than illustrated. The installation
procedure is the same. Consult the specication sheet for rough-in dimensions for
your model requirements.
Construct the framing for your installation.
Secure the mounting bracket to the framing using four wood screws- size #8.
Remove the plaster guard.
NOTE: Verify the slot orientation as shown above.
Secure the mounting pin to the mounting bracket using the two screws provided.
1419080-2-A
6 Kohler Co.
