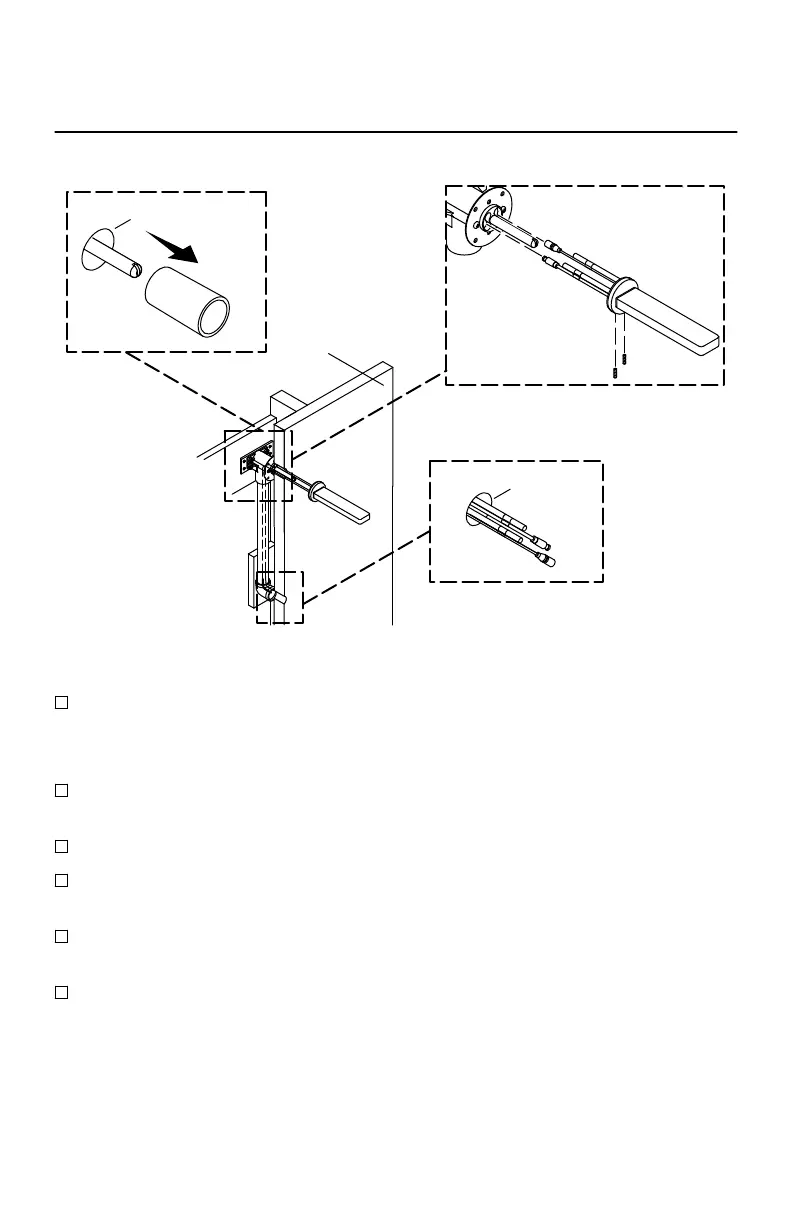

4. Secure the Spout
1-1/4" OD
Finished
Wall
1-1/4" OD
Remove the plaster guard.
NOTE: Avoid pinching and twisting the cables and tubes when installing the spout.
Feed the cables and tubes from the spout through the mounting bracket and
down through the PVC tubing.
Slide the spout assembly onto the mounting pin until ush with the wall.
Pull the cables and tubes from the spout out through the hole leading to the
control box location.
If desired, add sealant to the underside of the escutcheon as needed. Wipe away
any excess sealant.
Tighten the two setscrews (provided) to secure the spout to the mounting bracket.
