Kohler K-2972 - Page 8

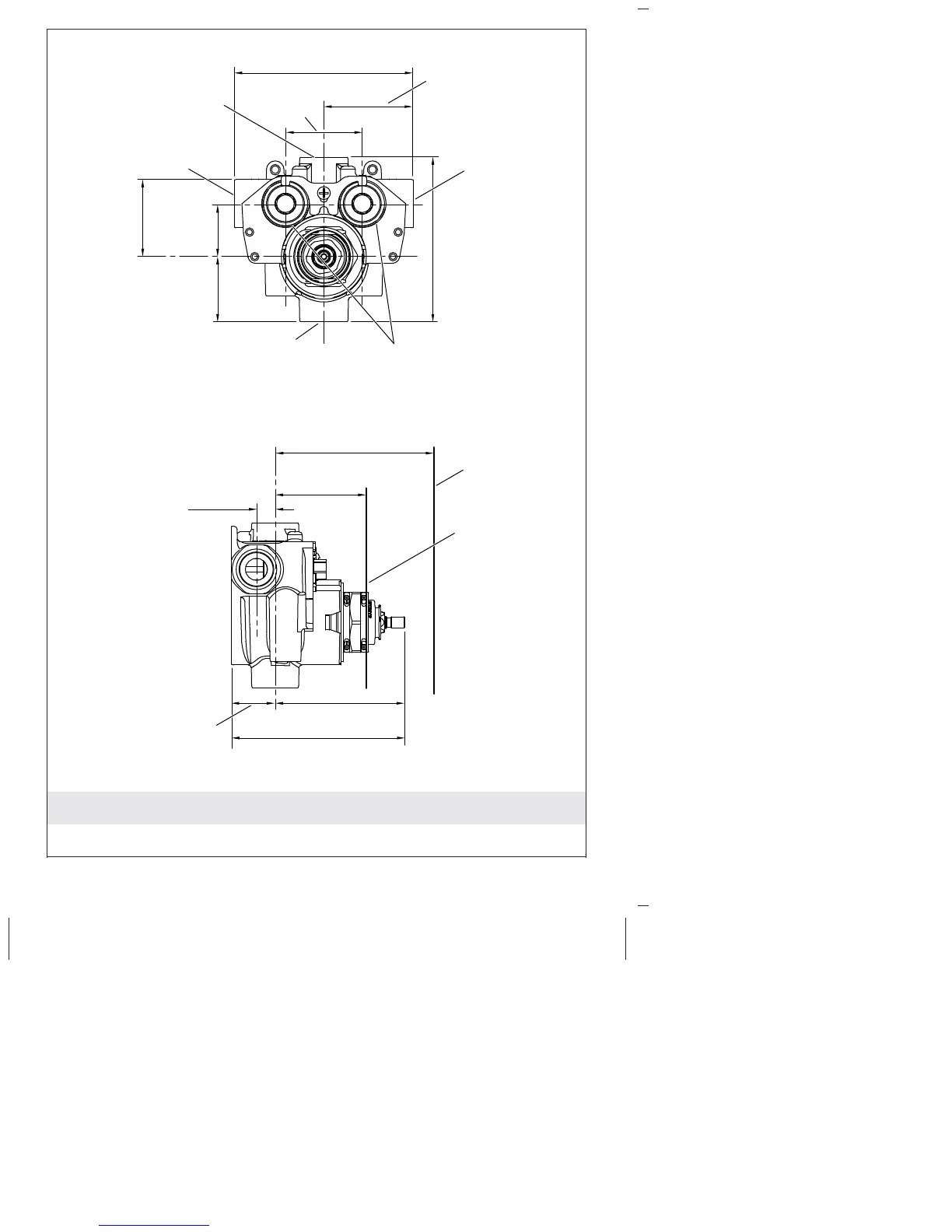

K-2975 - 3/4″ Valve Roughing-In
1/2"
(13 mm)
3-1/2" (89 mm)
4-5/8" (117 mm)
1-3/16" (30 mm)
Max
Finished Wall
Min
Finished Wall
2-7/16"
(62 mm)
3-3/4" (95 mm)
3/4" NPT
Bath Outlet
Stop
3/4" NPT
Cold Inlet
4-7/16"
(113 mm)
2-1/16"
(52 mm)
1-7/16"
(37 mm)
1-1/8"
(29 mm)
3/4" NPT
Hot Inlet
3/4" NPT
Shower Outlet
2-1/16"
(52 mm)
2-3/8" (60 mm)
4-13/16" (122 mm)
1205551-2-C 8 Kohler Co.
