Kohler K-3492 Installation And Care Guide

Kohler Co. 3 1035530-X2-A
1. Roughing-In
DANGER: Risk of electric shock. Disconnect power before servicing.
DANGER: Risk of electrical shock. For plug-in installations/wall-mounted electrical supply: Connect only
to a properly-grounded, grounding-type receptacle which is protected by a Ground-Fault Circuit-Interrupter
(GFCI). Do not remove the grounding pin or use a grounding adapter.
DANGER: Risk of electrical shock. For hardwire installations/through-floor electrical supply: Connect only
to a properly-grounded, dedicated 220 VAC, 15 A, 50 Hz circuit protected by a Class A Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
NOTE: This product is designed for installation with the electrical and water supplies located through either the wall
or the floor.

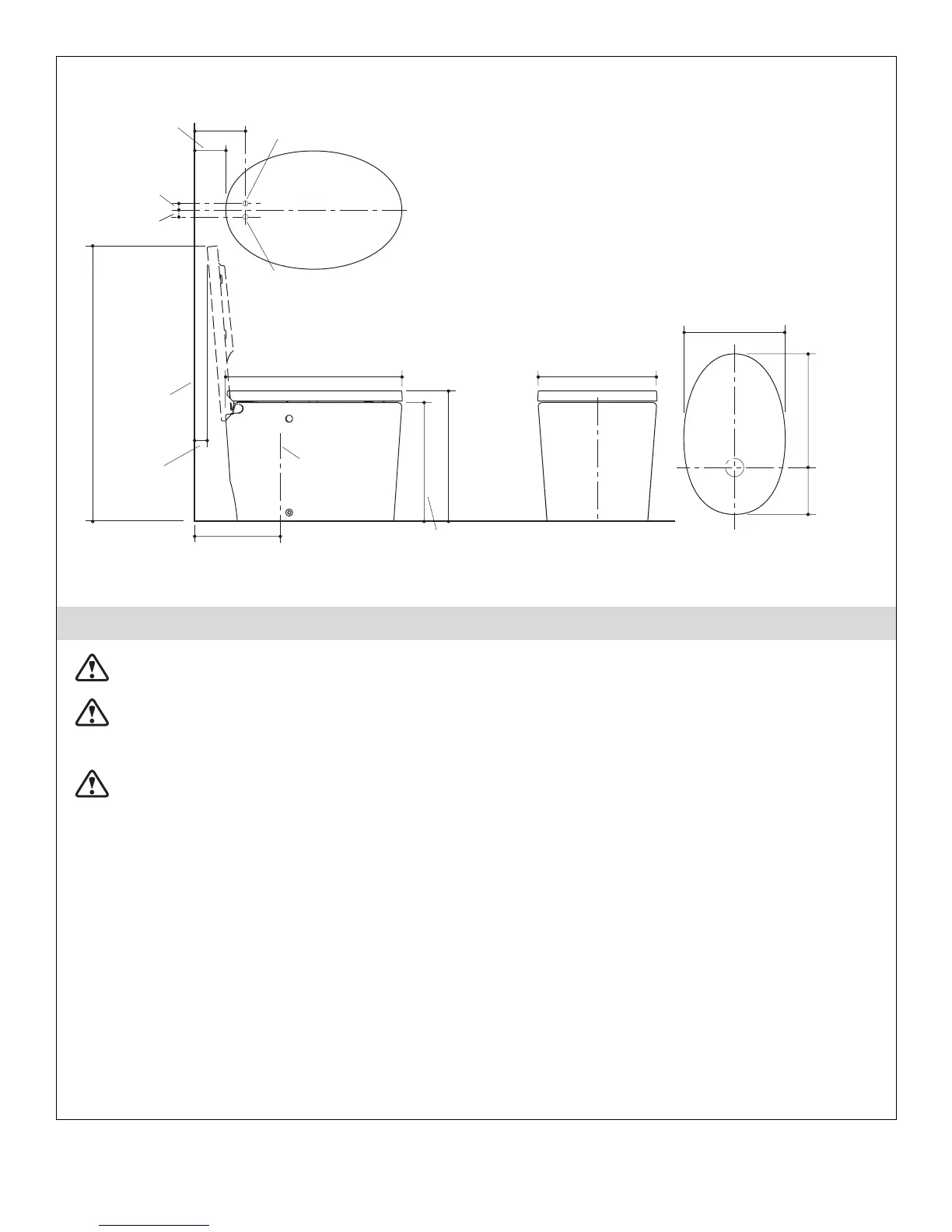

24-5/8" (62.5 cm)
L of Outlet
16-1/2" (41.9 cm)
16-5/8"
(42.2 cm)
18-1/4"
(46.4 cm)
Wall
14-1/8"
(35.9 cm)
12"
(30.5 cm)
Front of Bowl
C
3/8" Compression
Supply
6-5/8"
(16.8 cm)
15-7/8"
(40.3 cm)
7-1/4"
(18.4 cm)
4-3/8"
(11.1 cm)
38-3/4"
(98.4 cm)
Hardwire
Electrical Supply
Both the electrical and water supplies
can be installed on either the wall or
the floor. Follow the information for
your particular installation.
3/4" (1.9 cm)
3/4" (1.9 cm)
3/4" (1.9 cm)
