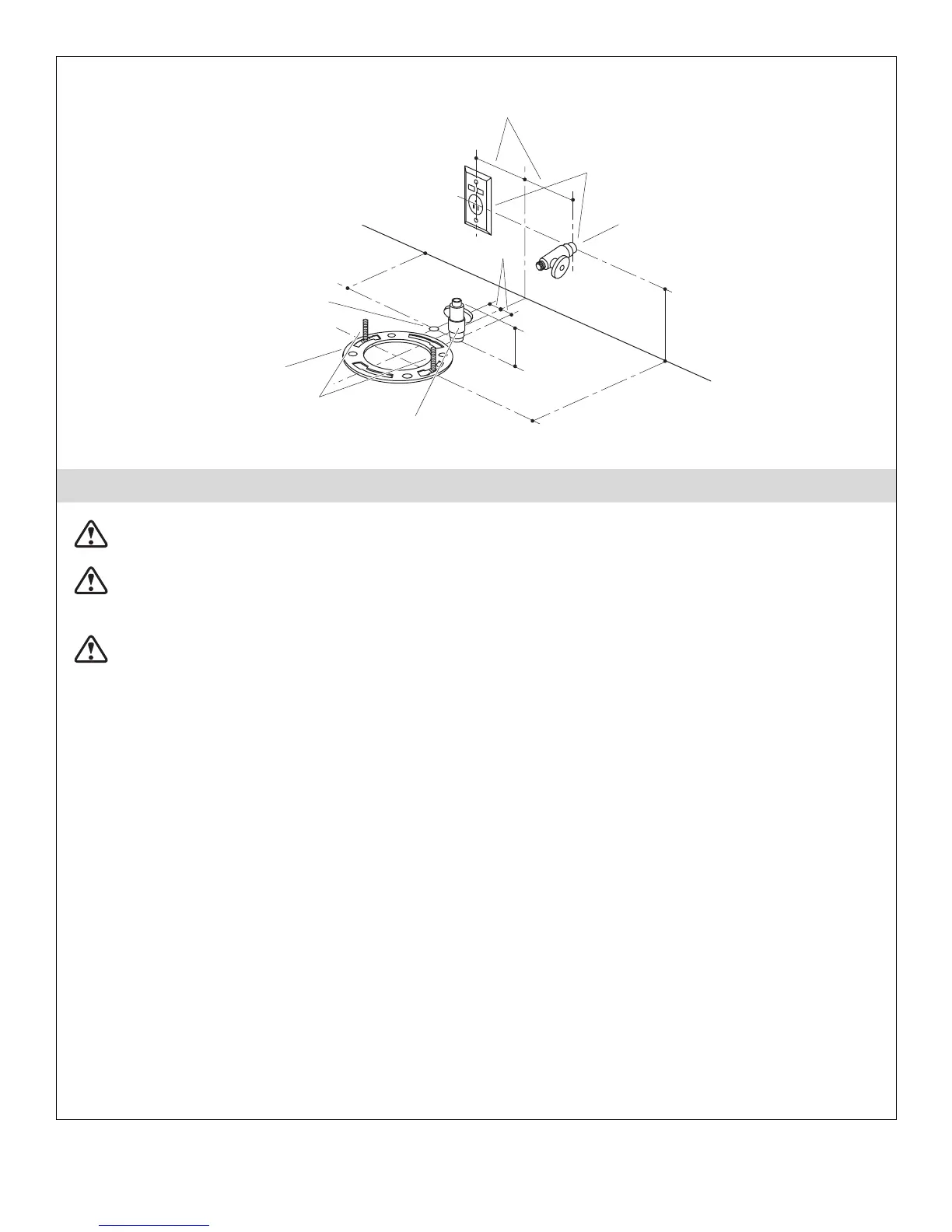

2. Install the Electrical Service and Water Supply
DANGER: Risk of electric shock. Disconnect power before servicing.
7-1/4" (18.4 cm)
GFCI-Protected
Receptacle
The wall locations of the
electrical and water supply
are interchangeable.
T-Bolts
6"
(15.2 cm)
12" (30.5 cm)
Floor Flange
2-3/4" (7 cm)
3/4" (1.9 cm)
2-3/4" (7 cm)
Maximum Height
Supply Stop
Supply Stop
Hardwire
Electrical Supply
DANGER: Risk of electrical shock. For plug-in installations/wall-mounted electrical supply: Connect only
to a properly-grounded, grounding-type receptacle which is protected by a Ground-Fault Circuit-Interrupter
(GFCI). Do not remove the grounding pin or use a grounding adapter.
DANGER: Risk of electrical shock. For hardwire installations/through-floor electrical supply: Connect only
to a properly-grounded, dedicated 220 VAC, 15 A, 50 Hz circuit protected by a Class A Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
Install the Electrical Service
NOTE: This product is designed for installation with the electrical supply located through either the wall or the floor.
Both types are illustrated. Refer to the dimensional information for your chosen installation.
Follow the dimensional information exactly when installing a hardwire electrical supply.
Install the electrical supply for your chosen installation.
Install the Water Supply
NOTE: This product is designed for installation with the water supply located through either the wall or the floor.
Both types are illustrated. Refer to the dimensional information for your chosen installation.
NOTE: A floor mounted water supply stop may be no higher than 2-3/4” (7 cm) from the floor.
Install the water supply. If you are installing a floor supply, study the dimensional information illustrated carefully.
To Next Page
