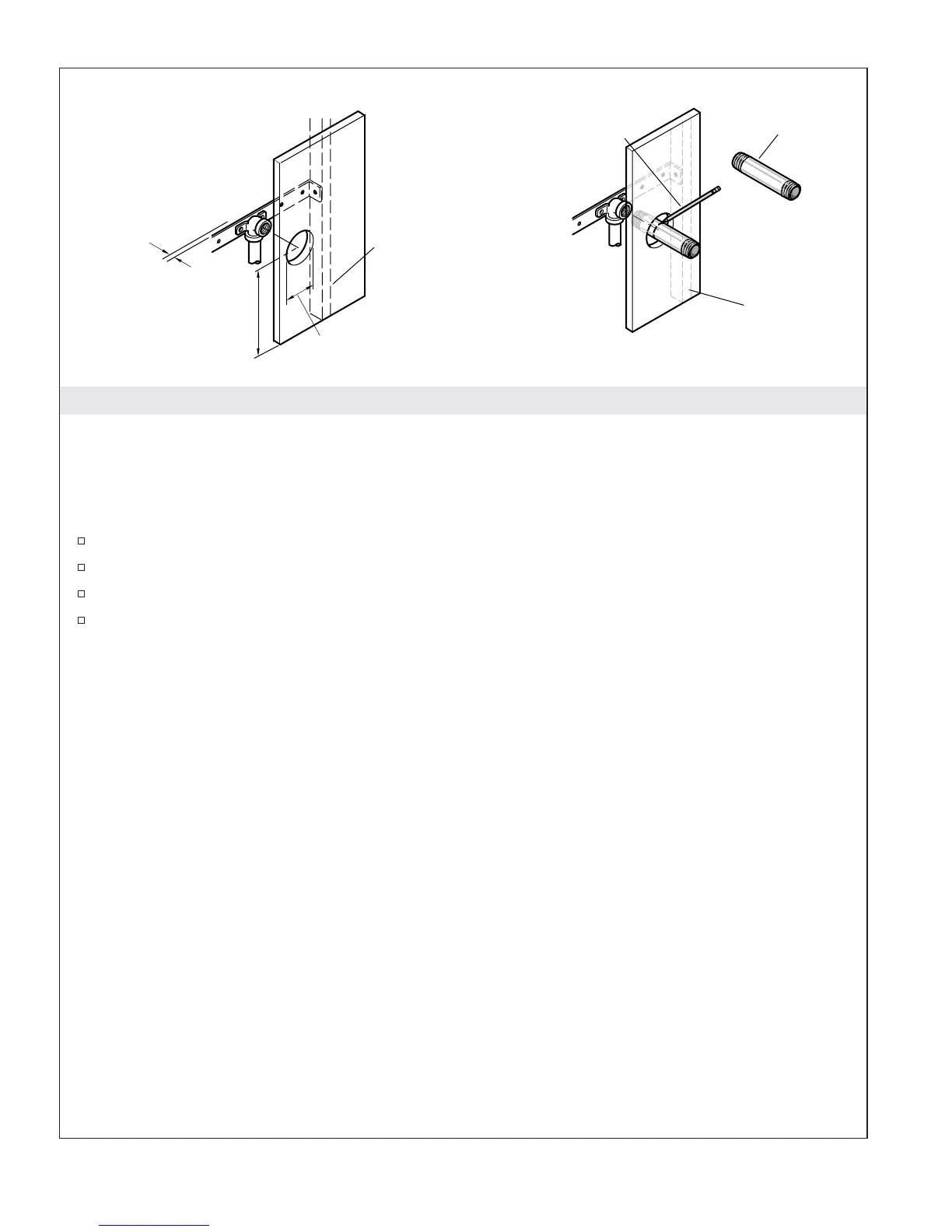

2. Prepare the Site
NOTE: This section continues the installation described in the steam generator installation instructions.
Refer to the steam generator installation instructions for more information, if needed.
NOTE: If two steam heads are used, there must be at least 12-1/2 (318 mm) between the center of each
hole. The steam heads do not need to be located on the same wall. Two steam heads can be mounted on
different walls to improve steam distribution.
Install the finished wall.
Drill or cut a 2-1/2 (64 mm) hole centered around the elbow in the wall.
Mark the temporary pipe nipple at the finished wall surface.
Remove the temporary pipe nipple from the elbow.
Wall Stud
2-1/2" (64 mm)
6" (152 mm) from Floor
Provide clearance
from wall.
Mark the nipple even
with finished wall.
Temporary
Nipple
Wall Stud
Kohler Co. 5 1230489-2-C
