Kohler K-657 Installation Guide

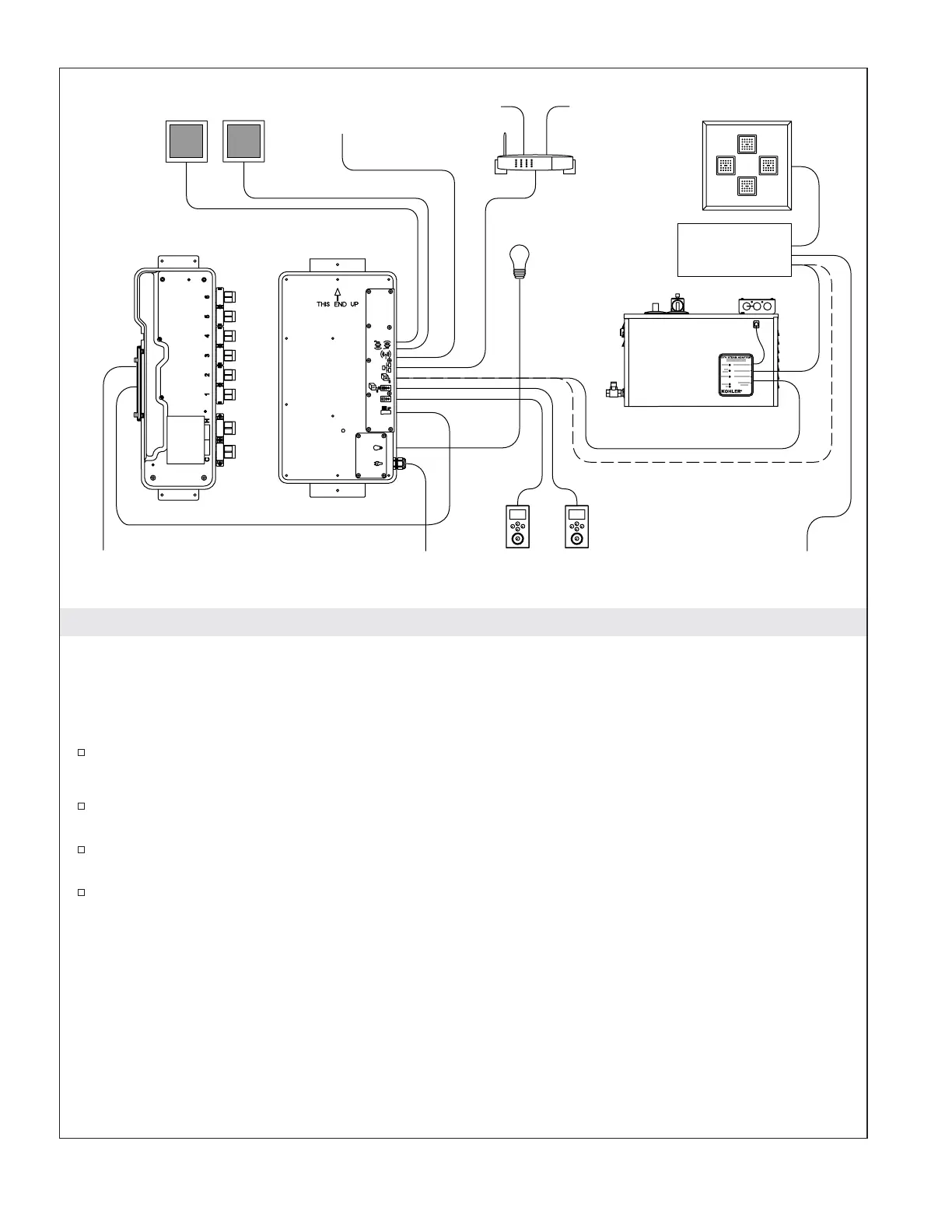

1. Components
The digital interface(s) control(s) the digital mixing valve, steam generator, lighted rain panel, and music
through the media module.
Cables are supplied for connecting the digital mixing valve, speakers, audio line in and Ethernet to the
media module. User interface cables are included with the valve and the user interfaces
Determine all required components along with their installation locations before beginning this
installation.
Locate the primary interface (8-pin connection) inside the shower enclosure and the optional
auxiliary interface (4-pin connection) outside the shower enclosure.
Verify the components are located so the connection cables easily span the distance between the
connection points.
Refer to the installation guides packed with each product for specific installation needs.
Speakers
AC Power
AC Power
Digital Mixing Valve Media Module
Lighted Rain Panel
Steam Generator
AC Power
Router
Digital Interfaces
Computer Internet
Incandescent
Lighting
Audio
Source
If a steam generator is not
used, connect the PDS
directly to the media box.
Power Data
Supply (PDS)
Steam
Adapter
Kohler Co. 5 1069764-2-A
