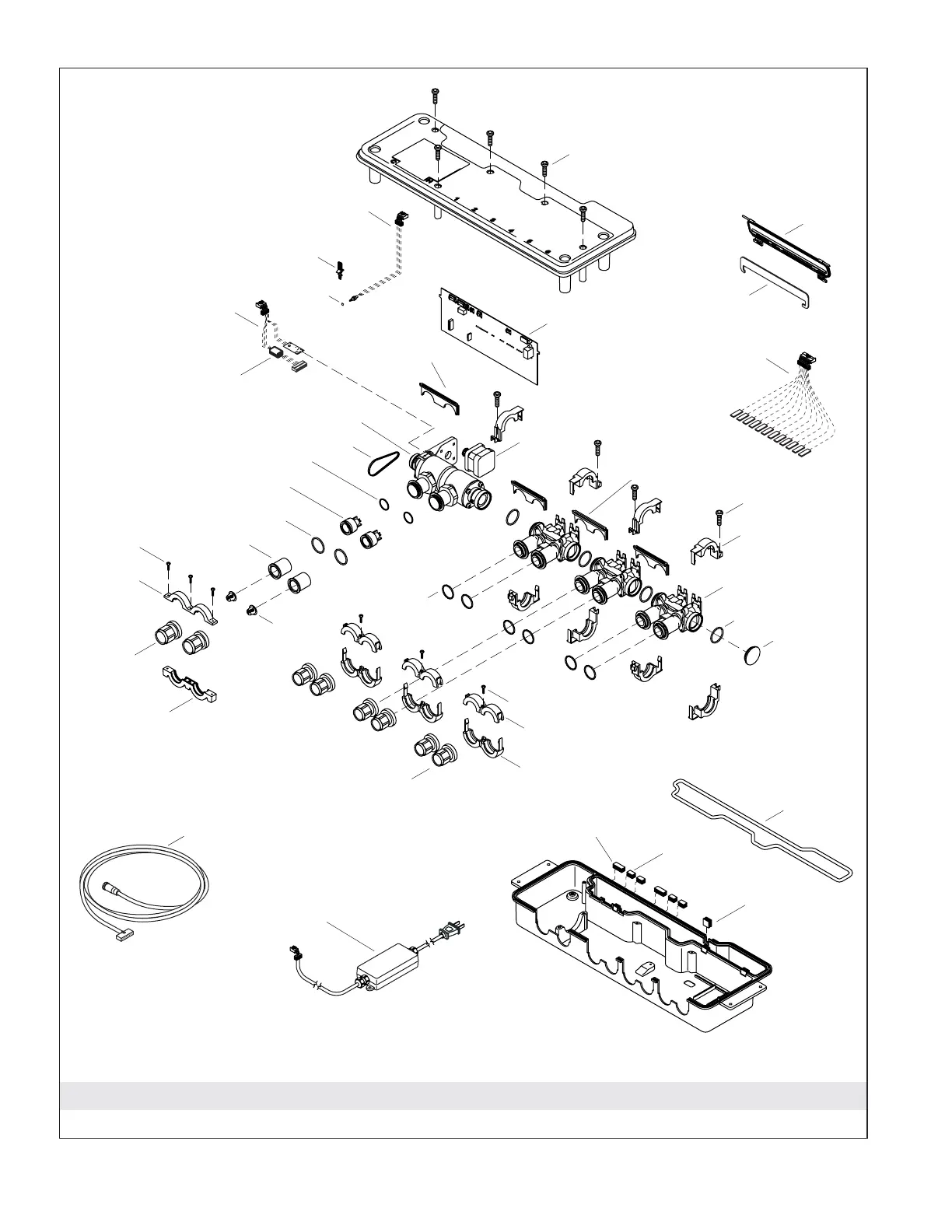

Kohler K-682 - Service and Parts; Component Identification Diagram

Service Parts
**Finish/color code must be specified when ordering
Power Supply
Clip
Internal Clamp
Cover
Circuit Board
Cover Seal
Outlet Case Insert
Inlet Case Insert
Seal
Solenoid
Solenoid O-Ring
Adapter O-Ring
Check Valve O-Ring
O-Ring
Cap
Mixer Valve
Strainer
Adapter (1/2" NPT)
Cover Screw
Clamp Screw
Inlet Screw
Grommet
Grommet
Grommet
Thermistor
Wiring Loom
Solenoid Wiring
Loom
Adapter
(3/4" NPT)
Check Valve
Cartridge
Inlet Clamp
Bottom
Outlet Clamp
Bottom
Outlet
Clamp Top
Inlet Clamp
Top
Ferrite
Belt
Motor
Outlet Screw
Motor Wiring Loom
Adapter O-Ring
8-Pin Cable Assembly
1043183-5-B 8 Kohler Co.
