3. Two-Way Installation
IMPORTANT! This valve is not intended to be used as a shut-off
valve. Do not plug any outlets without completing the two-way
conversion.

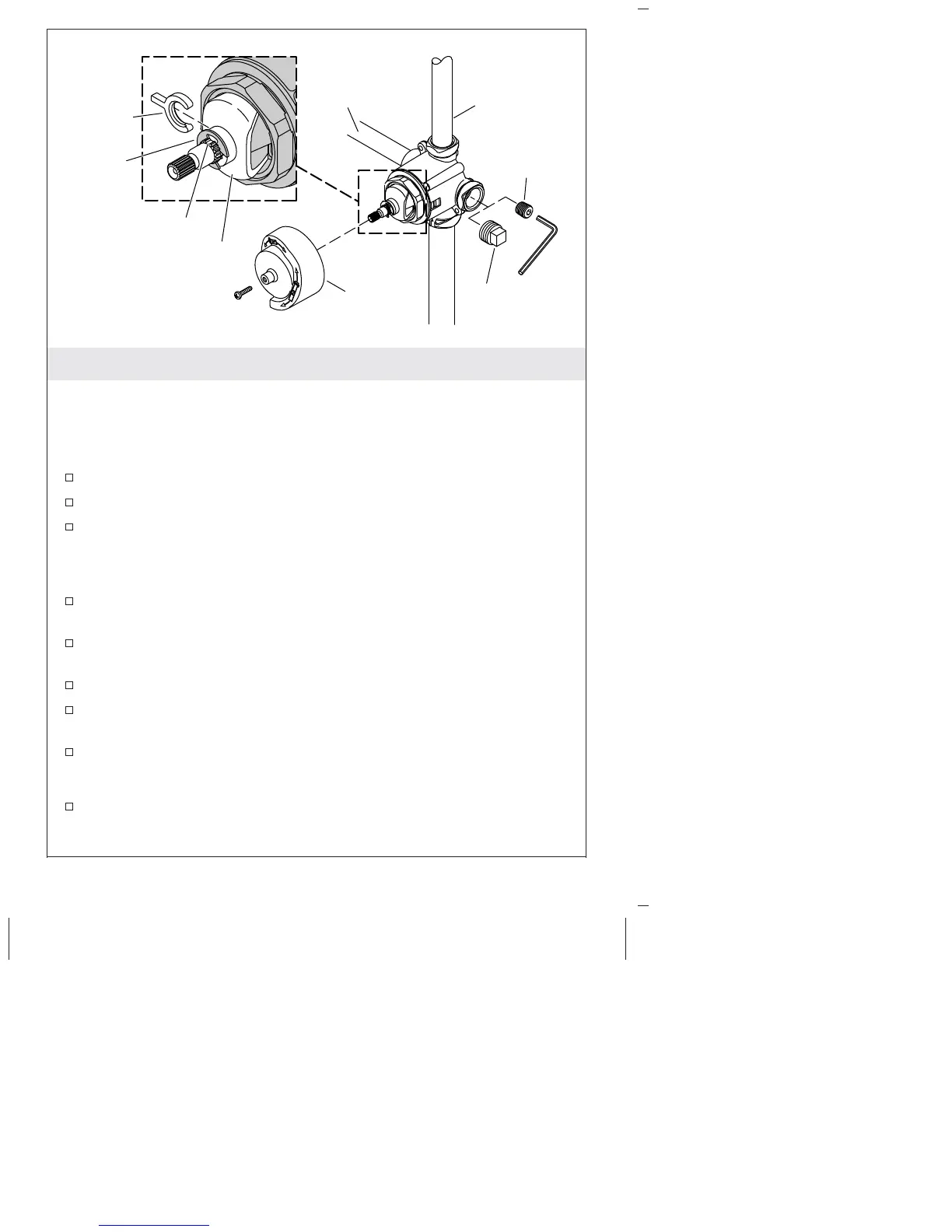

Two-Way Conversion
Temporarily remove the plaster guard.
Rotate the detent until positioned vertically, as illustrated.
Verify the missing tooth is oriented up.
IMPORTANT! If the internal plug is not removed, the finished wall
will need to be removed to perform this step at a later date.
Using a 1/4″ hex wrench, remove and discard the internal plug
from inside the valve body.
Plug the unused port (left or right) with a 1/2″ NPT plug (not
included).
Using a pliers, remove the spacer from beneath the detent.
Push the detent in; ensure the points of the detent engage the
notches of the valve cartridge.
Install the spacer above the detent and under the E-ring.
Install the Two-Way Valve
Install 1/2″ copper tubing or piping for both accessories. Securely
fasten the piping and outlet ells to the framing.
Accessory #1
Water Line
Accessory #2
Water Line
Spacer
1/2"
NPT Plug
E-Ring
Plaster
Guard
Detent
Missing Tooth
Internal
Plug
Kohler Co. 5 1205548-2-B
