Kohler K-8033 Installation Guide

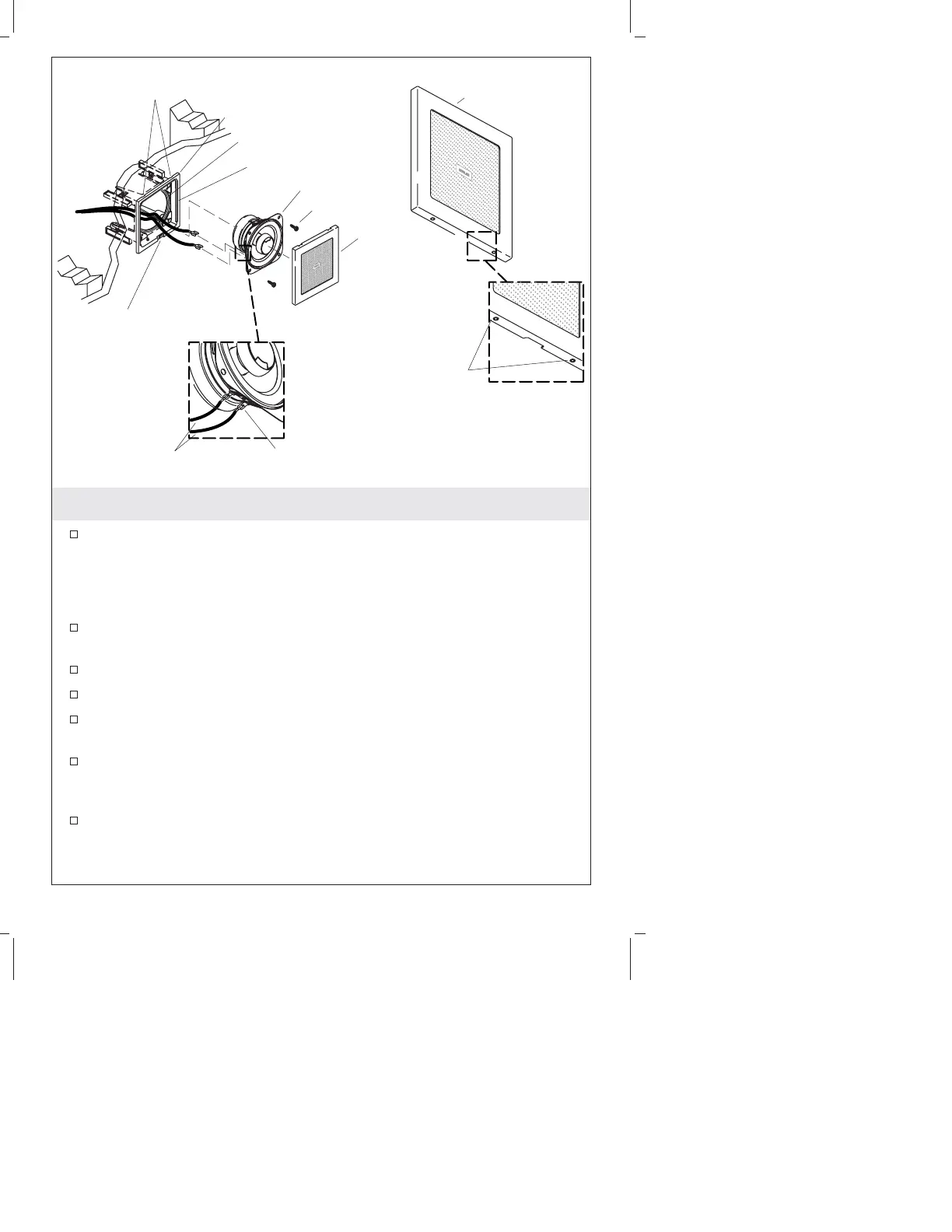

5. Complete the Speaker Installation
Connect the speaker wires to the speakers. Connections may be
made by soldering the wires to the appropriate ″+″ or ″-″
connection OR by using properly crimped, quick disconnect
receptacles (not provided); a 0.187″ x 0.020″ receptacle for the ″+″
connection and a 0.110″ x 0.020″ receptacle for the ″-″ connection.
Carefully feed the speaker wire through the support and into the
wall cavity.
Verify the gaskets are in place.
Slide the body of the speaker into the support.
Align the holes of the speaker with the holes in the support.
Secure the speaker with the screws.
Hook the top edge of the cover into the grooves in the top of the
support. Verify the holes in the bottom of the cover align with the
setscrews.
To secure the cover, unthread the setscrews from the support
through the holes in the cover until the setscrews are just past
flush with the surface of the cover.
Support
Drain Slot
Screw
Cover
Installed Cover
Cover Gasket
Cover Slots
Speaker
Speaker Gasket
Speaker Wires
Connect speaker wires.
Unthread the setscrews
to secure the cover.
