Kohler K-9132 Installation And Care Guide

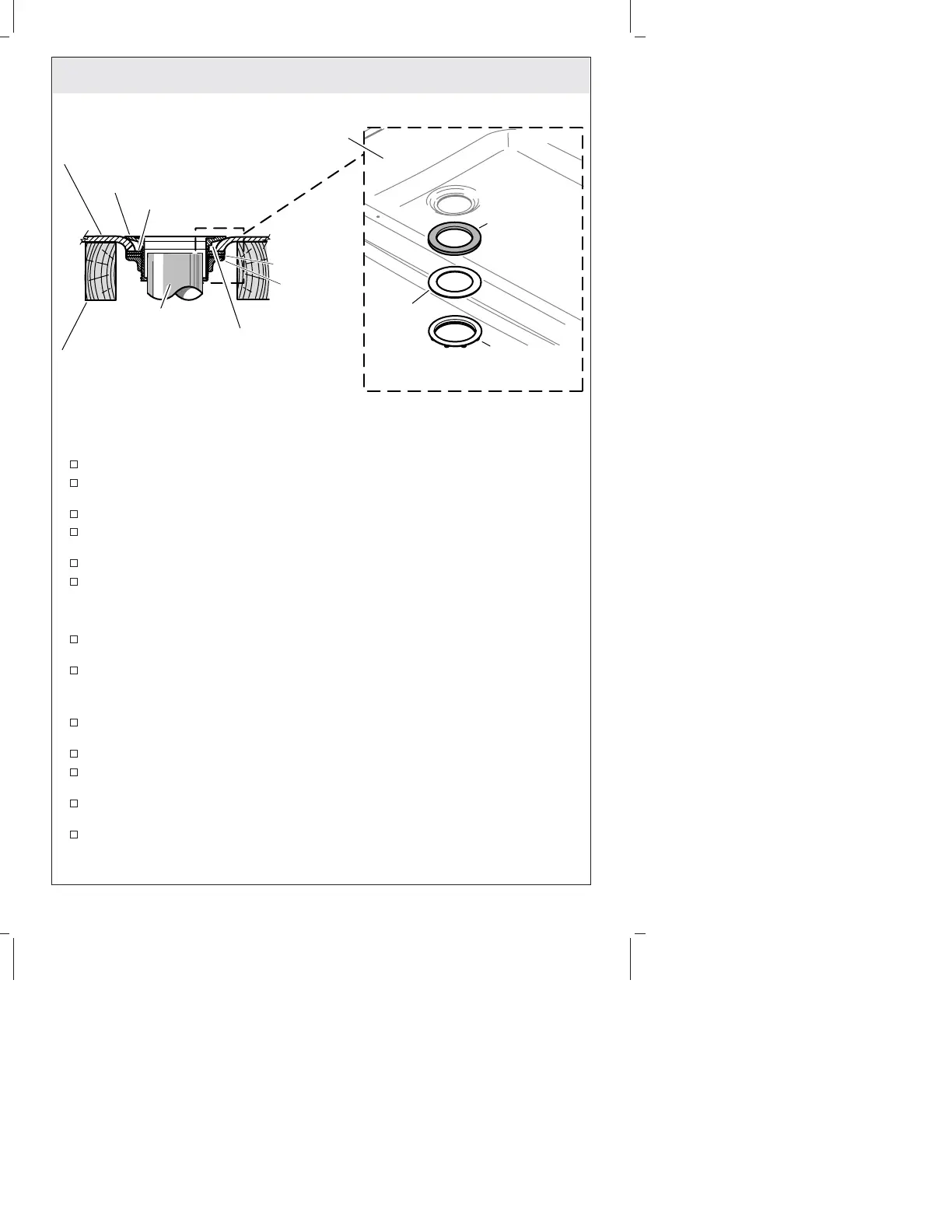

1. Install the Drain
NOTE: To ease the drain installation, it is recommended that the drain be installed to
the fixture before installing the fixture.
Installation Before Installing the Fixture (Recommended)
Add a support block to the shower fixture on each side of the drain hole.
Apply a bead of plumbers putty to the underside of the flange on the strainer
body.
Insert the strainer body into the drain hole of the fixture.
From the underside of the fixture, place the gasket and washer onto the strainer
body.
Using a pipe wrench, secure the drain to the fixture with the nut.
Properly seat the fixture into the pocket of the subfloor or slab and over the drain
pipe.
NOTE: Refer to the instructions packed with the fixture for proper drain pipe height.
Verify the drain pipe extends the required height into the strainer body. Adjust as
needed.
Verify the drain pipe is centered in the strainer body. Adjust as needed.
Installation After Installing the Fixture
From the underside of the fixture, place the gasket and washer around the drain
hole.
Position the gasket, washer, and nut on the drain pipe.
Properly seat the fixture into the pocket of the subfloor or slab and over the drain
pipe.
Apply a bead of plumbers putty to the underside of the flange on the strainer
body.
Thread the strainer body into the nut of the fixture.
Fixture
Appareil
Unidad
Fixture/Appareil/Unidad
Support Block
Bloc de support
Bloque de soporte
Apply plumbers putty.
Appliquer du mastic
de plombier.
Aplique masilla de
plomería.
Drain Pipe
Blocs de support
Bloques de soporte
Strainer Body Flange
Bride de corps de la crépine
Brida del cuerpo de la coladera
Gasket
Joint
Empaque
Washer
Rondelle
Arandela
Nut
Écrou
Tuerca
Gasket/Joint/Empaque
Washer
Rondelle
Arandela
Nut
Écrou
Tuerca
Kohler Co. 5 1114755-2-B
