Roughing-In

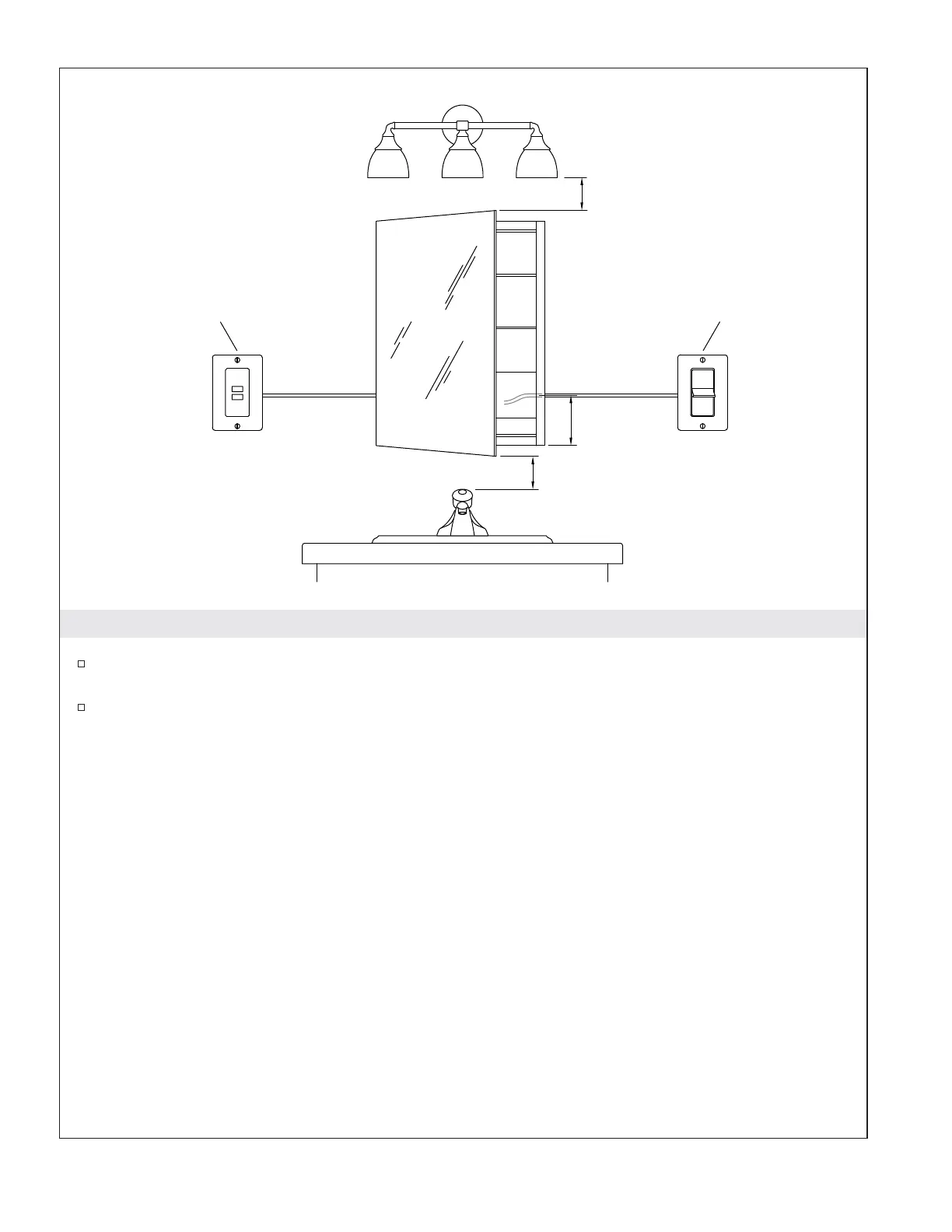

When determining the height of the product, verify that the door will clear all obstacles (such as a
faucet or light fixture). Provide a minimum distance of 3″ (76 mm).
Plan for the location of the dimmer switch and the GFCI/RCD receptacle. The electrical wires
should enter the power bar 5-1/2″ (127 mm) from the bottom of the mirror.
3" (76 mm) Min
3" (76 mm)
5-1/2"
(127 mm)
Dimmer
Switch
GFCI/RCD
Receptacle
