5. Install the Solenoid
CAUTION: Risk of restricted waterflow. The outlet hose
must not be taut or kinked when installed. Locate the
solenoid valve within 7″ (178 mm) to 8″ (203 mm) of the
faucet centerline.
NOTE: Locate the solenoid valve within 7″ (178 mm) to 8″ (203
mm) from the faucet centerline. Allow adequate clearance for
servicing.
Mount the Bracket
NOTE: The mounting bracket should be secured with two suitable
fasteners (not supplied) based on the type and thickness of the
cabinet or wall material.
Fasten the mounting bracket vertically to the cabinet or wall.

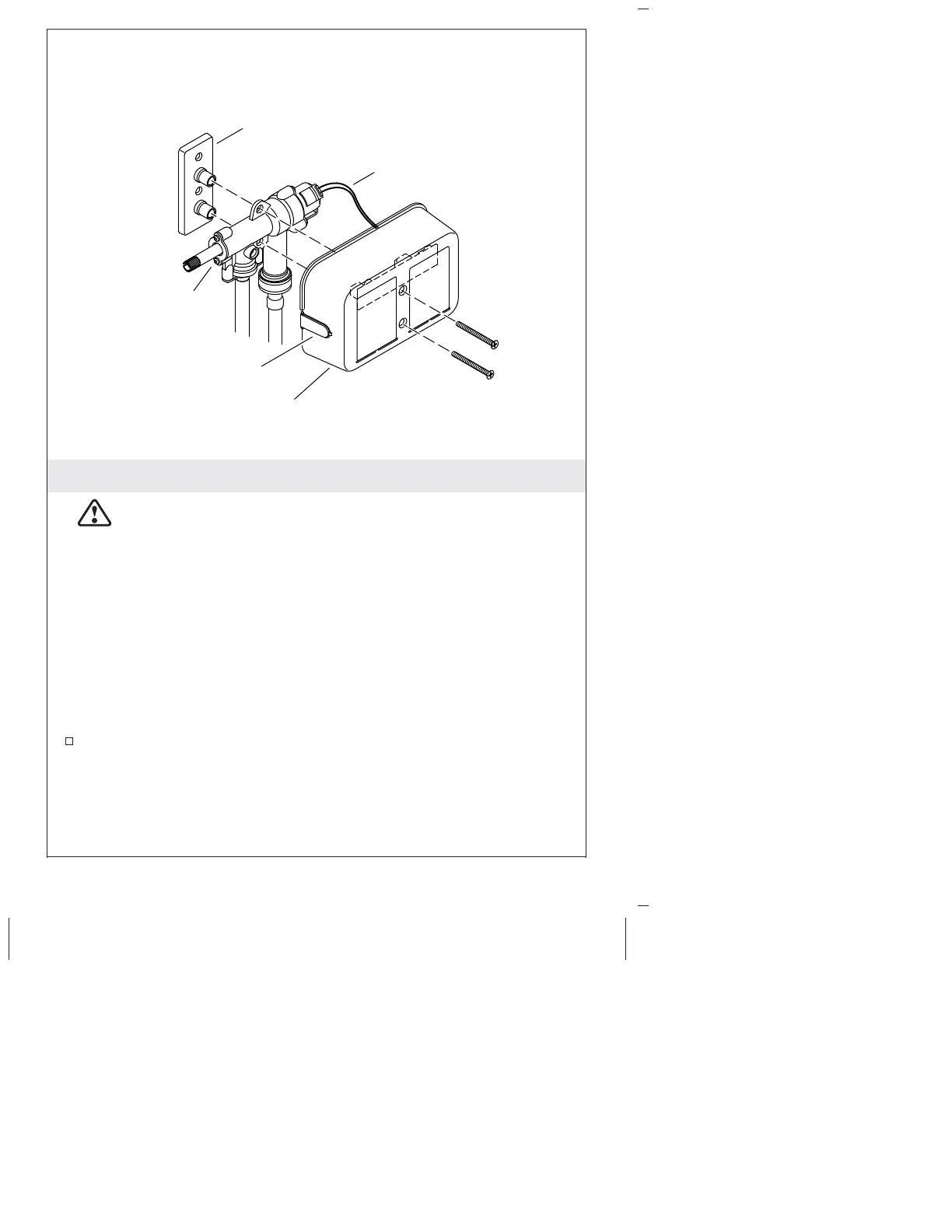

Mount the Solenoid and Cover
NOTE: The solenoid may be positioned to the right or left. Remove
the appropriate tab on the cover.
Solenoid
Wire
Mounting
Bracket
Tab
Cover
Solenoid
Kohler Co. 9 1276182-2-C
