1. Prepare the Site
Install or relocate the water supplies as needed.
Protect the surfaces of the bath/deck during installation.
Ensure that holes drilled into the deck are not oversized. The spout
and valves require adequate base material strength and maximum
contact area with the deck.
Plaster guard diameters are approximately 1–5/8” (4.1cm) for the
valves and 7/8” (2.2cm) for the spout.
NOTE: Reinforcing material may be required if the deck or rim is
thin. Install before proceeding.
NOTE: For installations to be covered with tile, the tile thickness
must not exceed 1–1/4” (3.2cm).

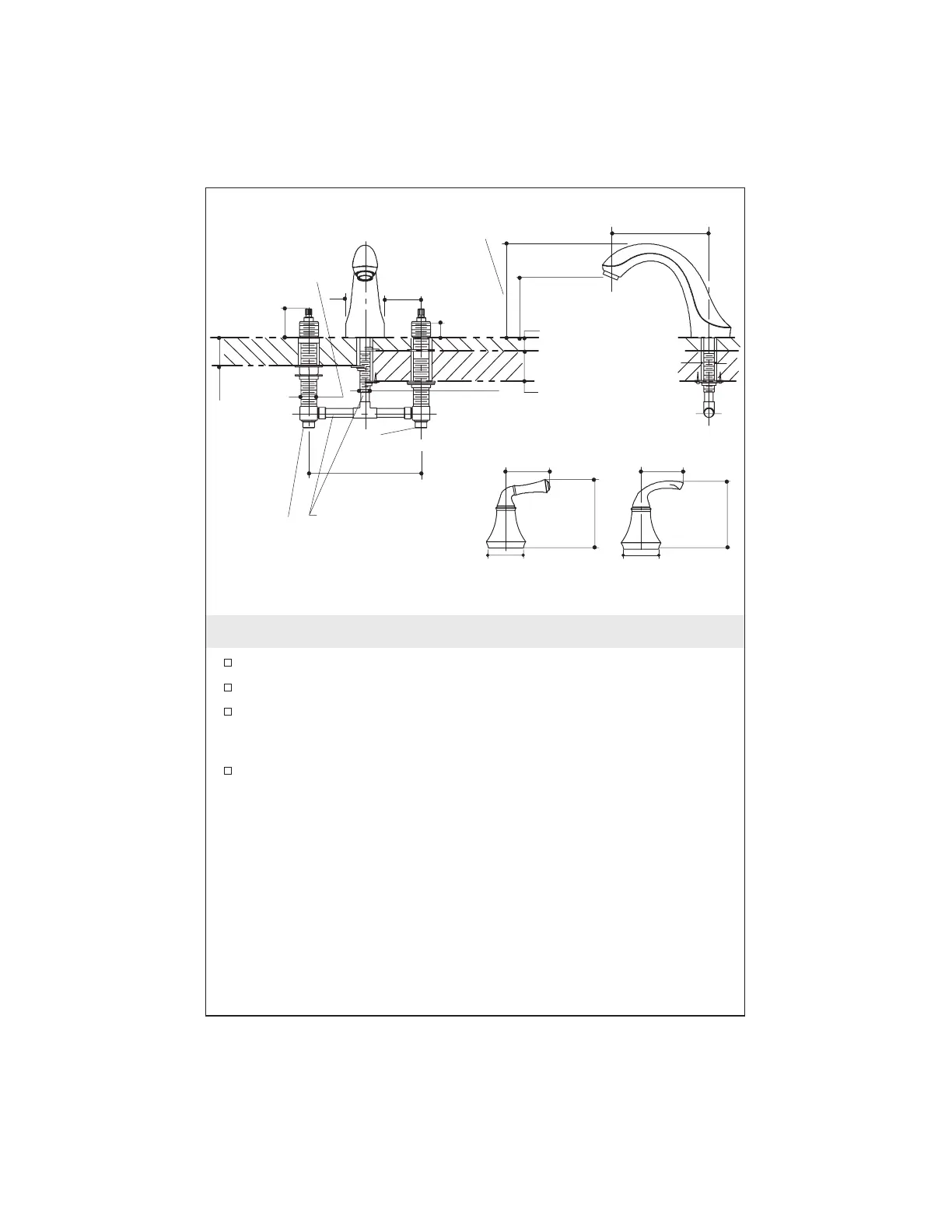

RIM OR DECK MOUNT
INSTALLATION
7" (17.8cm)
6-3/4"
(17.1cm)
1-1/8" D. (2.9cm)
2-13/16" D.
(7.1cm)
ROUGH + FINISHED
DECK MOUNT INSTALLATION
2-3/8" D. (6cm)
TRADITIONAL
2-3/8" D. (6cm)
SCULPTED
7/8" D.
(2.2cm)
3" (7.6cm) 2-7/8" (7.3cm)
4-11/16"
(11.9cm)
4-5/8"
(11.7cm)
2-1/8" (5.4cm) MAX.
ROUGH DECK
5" (12.7cm)
1/4" (6mm) TO
1-1/4" (3.2cm)
MAX. FINISHED
DECK
8" Min. (20.3CM)
5/8" O.D. (1.6cm)
SUPPLIED BY
INSTALLER
5/8" I.D.
(1.6cm)
1/4"
(6mm)
TO 2-1/8"
(5.4cm)
MAX.
RIM OR
DECK
MOUNT
1-13/16"
(4.6cm)
1-1/4"
(3.2cm)
3/4" (1.9cm)
I.D.
1017937-2-A 4 Kohler Co.
