1. Prepare the Site
IMPORTANT! Be sure all center points are level before drilling.
There is no provision for later adjustment if the center points and
resulting pilot holes are not level.
For Multiple-Post Accessories
NOTE: Take into account the length of the accessory components to
determine the required distance between the post center points.
Consult the ″Roughing-In Information″ section for dimensions.
Mark the vertical and horizontal center lines for each post. Use a
level to ensure that all center points are level.
Horizontally align and mark the holes of each wall plate. Set the
wall plate aside.
For Single-Post Accessories
Mark the vertical and horizontal center lines for the post. Consult
the ″Roughing-In Information″ section for dimensions.
Horizontally align and mark the holes of the wall plate. Set the
wall plate aside.
For All Accessories
Select a drill and 5/16” drill bit appropriate for the wall material
you will be drilling through.
Carefully drill a 5/16” hole at all marked pilot hole locations.

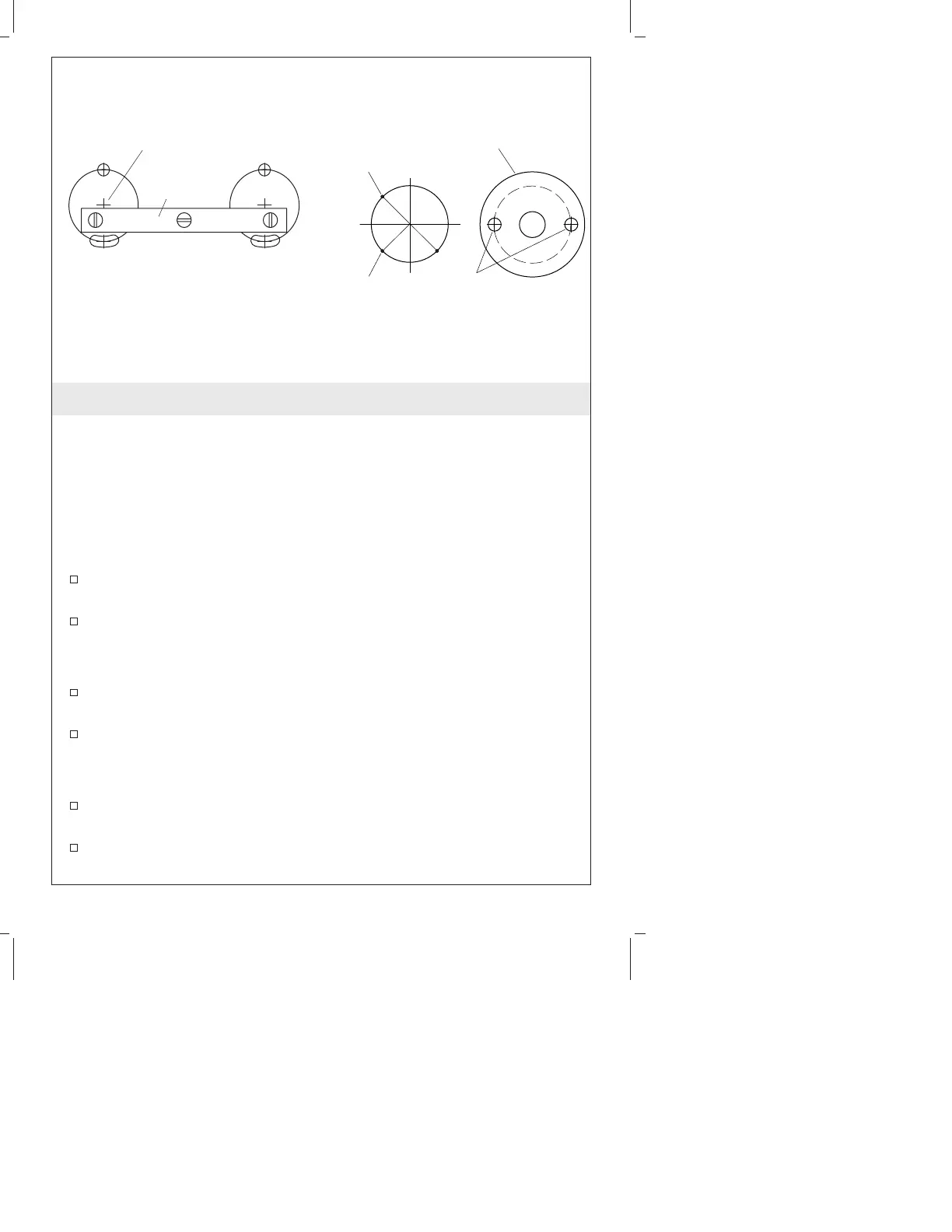

Locate the Wall Plate
Centerpoint
Level
For multiple-post layout only.
Wall Bracket Hole Locations
Wall Bracket
2-5/8"
(6.7 cm) D.
Holes
1-5/16"
(3.3 cm) R.
1008344-2-A 4 Kallista
