Screen 1.2- Power thresholds
T
he 1.2- Power thresholds screen is used to set up to 10
active power thresholds. Threshold 9 is used for load
shed.
1. Threshold reached = green (in this example, thresholds #1 to #4 are reached or exceeded)
2. Thresholds numbered from 1 to 10
3. Setting the threshold in % of the generator power
4. Display of the threshold setting result in kW
5. Entry field for text
1
2
3
4
5

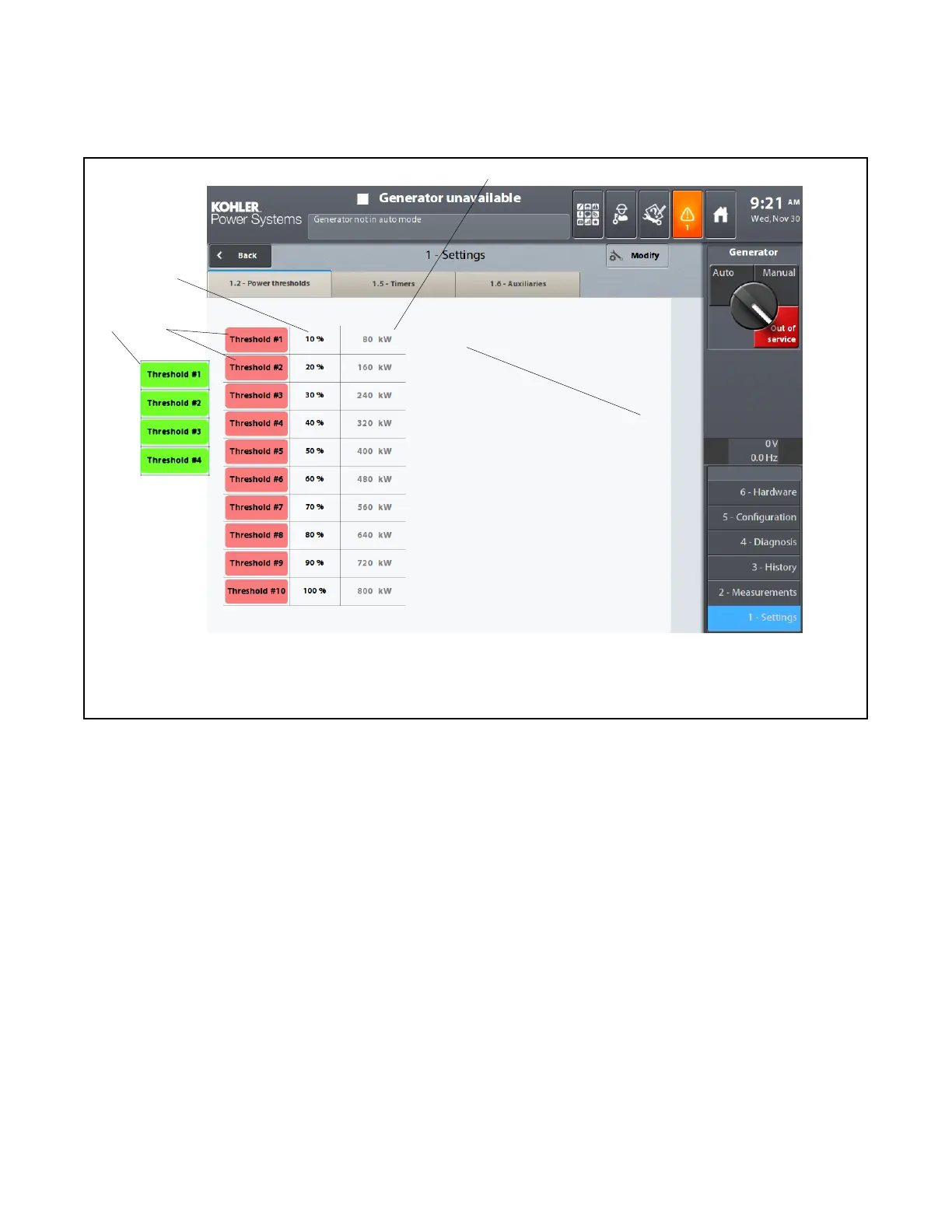

Figure 2-61 P
ower Thresholds Screen
