Kohler KD1250 Operation

TP-7070 8/20 57Section 2 Operation

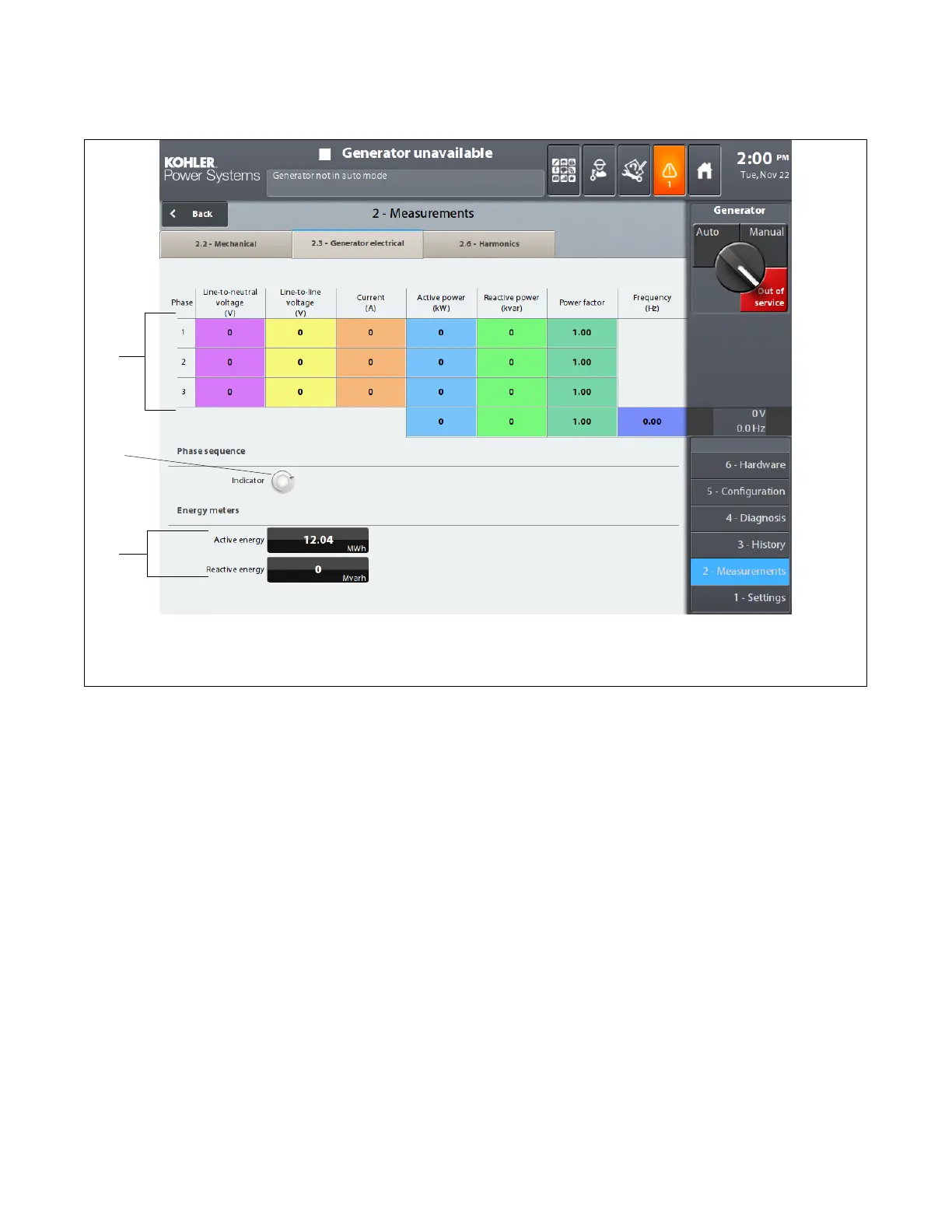

Screen 2.3- Generator electrical
T
he 2.3- Generator electrical screen gives a detailed view of all the electrical values for the associated generator (on
generator HMI only).
1. Display for 3 phases
2. Phase sequence indication : Green = Correct; Red = Inverse; Off = Not Activated
3. Active and reactive energy metering
3
2
1
Figure 2-65 Generator Electrical Screen
