Kohler KDI 3404 TM

7
82
_04
Fig. 7.20
M N
Fig. 7.18
Fig. 7.19
D E
H
G
F
ED0053030410

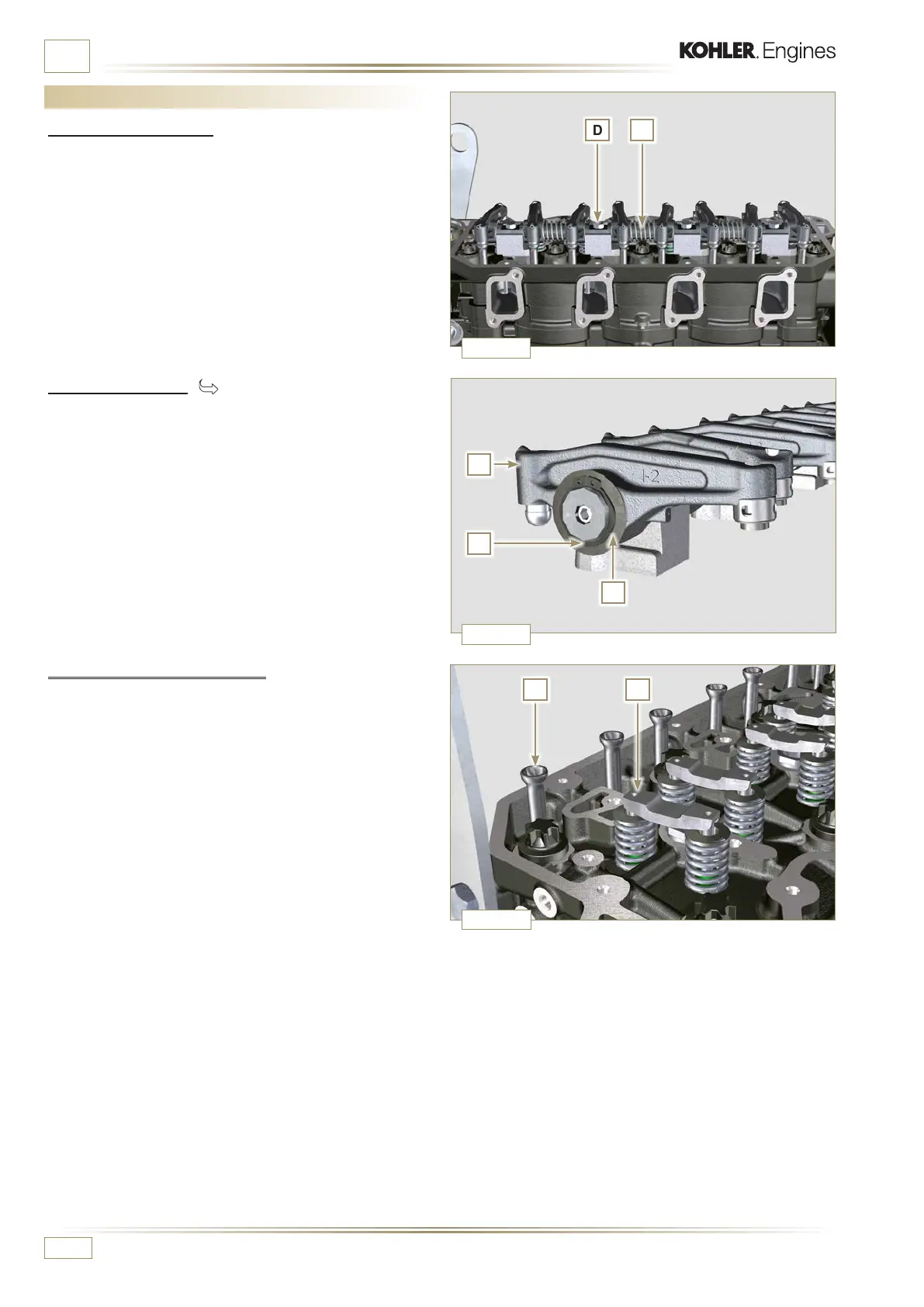

INFORMATION FOR DISASSEMBLY
7.10.2 Valve rods and bridges
1 - Remove the valve bridges M.
2 -
Remove the rocker arm control rods N.
7.10.1.1 Rocker arm ( )
1 - Remove the retainer ring F.
2 - Remove the shoulder rings G.
3 - Remove the rocker arms H.
7.10 Cylinder head unit disassembly
7.10.1 Rocker arm pin
1 - Undo the screws D.
2 -
Remove the rocker arm pin unit E.
