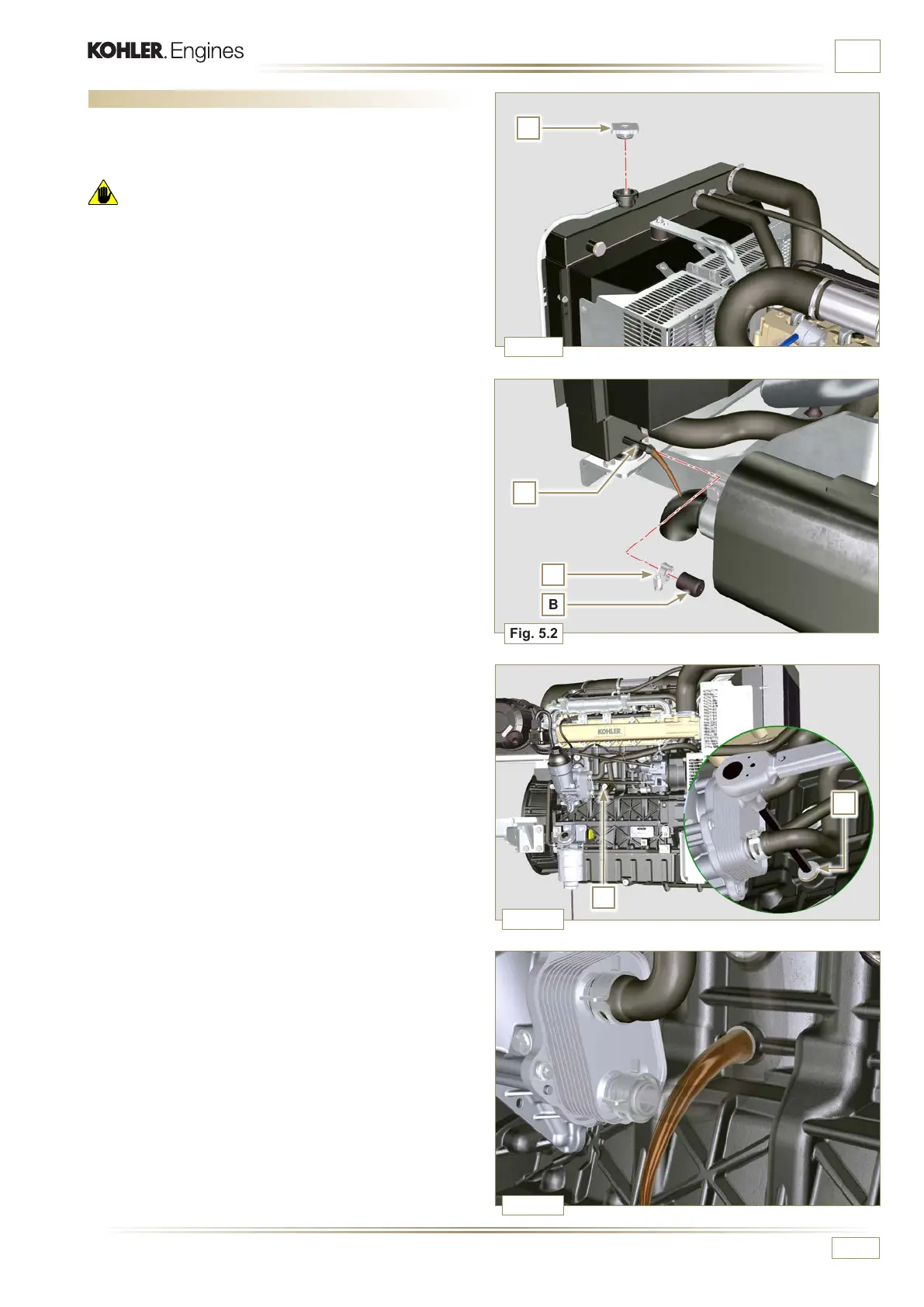

INFORMATION REGARDING DISCHARGE OF LIQUIDS
5.1 Coolant
NOTE:
Component not necessarily supplied by KOHLER.
The representation of the radiator is purely indicative.
Warning
• Before proceeding with operation, carefully read Par. 3.3.2.
• Presence of steam pressurized coolant danger of burns.
1 - Undo the cap A carefully (circuit under pressure).
2 -
Loosen clamp G and remove cap B from exhaust pipe C,
draining the liquid into an appropriate container and refer to
Par. 3.6.
3 -
Undo cap F to drain all liquid from the system contained in
the engine crankcase ducts into an appropriate container
and refer to Par. 3.6.
