Kohler MAGNUM M18

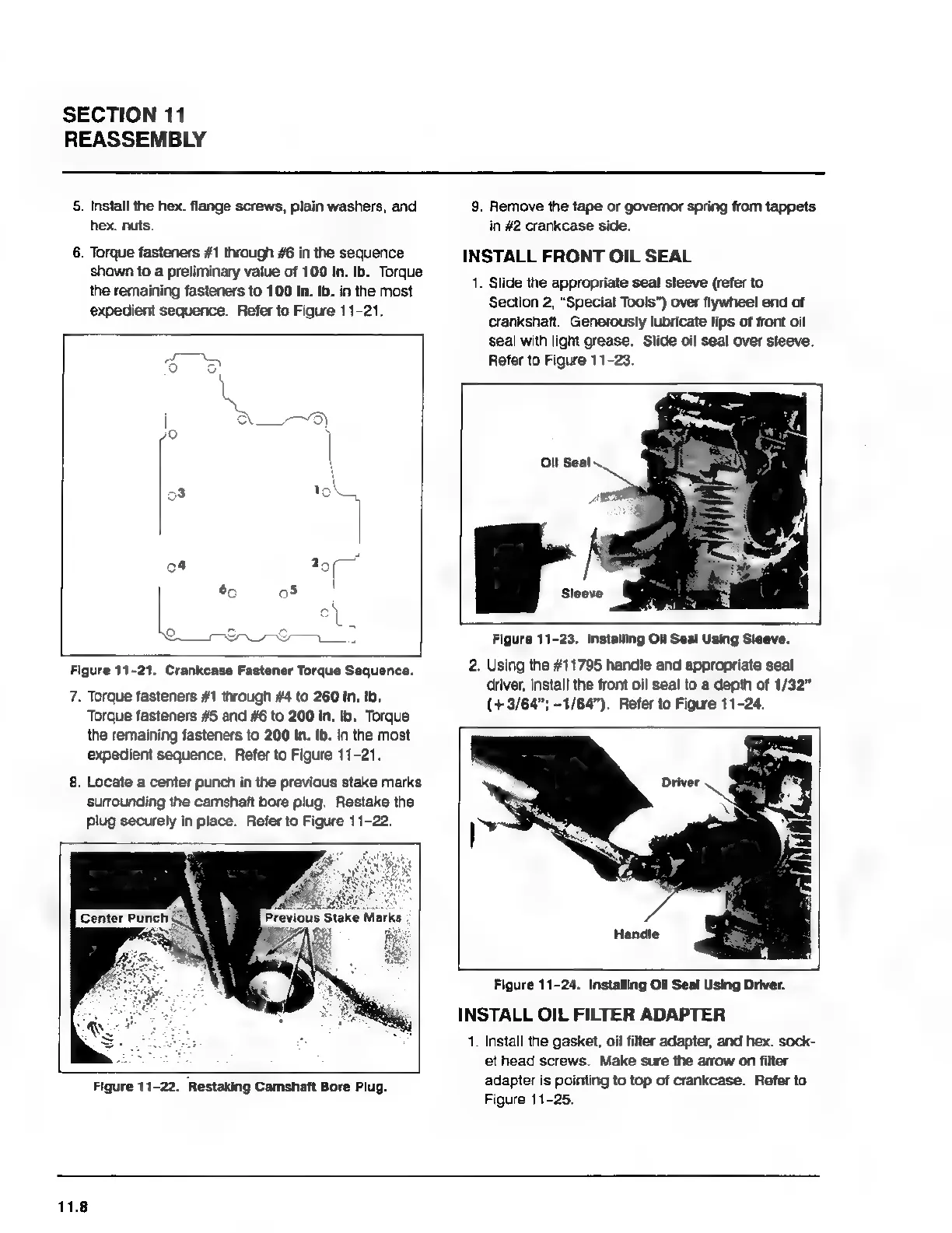

SECTION 11
REASSEMBLY
§. Install the hex. flange screws, plain washers, and
hex. nuts.
6. Torque fasteners #1 through #6 in the sequence
shown to a preliminary vatue of 100 In. Ib. Torque
the remaining fasteners to 100 In. Ib. in the most
expedient sequence. Refer to Figure 11-21.
Figure 11-21. Crankcase Fastener Torque Sequence.
7. Torque fasteners #1 through #4 to 260 In. ib.
Torque fasteners #5 and #6 to 200 In. Ib. Torque
the remaining fasteners to 200 In. Ib. in the most
expedient sequence. Refer to Figure 11-21.
8. Locate a center punch in the previous stake marks
surrounding the camshaft bore plug. Restake the
plug securely in place. Refer to Figure 11-22.
Center Punch ©
Figure 11-22. Restaking Camshaft Bore Plug.
9. Remove the tape or govemor spring from tappets
in #2 crankcase side.
INSTALL FRONT OIL SEAL
1. Slide the appropriate seal sleeve (refer to
Section 2, "Special Tools") over flywheel end of
crankshaft. Generously lubricate lips of front oil
seal with light grease. Slide oil seal over sleeve.
Refer to Figure 11-23.
Sleeve
Figure 11-23. Installing Oil Seal Using Sleeve.
2. Using the #11795 handle and appropriate seal
driver, install the front oil seal to a depth of 1/32"
( 3/64"; -1/64"). Refer to Figure 11-24.
Handle
Figure 11-24. Installing Ой Seal Using Driver.
INSTALL OIL FILTER ADAPTER
1. Install the gasket, ой filter adapter, and hex. sock-
et head screws. Make sure the атом on filter
adapter is pointing to top of crankcase. Refer to
Figure 11-25.
