Kohler MAGNUM M18

SECTION 6A
FUEL SYSTEMS AND GOVERNORS
Lever
Truss Head Spring Washer
Nylock Screw
TN Locking Tab
Throttle
Control Friction Washers
Throttle Linkage
Self-Tapping
Screw |
Н
4 1
Throttle 7 1
Stop
Plate
Intake
Manitold
Intake
Elbow
High Speed
Hex
Cap
Screw
Stop
Bracket
High Speed
Stop Tab
Speed Control
Lever
THROTTLE CONTROL ASSEMBLY
intake Manifold
Knob
Carburetor
Choke Lever
Choke
Linkage Hole
Hex Head/Threads
Self-Tapping
Screw
Clamp
CHOKE CONTROL ASSEMBLY

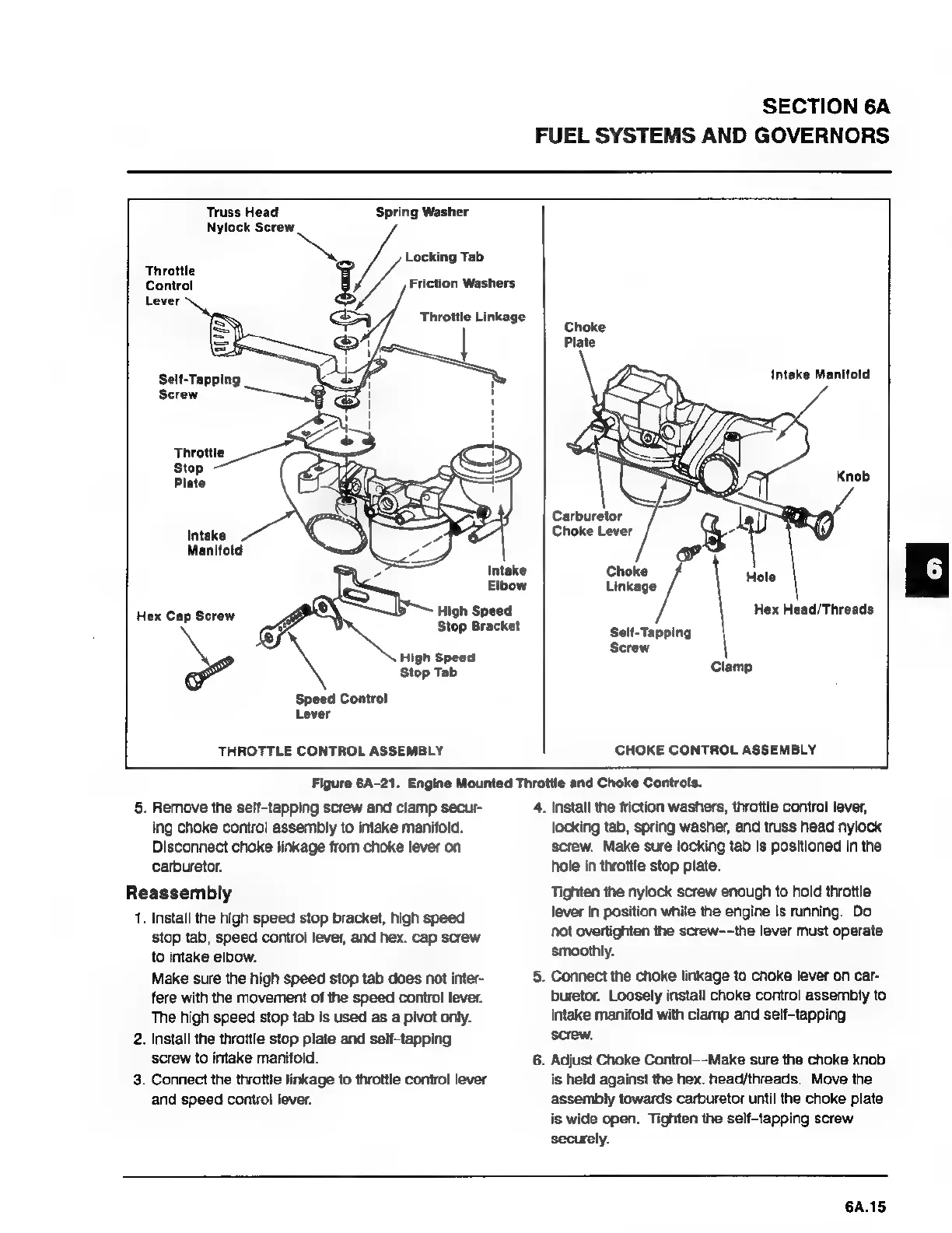

Figure 6A-21. Engine Mounted Throttle and Choke Controls.
5. Remove the self-tapping screw and clamp secur-
ing choke control assembly to intake manifold.
Disconnect choke linkage from choke lever on
carburetor.
Reassembly
1. Install the high speed stop bracket, high speed
stop tab, speed control lever, and hex. cap screw
to intake elbow.
Make sure the high speed stop tab does not inter-
fere with the movement of the speed control lever.
The high speed stop tab is used as a pivot only.
. Install the throttle stop plate and self-tapping
screw to intake manifold.
3. Connect the throttle linkage to throttle control lever
and speed control lever.
4. Install the friction washers, throttle control lever,
locking tab, spring washer, and truss head nylock
screw. Make sure locking tab is positioned in the
hole in throttle stop plate.
Tighten the nylock screw enough to hold throttle
lever In position while the engine is running. Do
not overtighten the screw--the lever must operate
smoothly.
. Connect the choke linkage to choke lever on car-
buretor. Loosely install choke control assembly to
intake manifold with clamp and self-tapping
Screw.
. Adjust Choke ControlI--Make sure the choke knob
is held against the hex. head/threads. Move the
assembly towards carburetor until the choke plate
is wide open. Tighten the self-tapping screw
securely.
6A.15
