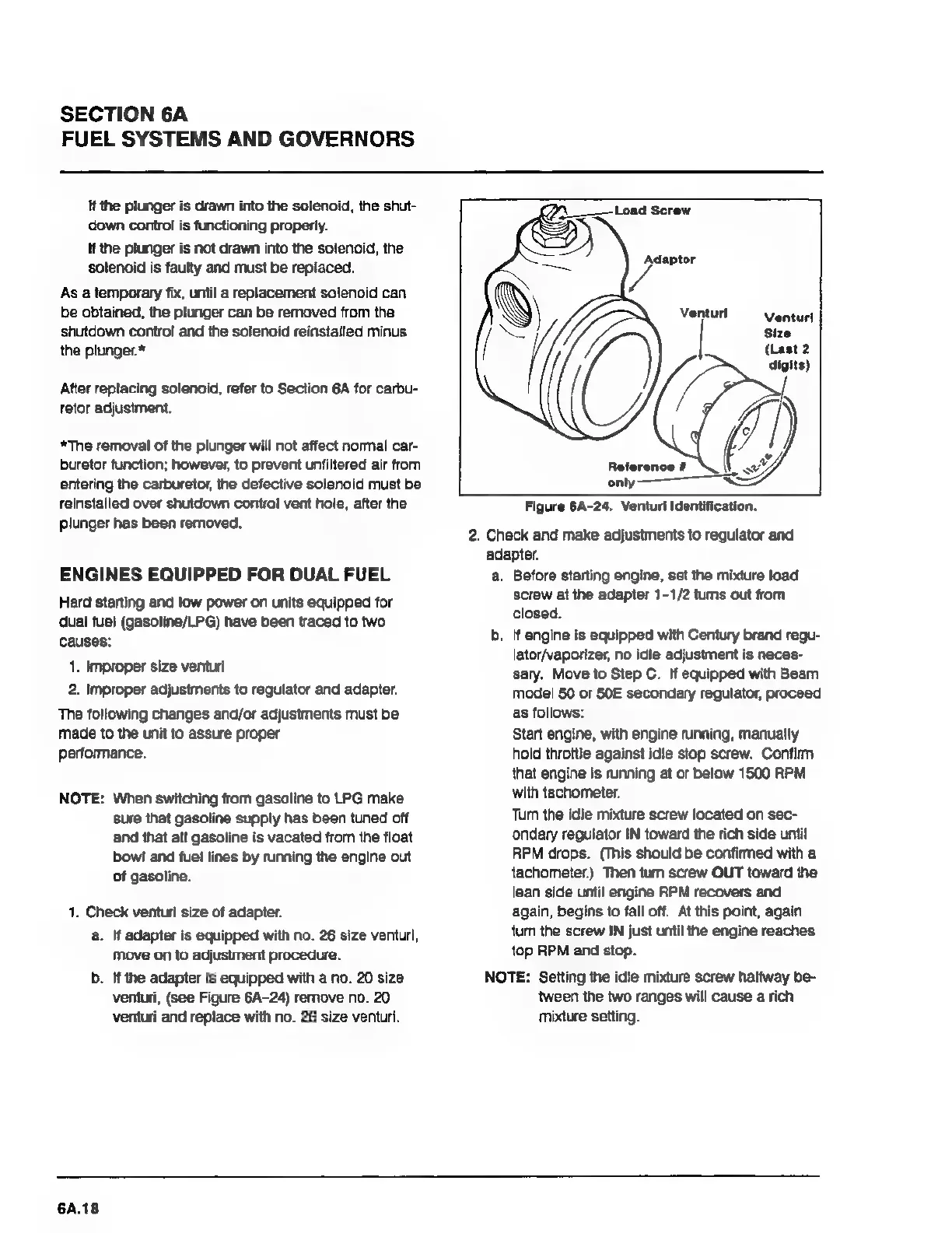

SECTION
6A
FUEL
SYSTEMS
AND
GOVERNORS
If
the
plunger
is
drawn
into
the
solenoid,
the
shut-
down
control
is
functioning
properly.
If
the
plunger
is
not
drawn
into
the
solenoid,
the
solenoid
is
faulty
and
must
be
replaced.
As
a
temporary
fix,
until
a
replacement
solenoid
can
be
obtained,
the
plunger
can
be
removed
from
the
shutdown
control
and
the
solenoid
reinstalled
minus
the
plunger.*
After
replacing
solenoid,
refer
to
Section
6A
for
carbu-
retor
adjustment.
*The
removal
of
the
plunger
will
not
affect
normal
car-
buretor
function;
however,
to
prevent
unfiltered
air
from
entering
the
carburetor,
the
defective
solenaid
must
be
reinstalled
over
shutdown
control
vent
hole,
after
the
plunger
has
been
removed.
ENGINES
EQUIPPED
FOR
DUAL
FUEL
Hard
starting
and
low
power
on
units
equipped
for
dual
fuel
(gasoline/LPG)
have
been
traced
to
two
causes:
1.
Improper
size
venturi
2.
Improper
adjustments
to
regulator
and
adapter.
The
following
changes
and/or
adjustments
must
be
made
to
the
unit
to
assure
proper
performance.
NOTE:
When
switching
from
gasoline
to
LPG
make
sure
that
gasoline
supply
has
been
tuned
off
and
that
all
gasoline
is
vacated
from
the
float
bow!
and
fuel
lines
by
running
the
engine
out
of
gasoline.
1.
Check
venturi
size
of
adapter.
a.
If
adapter
is
equipped
with
no.
26
size
venturi,
move
on
to
adjustment
procedure.
b.
If
the
adapter
is
equipped
with
a
no.
20
size
venturi,
(see
Figure
6A-24)
remove
no.
20
venturi
and
replace
with
no.
26
size
venturi.
64.18
УА
—Load
Screw
Adaptor
Venturi
Venturi
Size
(Last
2
digits)
Reference
#
only
Figure
6A-24.
Venturi
Identification.
2.
Check
and
make
adjustments
to
regulator
and
adapter.
a.
Before
starting
engine,
set
the
mixture load
screw
at
the
adapter
1-1/2
tums
out
from
closed.
b.
If
engine
is
equipped
with
Century
brand
regu-
lator/vaporizer,
no
idle
adjustment
is
neces-
sary.
Move
to
Step
C.
If
equipped
with
Beam
model
50
or
50Е
secondary
regulator,
proceed
as
follows:
Start
engine,
with
engine
running,
manually
hold
throttle
against
idle
stop
screw.
Confirm
that
engine
is
running
at
or
below
1500
RPM
with
tachometer.
Tum
the
idle
mixture
screw
located
on
sec-
ondary
regulator
IN
toward
the
rich
side
until
RPM
drops.
(This
should
be
confirmed
with
a
tachometer.)
Then
turn
screw
OUT
toward
the
lean
side
until
engine
RPM
recovers
and
again,
begins
to
fall
off.
At
this
point,
again
turn
the
screw
IN
just
until
the
engine
reaches
top
RPM
and
stop.
NOTE:
Setting
the
idle
mixture
screw
halfway
be-
tween
the
two
ranges
will
cause
a
rich
mixture
setting.
