Kohler PRO6.4

11TP-7088 6/17 KohlerPower.com
Electrical System

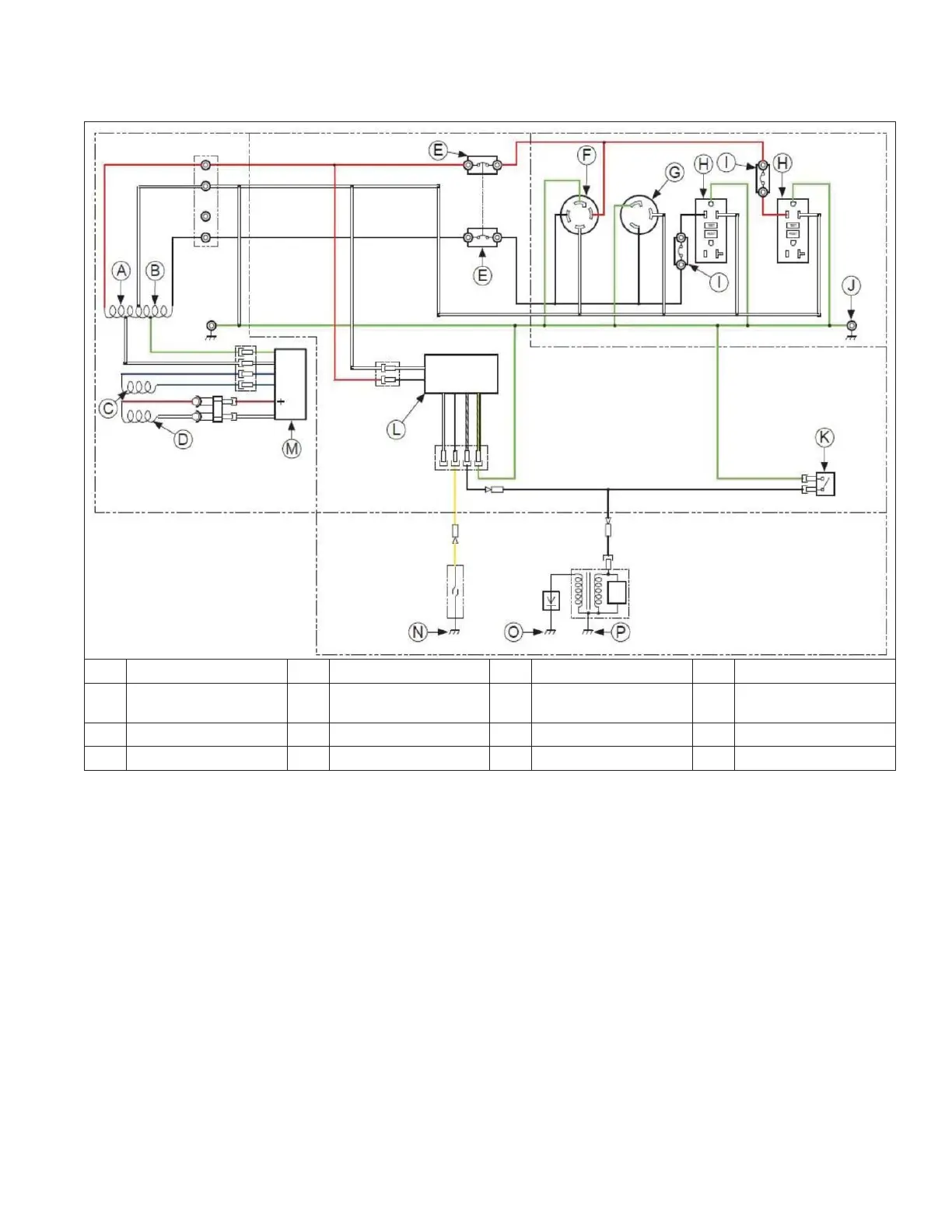

PRO9.0 Wiring Diagram
A Main Winding 1 B Main Winding 2 C Exciter Field Coil D Sub Coil
E Circuit Breaker F
240/120V/30A
Electrical Socket
G
120V/30A Electrical
Socket
H GFCI Receptacle
I Circuit Protector 20A J Ground Terminal K Engine Switch L Maintenance Minder
M AVR N Oil SentryTM O Spark Plug P Ignition Coil
