TP-6905 7/1814 Section 1 Service Views
5
1. Oil check (dipstick)
2. Oil fill location (on valve cover)
3. Exhaust outlet
4. Enclosure locking key (shipping location only)
5. Spark plugs (qty. 4)
6. Fuel inlet (1 in. NPT)
7. Oil cooler adapter
8. Battery
9. Lube oil filter
10. Customer load lead access
11. Customer connection access panel
12. Line circuit breaker
13. Generator set master control buttons (on RDC2 controller)
14. Nameplate location
15. RDC2 controller
16. Fan fuses
17. Cooling air inlet (remove this panel to access coolant drain)
18. See cooling system detail
19. Access to coolant fill (on roof)
20. Turbocharger
21. Air-fuel mixer
22. Air cleaner
23. Fuel pressure regulator
24. Fuel solenoid valves (located behind the fuel regulator)
25. Oil drain
26. Coolant drain
27. Fans (qty. 3)
28. Charge air cooler (CAC, located between fan and radiator)
29. Radiator
30. Pressure cap (engine coolant fill)
31. Coolant overflow tube
32. Temperature sensor
33. Coolant overflow bottle
34. MAP sensor
35. Oil cooler hoses
36. Oil cooler (at bottom of radiator)
ADV-8663
12
16
22
13
29
24
6
17
15
9
10
11
18
1
8
Cooling System Detail
27
27
31
30
26
33
3
19
4
SERVICE SIDE
NON-SERVICE SIDE
GM92075
2
21
23
25
20
28
14
32
34
35
36
7

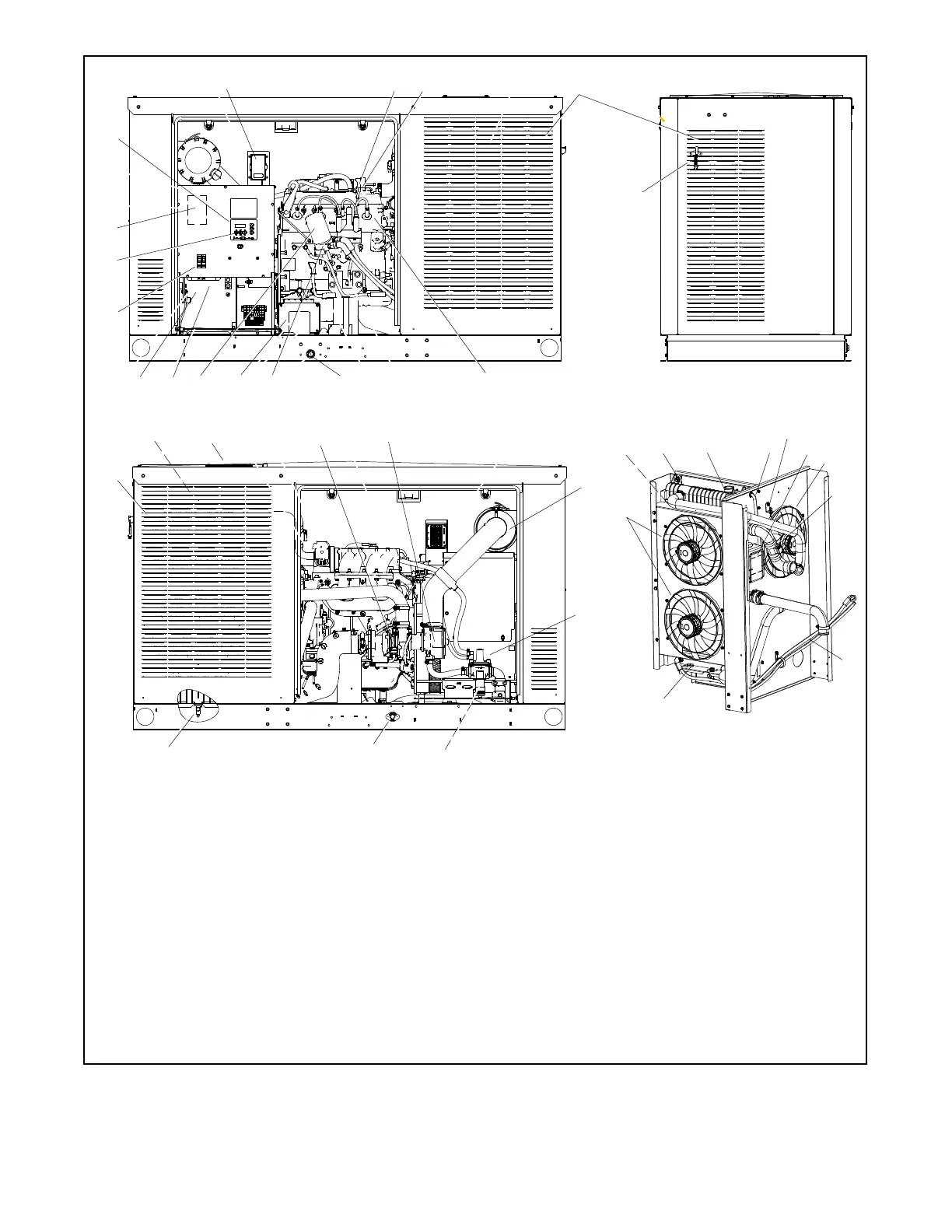

Figure 1-2 30RCL and 38RCLB Service Views for Maintenance
