Kohler Rite-Temp K-8304-K User Manual

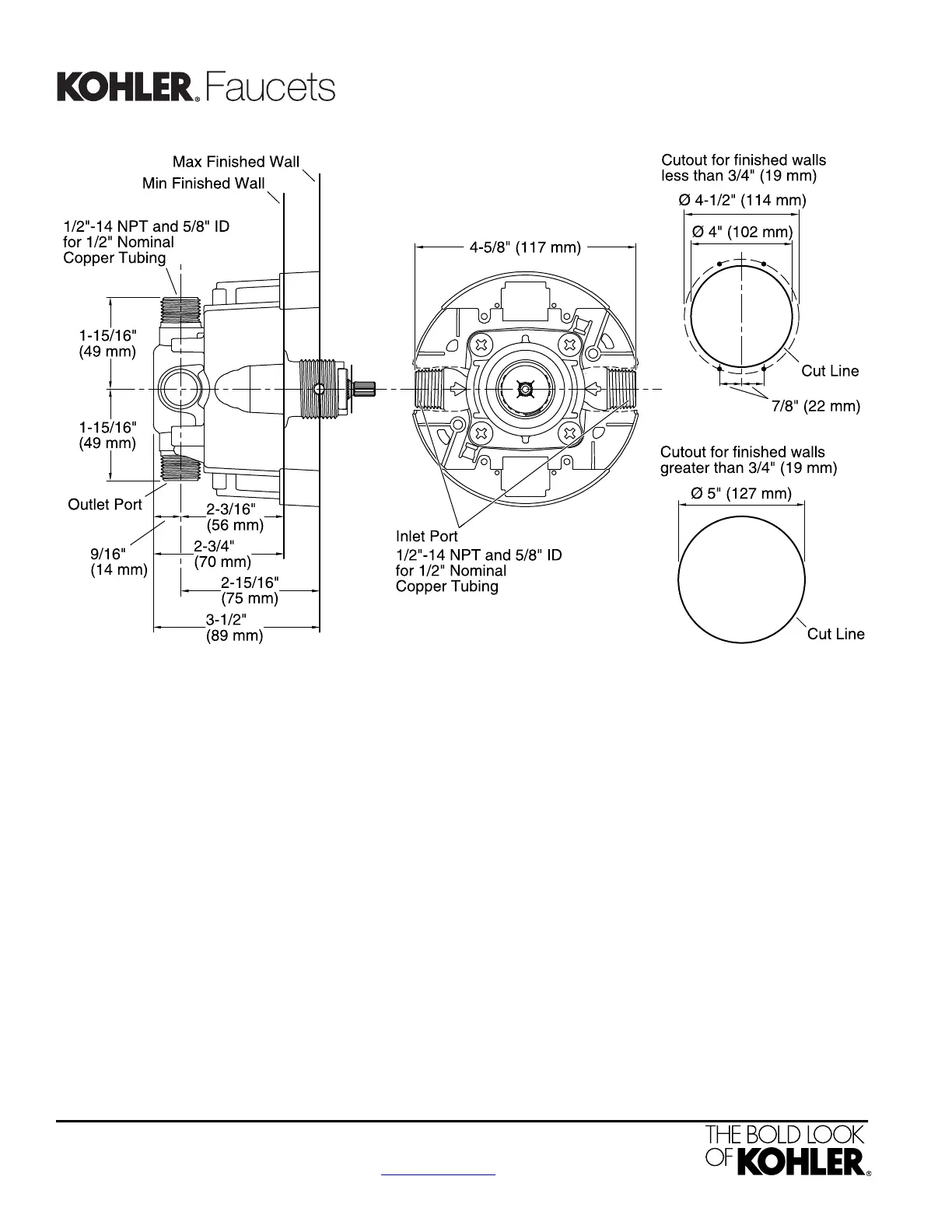

Outlet Port
Notes
Technical Information
Install this product according to the installation
guide.
All product dimensions are nominal.
Shower Valve:
Avoid cross-flow conditions. Do not install shut-off
device on either valve outlet.
20 psi (1.4 bar)Min. pressure IN:
Machined-brassValve body:
Cap the shower outlet if deck-mount spout,
diverter, or handshower is connected to the spout
outlet.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and wall-mount spout.
For finished walls greater than 3/4" (19 mm) and
less than 1-1/2" (38 mm), install support(s) 2" (51
mm) from the stud face.
For finished walls greater than 1-1/2" (38 mm),
install support(s) 3" (76 mm) from the face of the
finished wall.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-13-2018 17:00
Rite-Temp
®
Valve Body & Cartridge Kit Complete
K-8304-K

Kohler Rite-Temp K-8304-K Specifications

General

Brand	Kohler
Model	Rite-Temp K-8304-K
Category	Control Unit
Language	English
