Kohler STANCE - Page 7

-7-
STEP
11
STEP
10

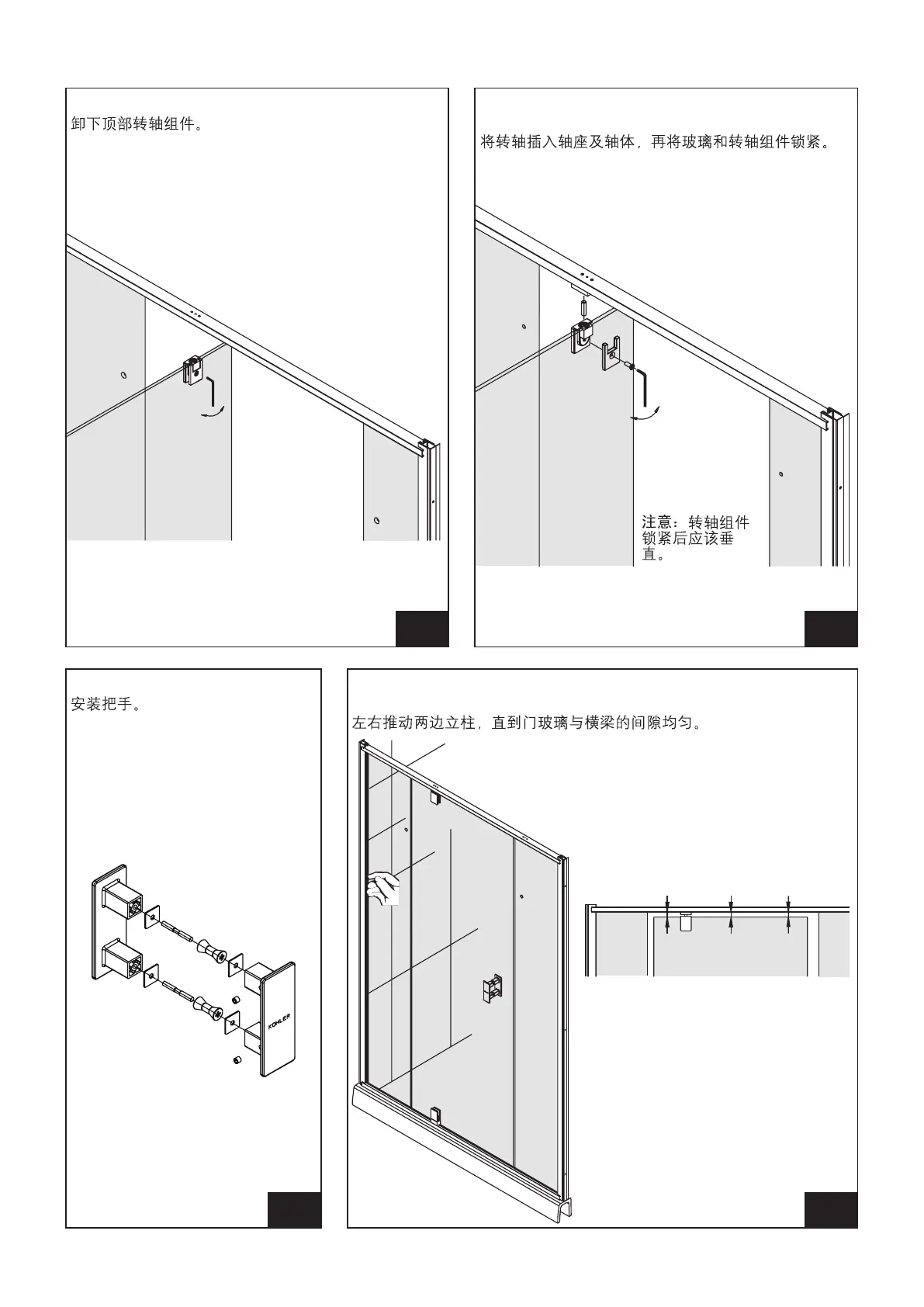

Remove the pivot pin assembly on top.
Insert the pivot pin both into the base and the body.
Then tighten the glass and the pivot pin assembly.
Note: The pivot
pin assembly
should be
vertical after
being tightened.
STEP
13
STEP
12
Push the wall frames at both sides to make the gap even between the
glass and the top and bottom frames.
Install the handle.
1160469-T01-A
